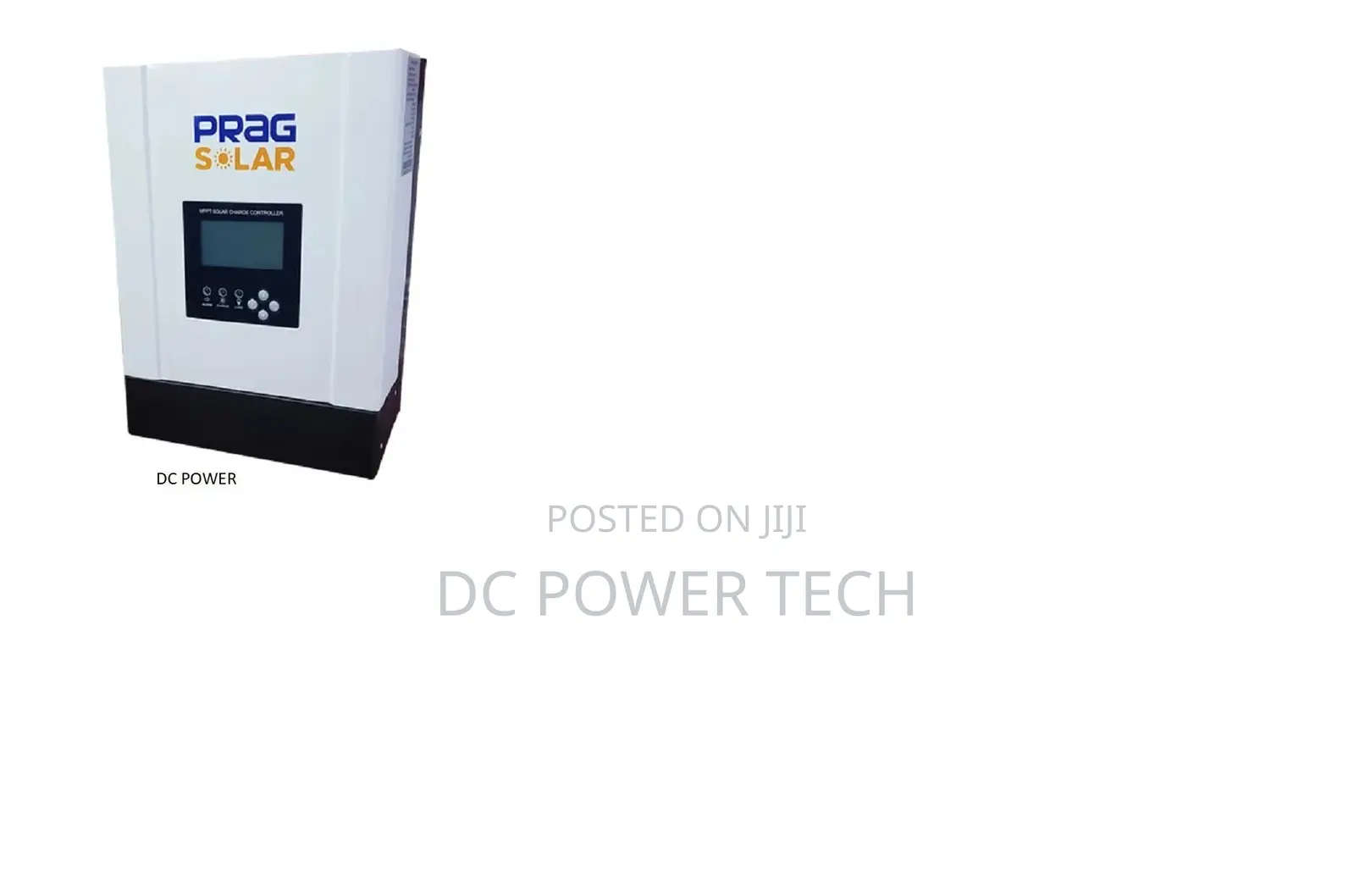

PRAG 40A MPPT Solar Charge Controller

Charge Controllers

Type

1400watts

Maximum PV Power

12 V, 24 V, 36 V, 48 V

Controller Rated Voltage

40amps

Maximum Controller Current

Brand New

Condition

Store address

Lagos State • Ikeja

15 Akinremi street anifowose Ikeja Lagos

Closed now

• Mon - Sat, 09:00-18:00

Model sch-40a-h solar system voltage 12v/24v/36v/48v auto work electrical pv operating voltage 18~150vdc@12v 35~150vdc@24v 50~150vdc@36v 60~150vdc@48v max. pv input power 12v 600w 24v 1200w 36v 1700w 48v 2300w rated input current 40a rated dc load current 40a self consumption 2w max.conversion efficiency 97.5% protection pv array short circuit, over charging,battery reverse polarity,output short circuit battery charging battery type sealed gel agm flooded lithium battery charge algorithm 4 stage: bulk, absorption, float, equalize charging bulk charge voltage sealed: 14.4v agm 14.2v gel:14.2v flooded:14.6v user defined:10-15v float charge voltage sealed/gel/agm:13.8v flooded:13.7v user defined:10-15v equalize charge voltage sealed 14.6v agm:14.8v flooded:14.9v load disconnect voltage 10.5v ~12v adjustable low voltage reconnect voltage 12.5v temperature compensation 5mv/°c/2v with bts communication
