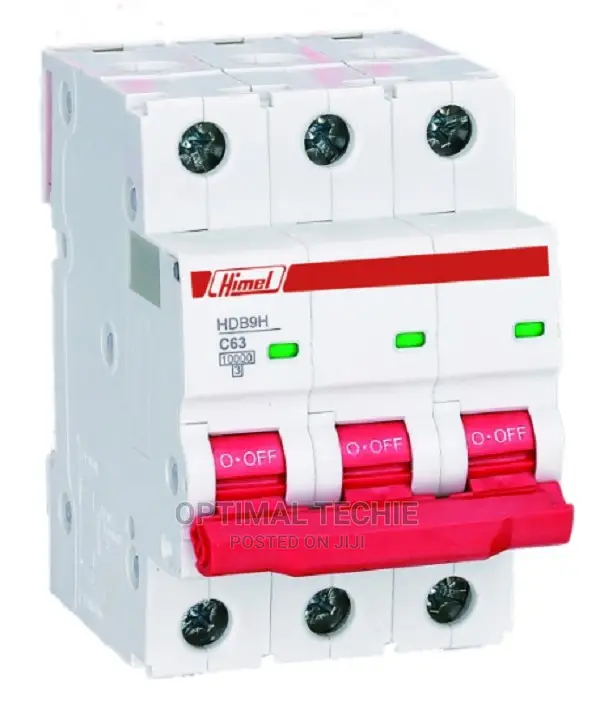

Himel AC Circuit Breaker 3P 32a-63a

+1

1

Circuit Breakers & Disconnectors

Type

Other

Brand

3

Number of Poles

Brand New

Condition

Store address

Lagos State • Ikeja

3 Olayiwola street, off Kudirat Abiola way, Oregun, Ikeja

Open

• Mon - Sat, 09:00-17:00

Range of product HDB3w Product or component type Miniature circuit-breaker Device application Isolation Control Poles description 3P [In] rated current 32 A Complementary [Ue] rated operational voltage 415 V AC 50/60 Hz Breaking capacity 4.5 kA Dielectric test voltage 2.0 kV 50/60 Hz 1 min [Uimp] rated impulse withstand voltage 4.0 kV Magnetic tripping limit 10... 14 x In Curve code D [Ui] rated insulation voltage 250.0 V between phase and ground 500.0 V between phases Suitability for isolation Yes Mounting support 35 mm DIN rail Protection type Overload protection Short-circuit protection Cable entry Top Bottom Mechanical durability 25000 cycles Electrical durability 6000 cycles
