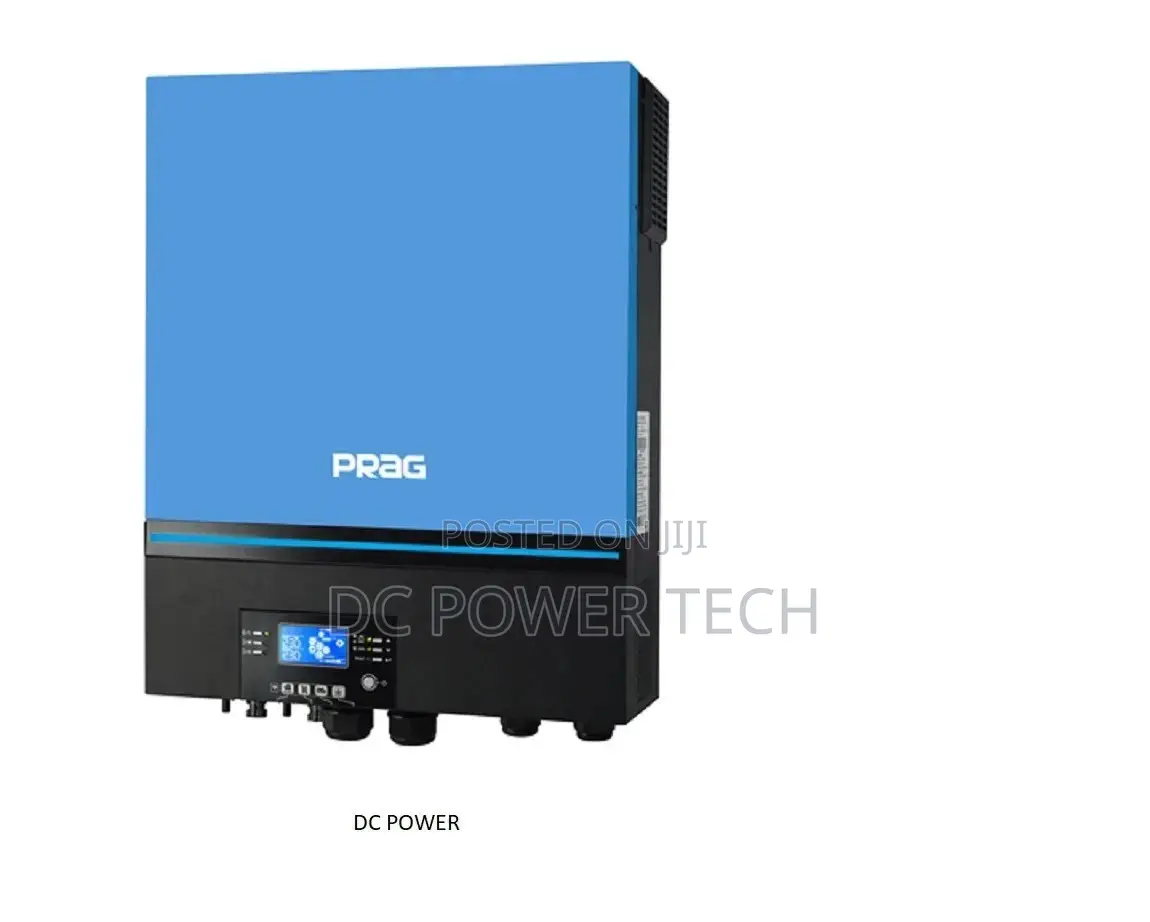

7.2kw-48v Adv Modular Solar Inverter
Solar Inverters
Type
7.2kVA
Inverter Power
120amps
Inverter Rated Current
48 V
Inverter Voltage
Brand New
Condition
Store address
Lagos State • Ikeja
15 Akinremi street anifowose Ikeja Lagos
Closed
• Mon - Sat, 09:00-18:00
Specifications
inverter output
model 7.2k-48
power rating 7200w
input
voltage 230 vac
selectable voltage range 170 – 280 vac (for personal computer); 90-280 vac (for home appliances)
frequency range 50/60 hz (auto sensing)
output
ac voltage regulation (batt. mode) 230 vac ±5%
surge power 15000 va
efficiency (peak) 90% – 93%
transfer time 15 ms (for personal computers); 20 ms (for home appliances)
waveform pure sine wave
battery
battery voltage 48 vdc
floating charge voltage 54 vdc
overcharging protection 63 vdc
solar charger & ac charger
solar charger type mppt
maximum pv array open circuit voltage 500 vdc
maximum pv array power 8000 w (4000w *2)
mppt range @ operating voltage 90 vdc ~450 vdc
maximum solar charge current 80 a
maximum ac charge current 80 a
maximum charge current 80 a
physical
dimension, d x w x h (mm) 147.4 x 432.5 x 553.6
net weight (kgs) 18.4
communication port usb/rs232/rs485/bluetooth/dry-contact
