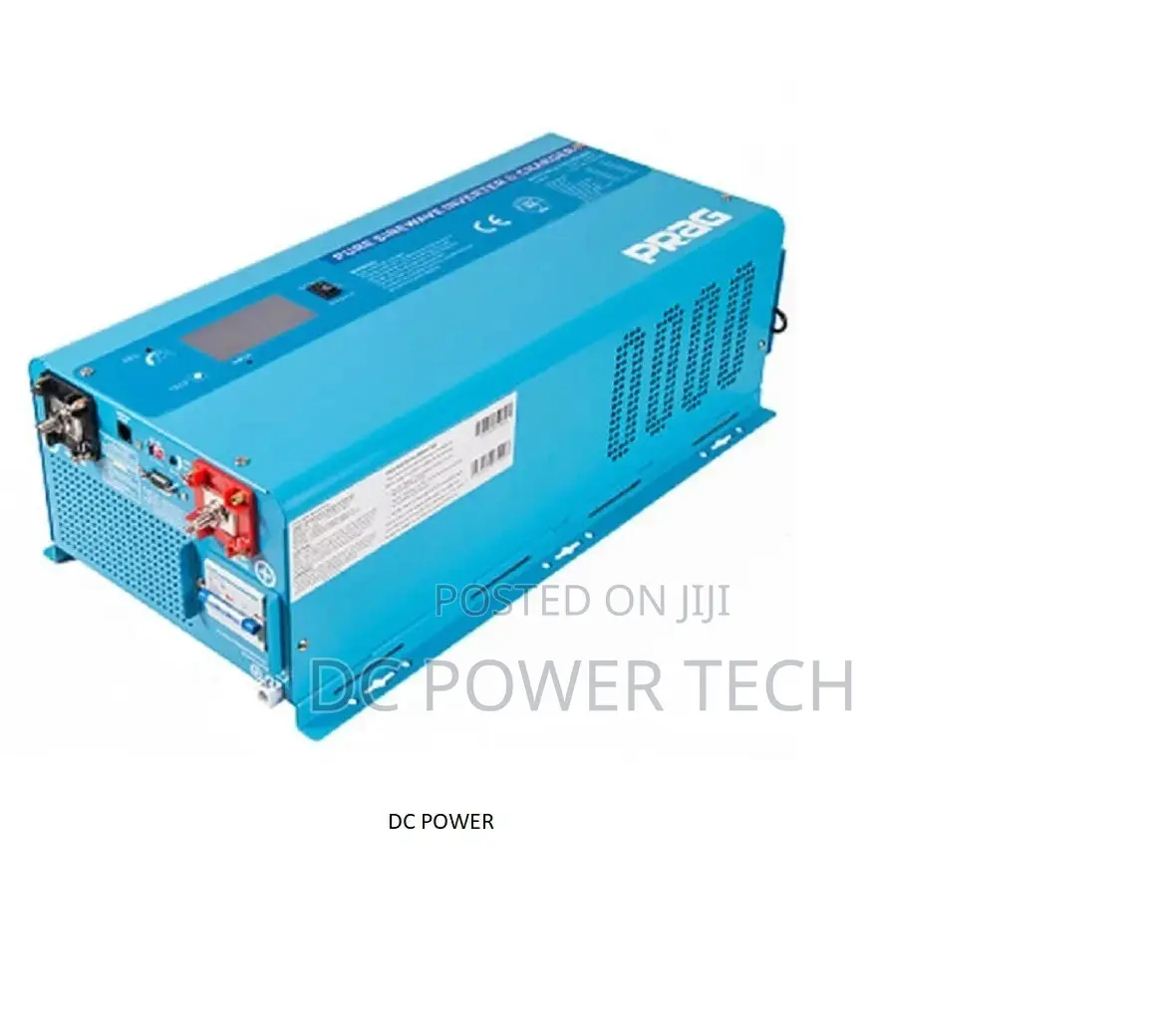

4kva-24v Pure Sine Wave Inverter- Wall Mount
Power Inverters
Type
Quality
Brand
4kW
Power
24V
Inverter Voltage
Yes
USB Port
Brand New
Condition
Store address
Lagos State • Ikeja
15 Akinremi street anifowose Ikeja Lagos
Closed
• Mon - Sat, 09:00-18:00
Specifications
inverter output
model pt-inv-4kva 24v-color led, wall-h
continuous output power 3000w
surge rating(20s) 9000w
capable of starting electric motor 3hp
output waveform pure sine wave/same as input(bypass mode)
nominal efficiency >88%(peak)
line mode efficiency >95%
power factor 0.9-1.0
nominal output voltage rms 100-110-120vac / 220-230-240vac
output voltage regulation ±10% rms
output frequency 50/60hz ± 0.3hz
short circuit protection yes, current limit function (fault after 1sec)
typical transfer time 10ms(max)
thd < 10%
dc input
nominal input voltage 12.0vdc
( *2 for 24vdc, *4 for 48vdc)
minimum start voltage 10.0vdc
low battery alarm 10.5vdc / 11.0vdc
low battery trip 10.0vdc / 10.5vdc
high voltage alarm & fault 16.0vdc
high dc input recovery 15.5vdc
low battery voltage recover 13.0vdc
idle consumption-search mode < 25 w when power saver on
charge
input voltage range wide: 90~135vac / 164~243vac
narraw: 100~135vac / 194~243vac
input frequency range narrow: 47-55±0.3hz fo
