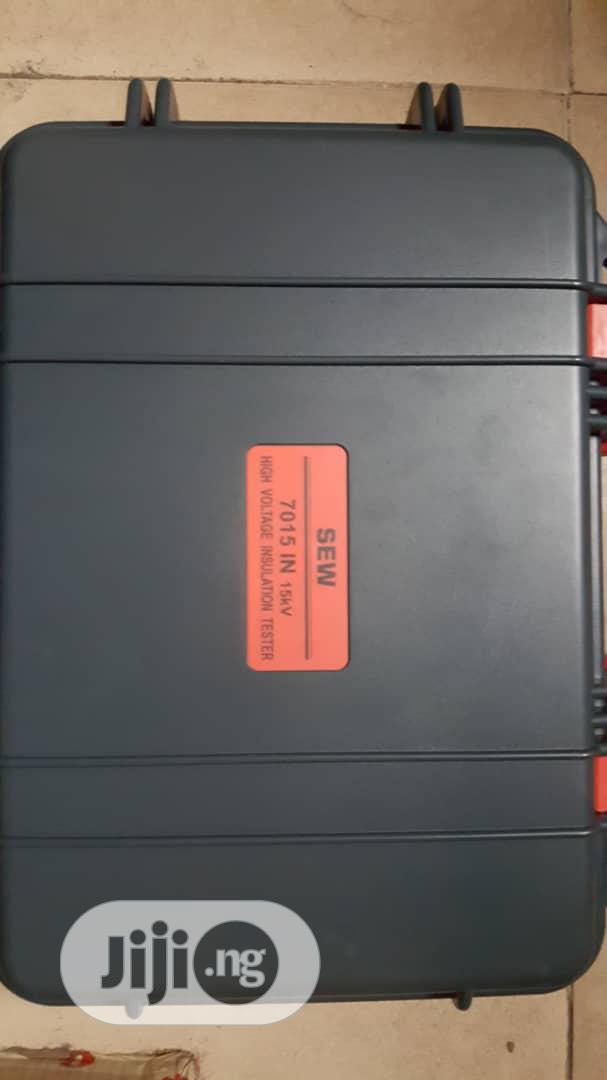

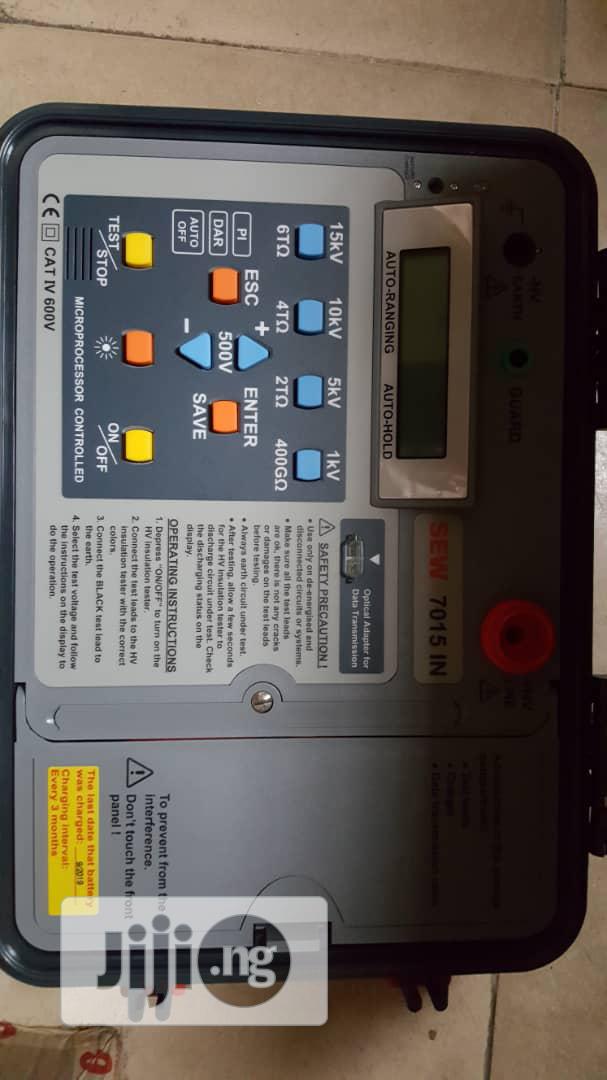

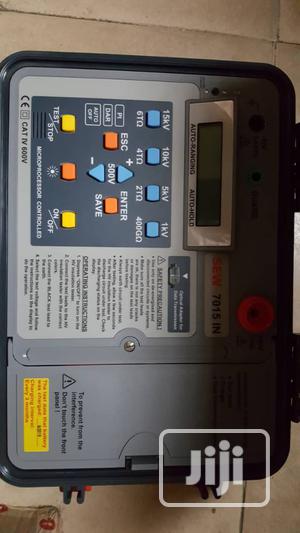

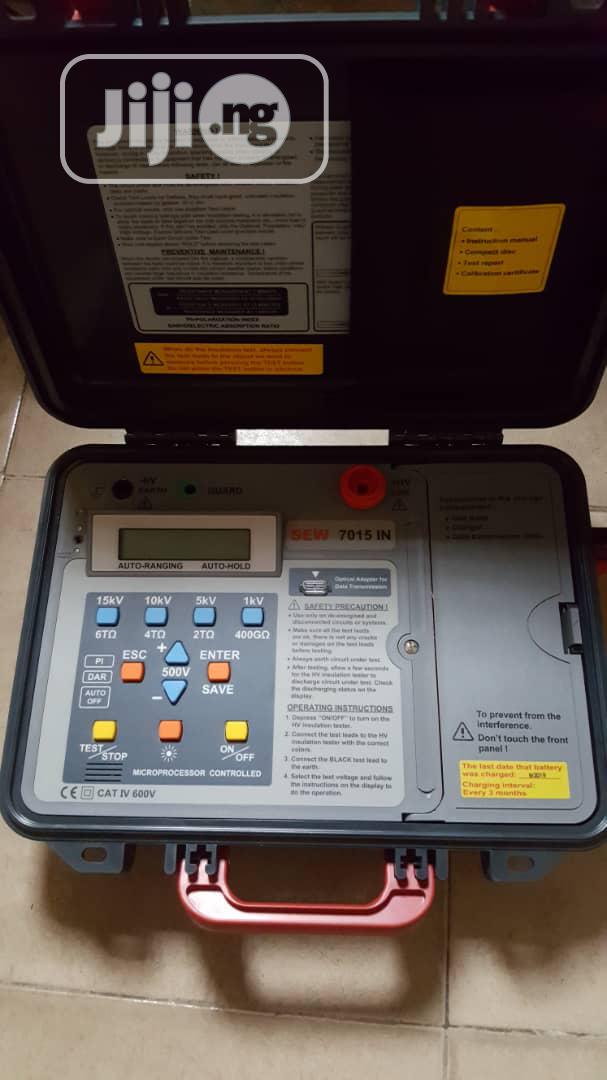

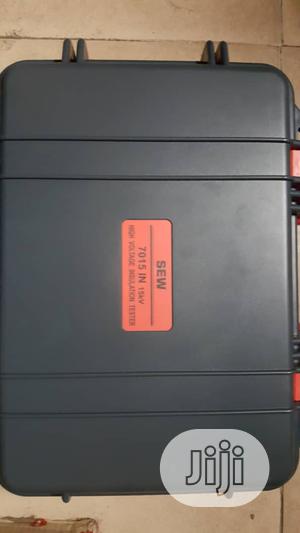

Sew digital high voltage insulation tester 7015 in
model: 7015 in
manufacturer: sew
origin: taiwan
warranty: 12 months
specifications
test voltage from 500vdc to 15kvdc
adjustable in 500v steps
preset buttons 1kv, 5kv, 10kv, 15kv
insulation
resistance
70gω/0.5kv
70gω at 0.5kv~2tω at 15kv
accuracy ±(5%rdg+5dgt)
resolution
2gω : 0.001gω
20gω : 0.01gω
200gω : 0.1gω
2tω : 1gω
short circuit
current up to 5ma
pi (polarization
index) √
dar (dielectric
absorption ratio) √
voltmeter
acv : 0~600v
dcv : 0~600v
accuracy : ±(2.0%rdg+3dgt)
resolution : 1v
power source rechargeable battery
ac adapter input : 100-240v~, 0.4a ,50-60hz
output : 24v ... 0.62a
dimensions 430(l) x 324(w) x 127(d)mm
weight approx : 5kg
accessories
instruction manual
test leads (al-58, al-30ag,
al-30hb, al-23ca)
data transmission cable ca-232
compact disk (cd) for pc interface
alligator clip (al-23ca)
charger (cha-7010)
test report
