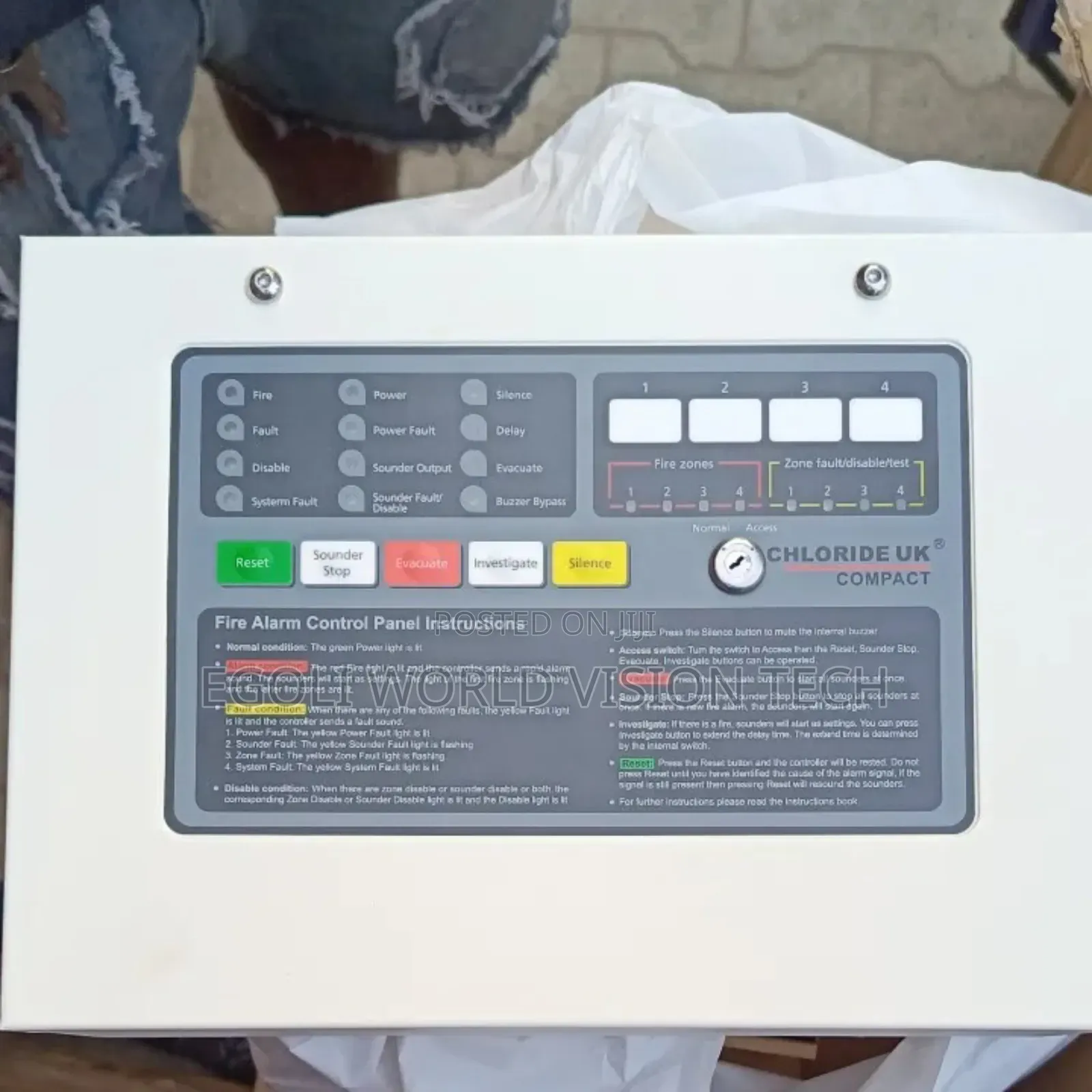

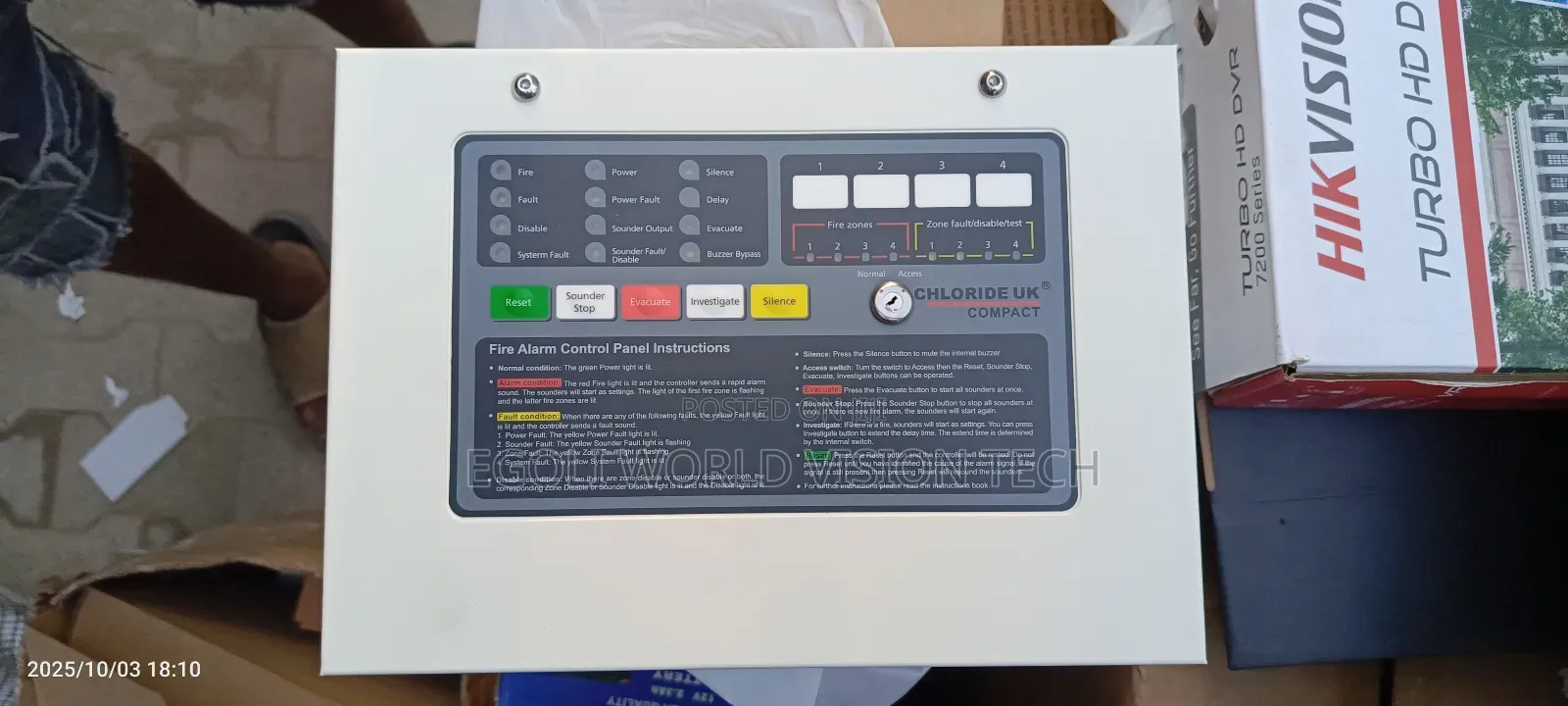

Chloride Uk Compact Fire Alarm Control Panel 2-zone Model

+1

Alarm Systems

Type

Brand New

Condition

CHLORIDE UK

Brand

Store address

Lagos State • Ikeja

7, ADEPELE STREET, COMPUTER VILLAGE, IKEJA, LAGOS.

Closed now

• Mon - Sat, 08:00-18:00

Zones: It is a conventional fire alarm control panel with 2 zones, though models with up to 16 zones exist. Detector Removal Line Integrity: It uses a microprocessor-based system for detector removal line integrity, eliminating the need for active End-Of-Line (EOL) resistors. Power Supply: It can accommodate up to two 7Ah 12V rechargeable batteries and operates on a main voltage of 220-230VAC at 50/60Hz, with a system voltage of 24VDC and zone voltage of 21VDC. Outputs: It provides a sounder alarm output of 2x400mA at 24VDC and includes fault and fire relay outputs. Features: It includes features like the ability to disable zones or sounder groups, send fault signals for zone/sounder shorts, and automatically disconnect zones/sounders during shorts.
