Launch TLT240SB Two Post Lift
Lagos, Ikeja
79 views
Brand New
Condition
Car Lifts
Type
Other
Make
other
Model
2022
Year of Manufacture
Two-Post Lifts
Car Lift Type
4
kg
Operating Weight
Store address
Lagos State • Ikeja
B3 SUITE12FF Rauf Aregbesola shopping mall Iyana Ipaja
Open now
• Mon - Sat, 09:00-18:00
Lagos State • Ojo
Favour Block, Tools and Hardware Plaza,Trade Fair Complex Ojo Lagos State
Open now
• Mon - Sat, 08:00-17:00

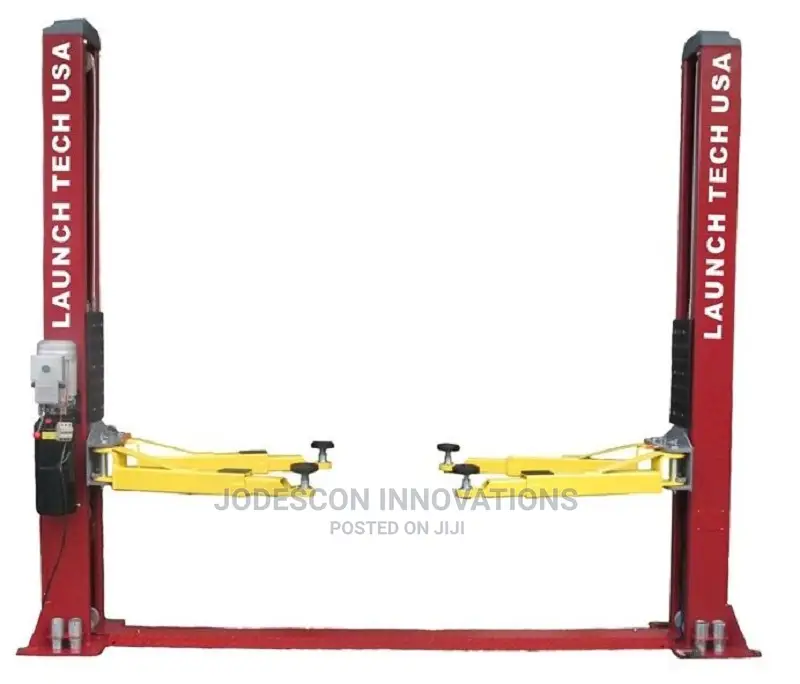

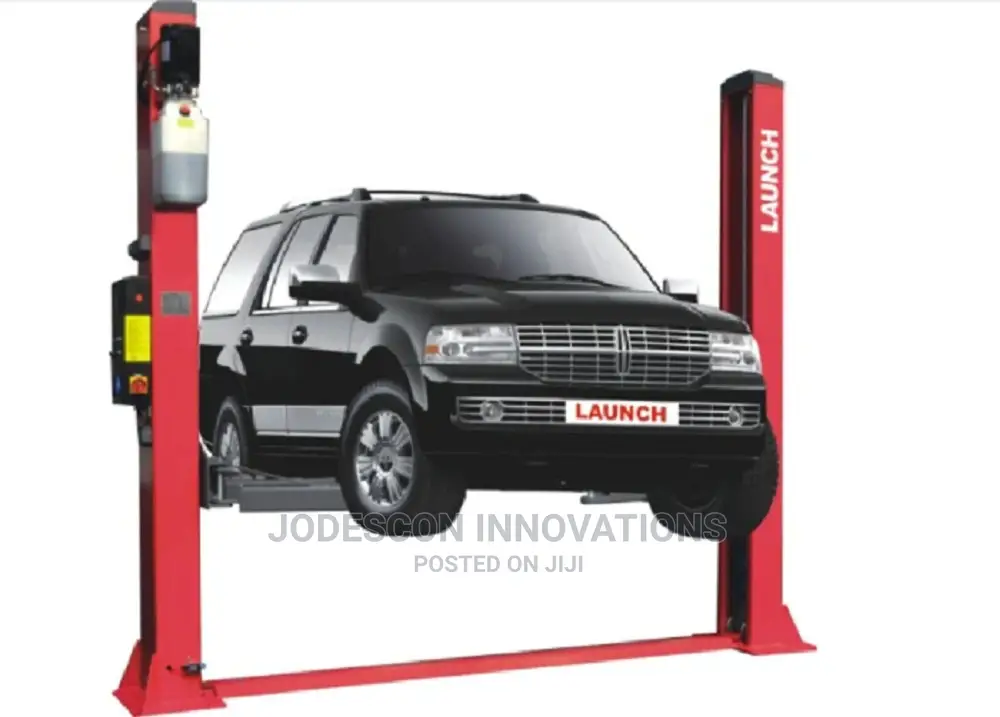

The launch tlt240sb two post lift is applicable for the lifting of suvs, vans and other vehicles up to 4 ton (4,000kg) weight. It is a commercial grade, baseplate style car lift with symmetric (straight column) posts and symmetric arms.
Passed 115% dynamic loading test and 150% static loading test
specifications
rated load: 4, 000kg
lifting height: 1, 850mm
initial height: 110mm
lifting time: <= 50s
lowering time: >= 20s <= 40s
passing width: 2, 486mm
overall width: 3, 370mm
overall height: 2, 860mm
minimum ceiling height: 3, 048mm
low pad height: 101mm
maximum lift height: 1, 854mm
width between columns: 2, 743mm
drive thru width: 2, 489mm
arm reach front: 800mm – 1, 199mm
arm reach rear: same
maximum load per arm: 1, 020kg
motor voltage: 3 phase/380v or single phase/220v
operating pressure: 2, 750 psi
shipping weight: 655kg
shipping dimensions: 2, 870mm x 546mm x 1, 092mm
motor power: 2.2kw
working noise: <= 70db
working oil pressure: 18mpa
