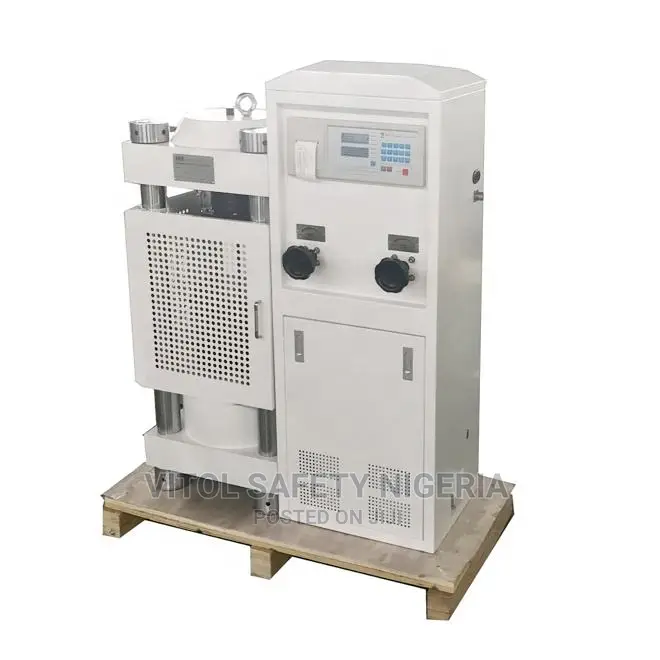

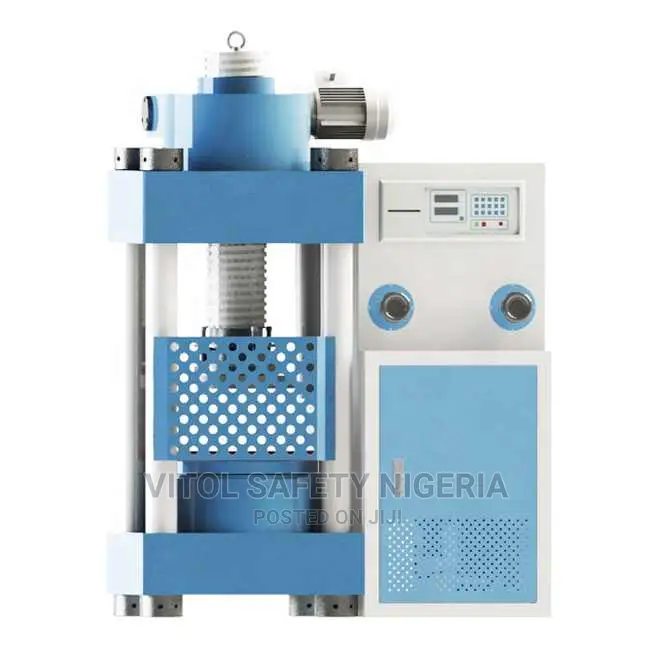

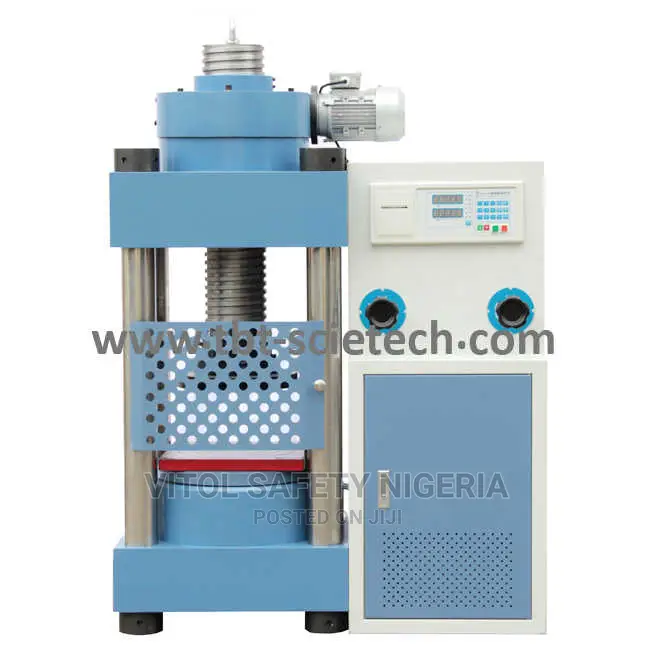

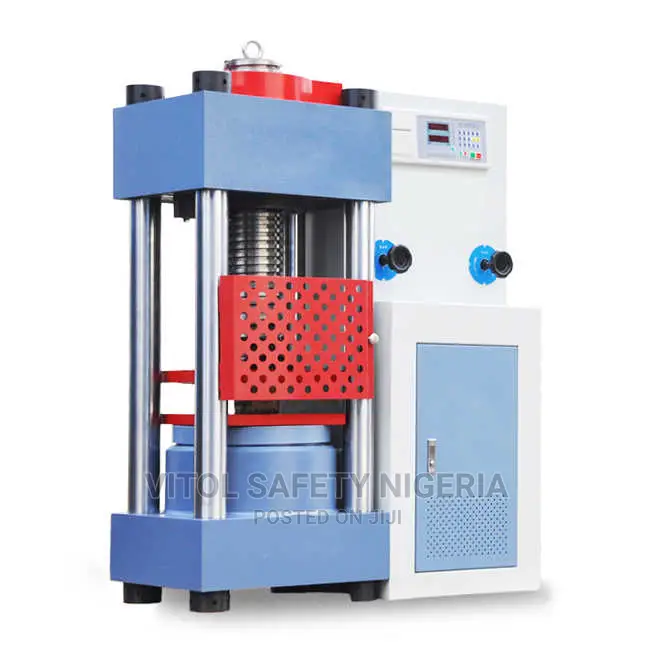

Computer Controlled 3000KN Compression Testing Machine

+1

Brand New

Condition

Other

Type

Other

Make

DYE 3000

Model

2022

Year of Manufacture

No

Exchange Possible

Store address

Verified

Lagos State • Amuwo-Odofin

23 Prudence Plaza Tools & Hardware Center Ojo Trade fair Complex Badagry Exp way Lagos

From Lagos island or ikeja get to mile 2, from mile 2 get to trade fair Complex Badagry Exp way Lago

Open

• Mon - Sat, 09:00-18:00

Verified

4

+1

images

Lagos State • Surulere

Shop9 Kindness plaza tools and hardwares trade fare international market

Closed

• Mon - Sat, 09:00-17:00

View on map

Oceanic DYE 3000 is an integrated compression testing machine. The machine applies loading on specimen driven by electro-hydraulic system. The applied loading is digital displayed real time, data is measured by electronic device then saved and processed automatically, the peak loading will be hold and displayed to avoid electric blackout. With appropriate clamping jaws & measuring device, it can make other test such as concrete splitting tensile, bending and static Elastic Modulus test. PRODUCT SPECIFICATIONS Model Oceanic DYE 3000 Maximum Capacity: 3000 kN Relative Error ±1% Platen dimension Ф250 mm Max. Vertical clearance between platen 320 mm Maximum travel of piston 100 mm Diameter of piston Ф250 mm Rated pressure of oil pump 40 Mpa Power supply 220VAC 750W
