MC4 Connector. 1piece
Other
Type
Other
Brand
Brand New
Condition
Store address
Lagos State • Ifako-Ijaiye
5, Akinwale Street Off Thomas Salako Ogba ikeja Lagos
Closed
• Mon - Sat, 08:00-18:00
Lagos State • Lagos Island (Eko)
4, Ibomo Street, off Agarawu, Lagos Island
Call me anywhere on the Island
Closed
• Mon, Sat, 08:00-19:00
Lagos State • Agege
23/24, GRA Zone, off Keke High School, Ijaiye Housing Estate, Oba Ogunji Road, Pen Cinema, Agege
Call from Pen Cinema
Closed
• Mon, Sat, 08:00-17:00

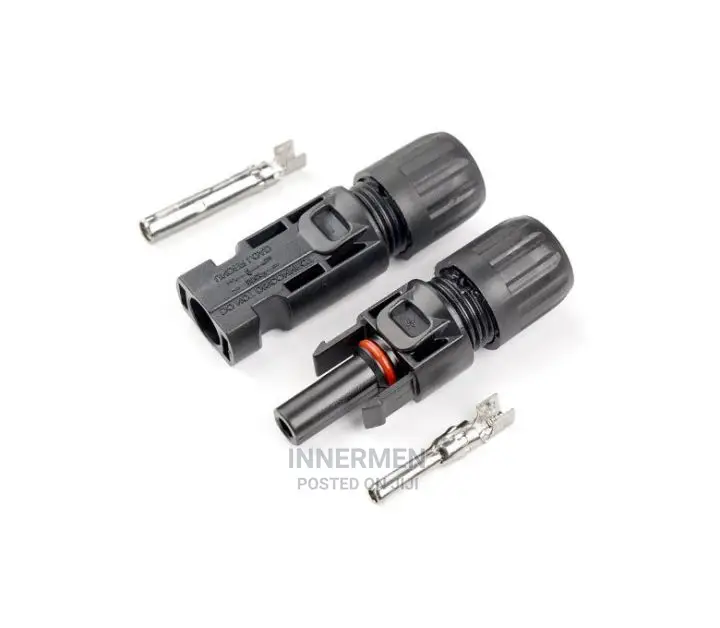

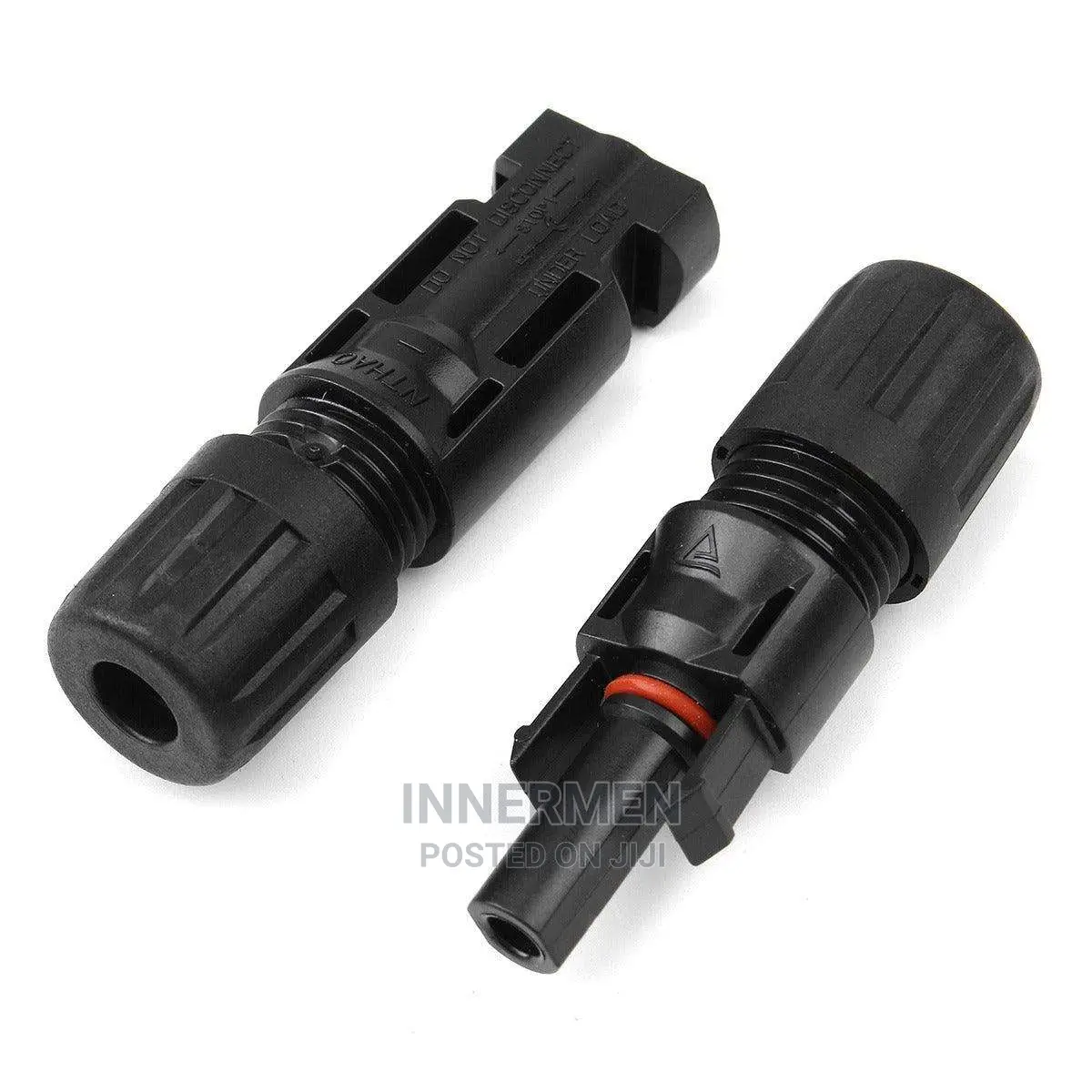

The MC4-CONNECTOR is an industry standard PV connector kit. It includes a male and a female connector with crimp contacts which can accommodate 10AWG and 12AWG wire. The IP67 UV Protected weatherproof connectors are designed for outdoor use in harsh environments.
Name:MC4 solar connector
Rated current:30A
Rated voltage:1000VDC
Test voltage:6000v (50Hz)
Plug connector:≤5mΩ contact resistance
Connector conductor material: Tinned copper
Connector insulation material: PPO
Protection level: IP67
Flame retardant grade:UL94-V0
Safe type: II
Insertion force:≤50n
Take force:≥50n
Operating temperature range:-40°C~ +90°C
Suitable cable:2.5mm
