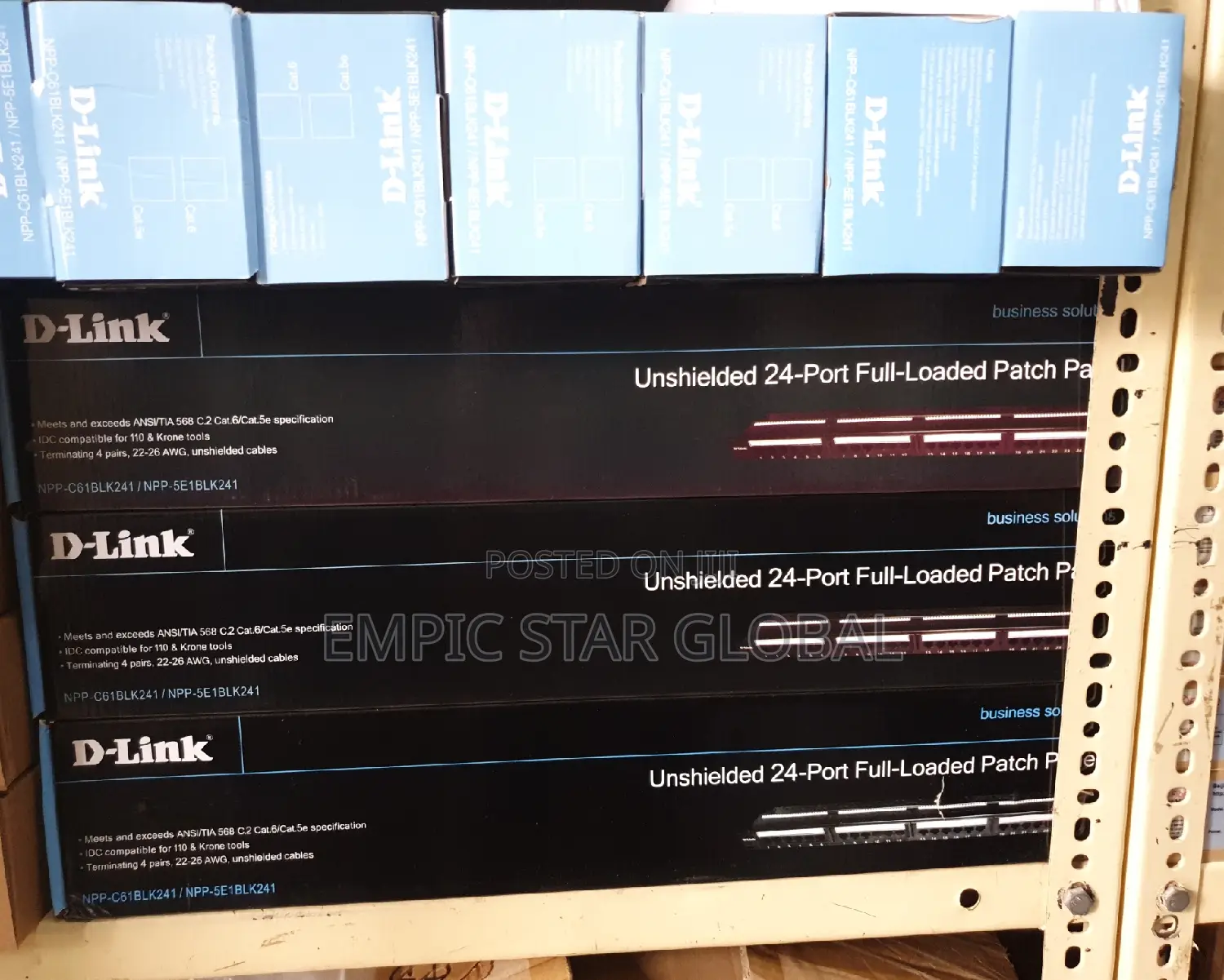

Cat6 utp loaded patch panel
product no. description color
cat6 utp 24 port loaded patch panel black
features
• six port rj45 modules applied
• id stripes for identifying port allocations
• idc: suitable for 22-26 awg stranded
and solid wire
• compatible with both 110& krone
punch down tools
• improved cable management with
optional cable management bar
• available in 1u and 2u
specifications
1. identification: id plate, pvc, transparent color with paper
2. panel: spcc, 1.5mm thickness with black (ral 9005) color painted
3. rj45 jack:
housing: abs, ul 94v-0
contact brackets: pc, ul 94v-2, transparent color
4. rj45 jack contact:
material: phosphor bronze with nickel plated
finish: 50 micro-inches gold plated on plug contact area
5. idc:
housing: pc+ glass fiber, ul 94v-2
terminal: phosphor bronze with tin plated
6. jack bracket set: abs, ul 94v-0
7. support bar: spcc, 1.5 mm thickness
with black (ral 9005) color painted
8. pcb: fr4, ul 94v-0
