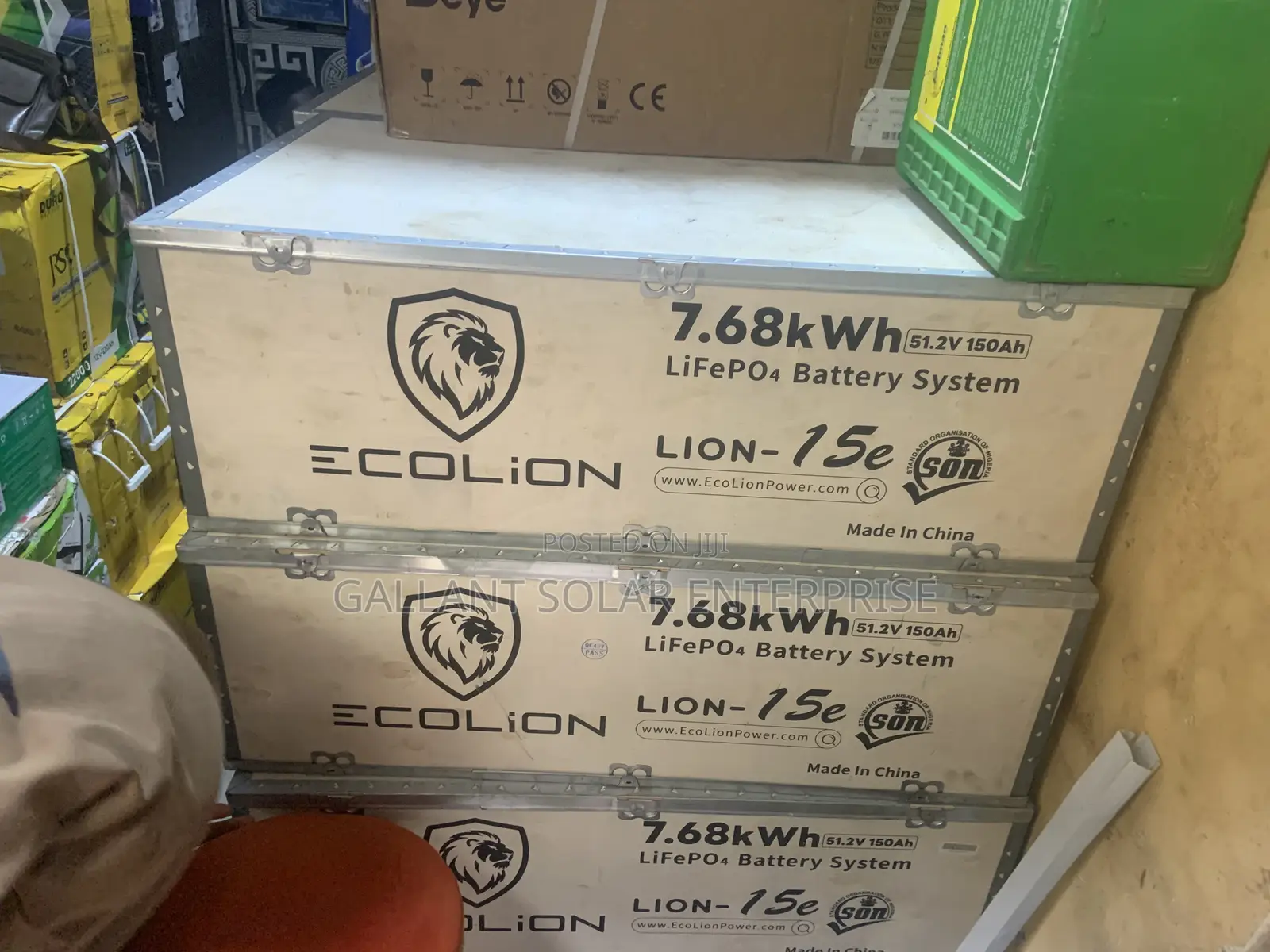

Ecolion 7.6kwh Lithium Battery 48v
Ecolion
Brand
Deep Cycle Batteries
Type
150aH
Battery Capacity
Brand New
Condition
48 V
Rated Voltage
7000kWh
Total Battery Energy
48v nominal
• capacity: 160ah
• total energy: 48v x 160ah = 7.68kwh
• usable energy: 6.9kwh @ 90% dod | 7.68kwh @ 100% dod bms allows
• battery type: lifepo4 - lithium iron phosphate
• cells: 16s grade a 160ah prismatic cells
• cycle life: 6000 cycles @ 80% dod. ∼10-15 years
• bms: smart jk bms with lcd + bluetooth + app "ecolion smart"
charge / discharge
• max charge current: 80a
• max discharge current: 80a continuous = 3840w
• peak discharge: 160a for 10 seconds = 7680w
• charge voltage: 56.4v - 57.6v
• low voltage cut-off: 44v - 48v adjustable
• charging time: 2hrs with 80a | 3.2hrs with 50a
• efficiency: 98%
• self discharge: <3% per month
• parallel: up to 16 units parallel = 122.8kwh
