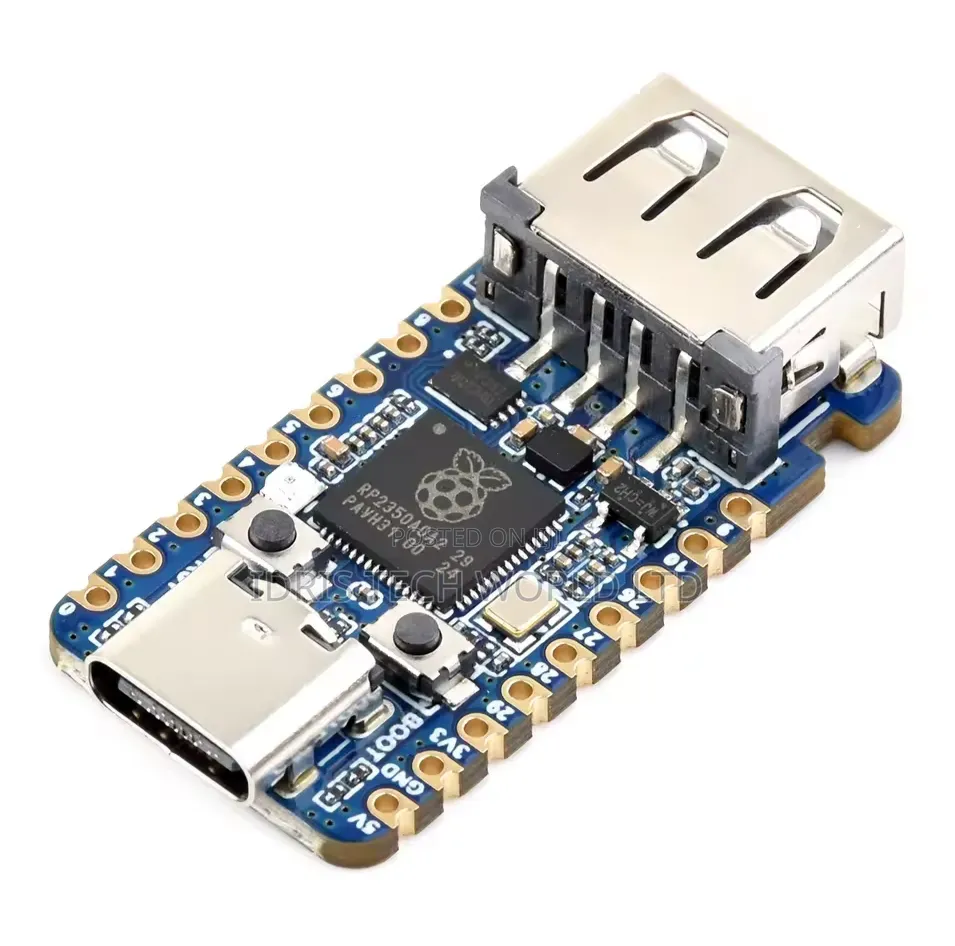

RP2350 Board , Waveshare RP2350 USB-A
Other
Type
Universal
Brand
Brand New
Condition
Store address
Oyo State • Ibadan
Sw8/685 dapo allied building besides Zenith challenge Ibadan
Closed now
• Mon - Sat, 09:00-18:00

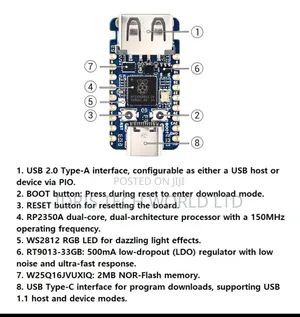

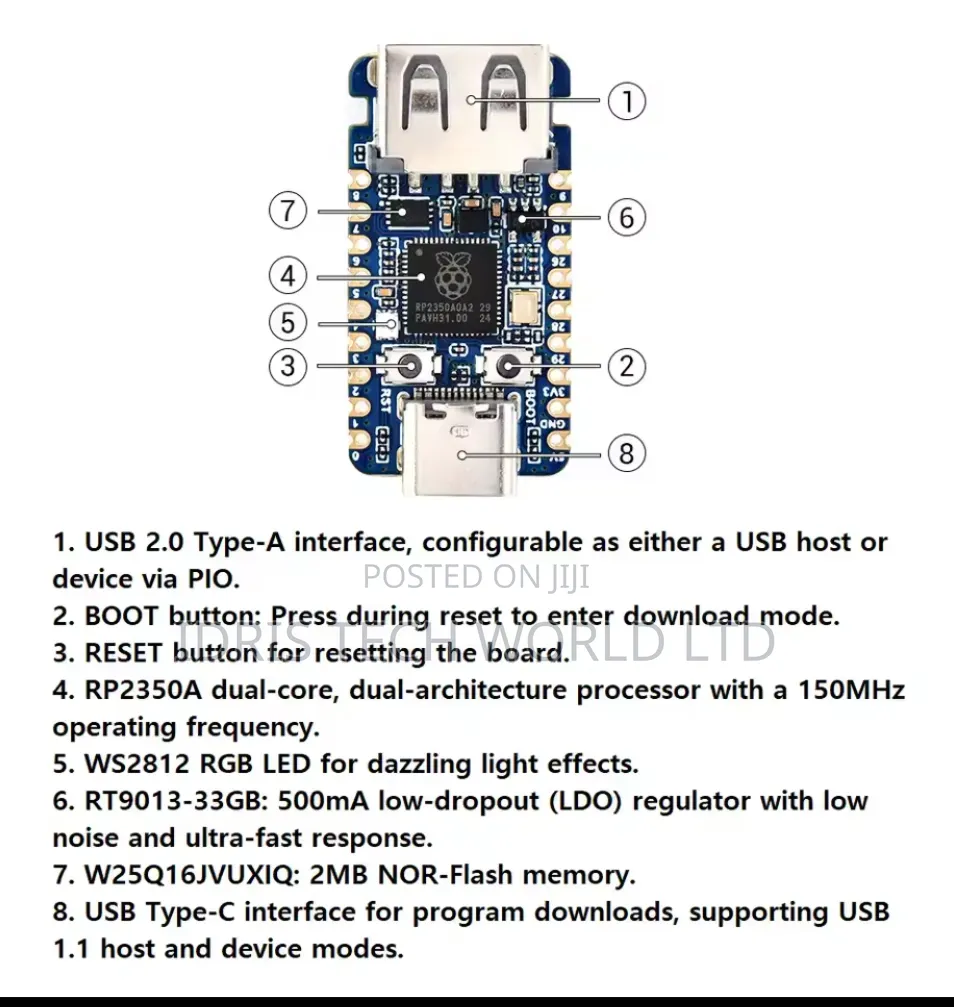

RP2350 microcontroller chip officially designed by Raspberry Pi
Adopts unique dual-core and dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-
core Hazard3 RISC-V core processor, flexible clock running up to 150 MHz
Built-in 520KB of SRAM and 2MB of on-chip Flash
Onboard 1 USB port, compatible with USB2.0/1.1 transmission
Castellated module allows soldering directly to carrier boards
Drag-and-drop programming using mass storage over USB

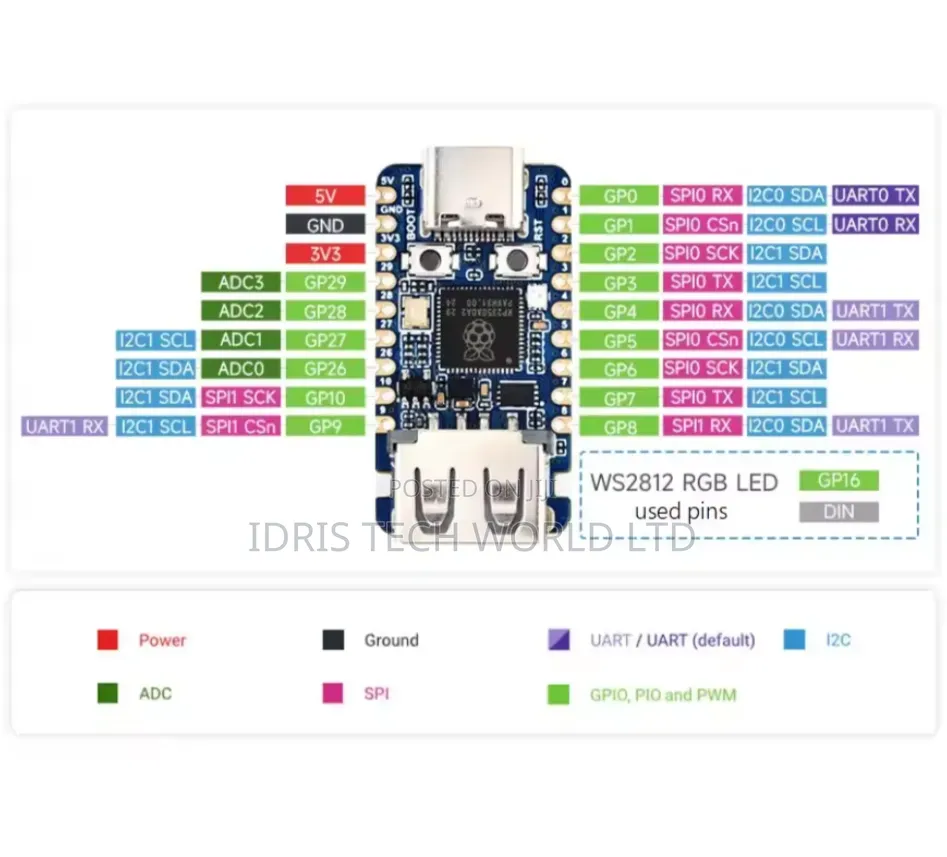

15 x multi-function GPIO pins of RP2350
Multiple hardware peripherals
SPI x 2
I2C x 2
UART × 2
12-bit ADC × 4
Controllable PWM channel × 14
Built-in temperature sensor on chip
12 x Programmable I/O (PIO) state machines for custom peripheral support
