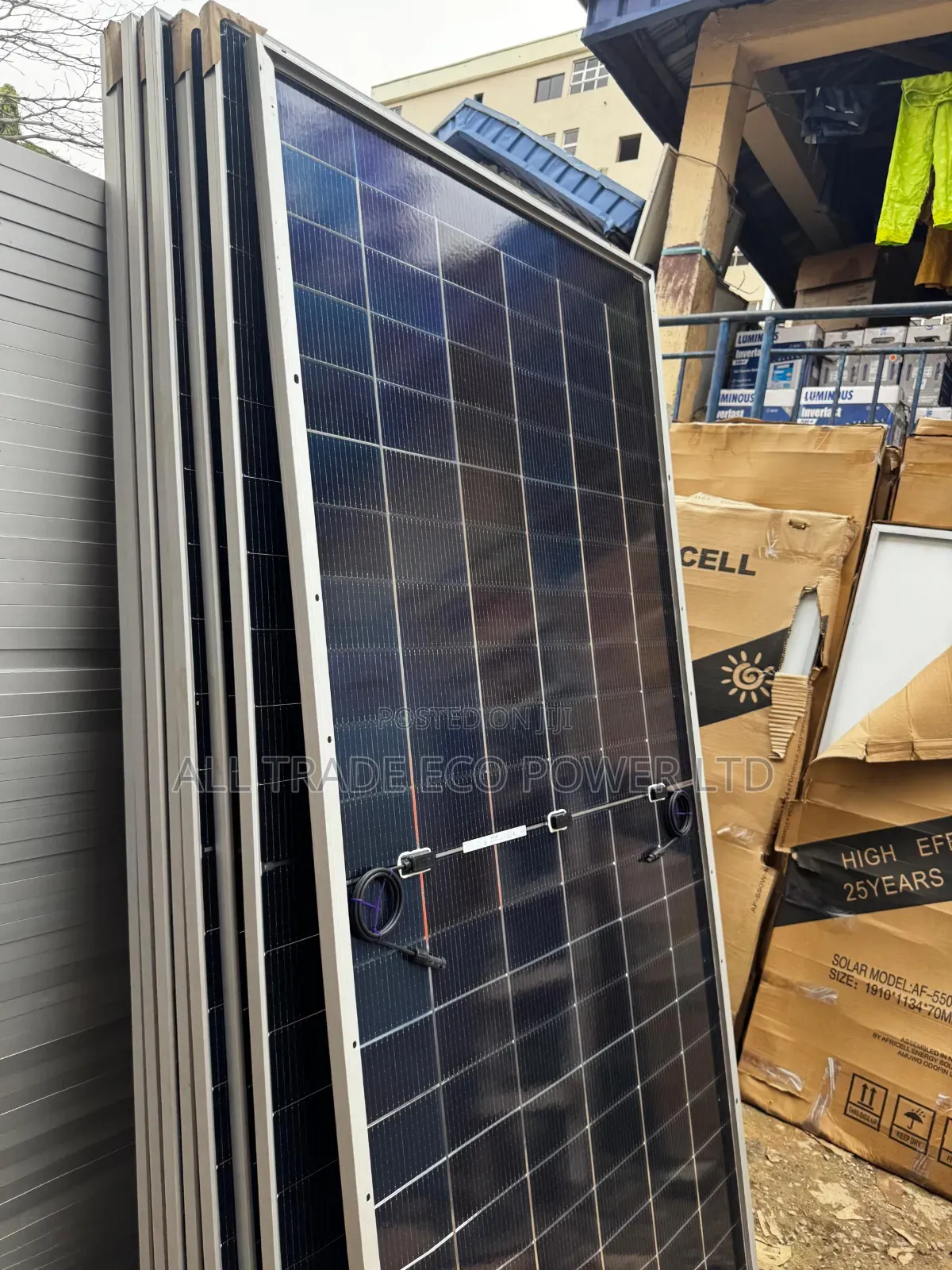

Ja Panel 625w Bifacial
Ja Solar
Brand
Solar Panels
Type
Brand New
Condition
Monocrystalline
Panel Type
132
Number of Cells
625watts
Solar Panel Power
48V
Panel Rated Voltage
23%
Efficiency
- brand: ja solar
- product name: deepblue 4.0 pro n-type bifacial double glass panel

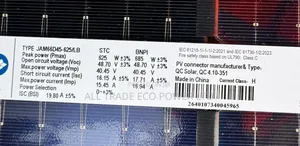

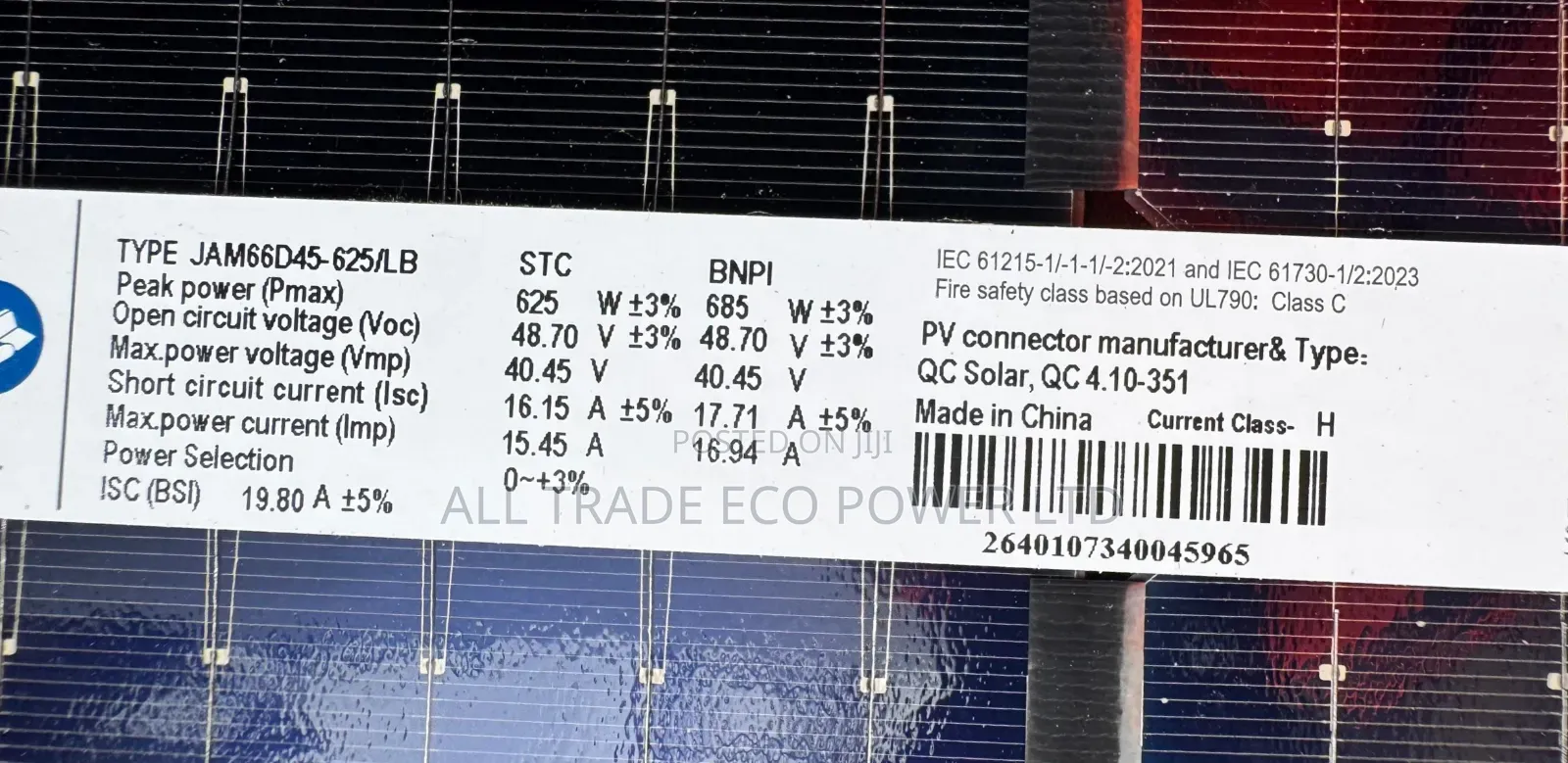

- model: jam66d45-625/lb
- peak power (pmax): 625w (stc) / 685w (bnpi)
- module efficiency: up to 23.1%
- cell technology: n-type topcon monocrystalline
- number of cells: 132 cells (6 x 22 layout)
- open circuit voltage (voc): 48.70v
- max power voltage (vmp): 40.45v
- short circuit current (isc): 16.15a
- max power current (imp): 15.45a
- power tolerance: 0 ~ +3%
- max system voltage: 1500v dc
- dimensions: 2382 x 1134 x 30 mm
- net weight: 33.1 kg

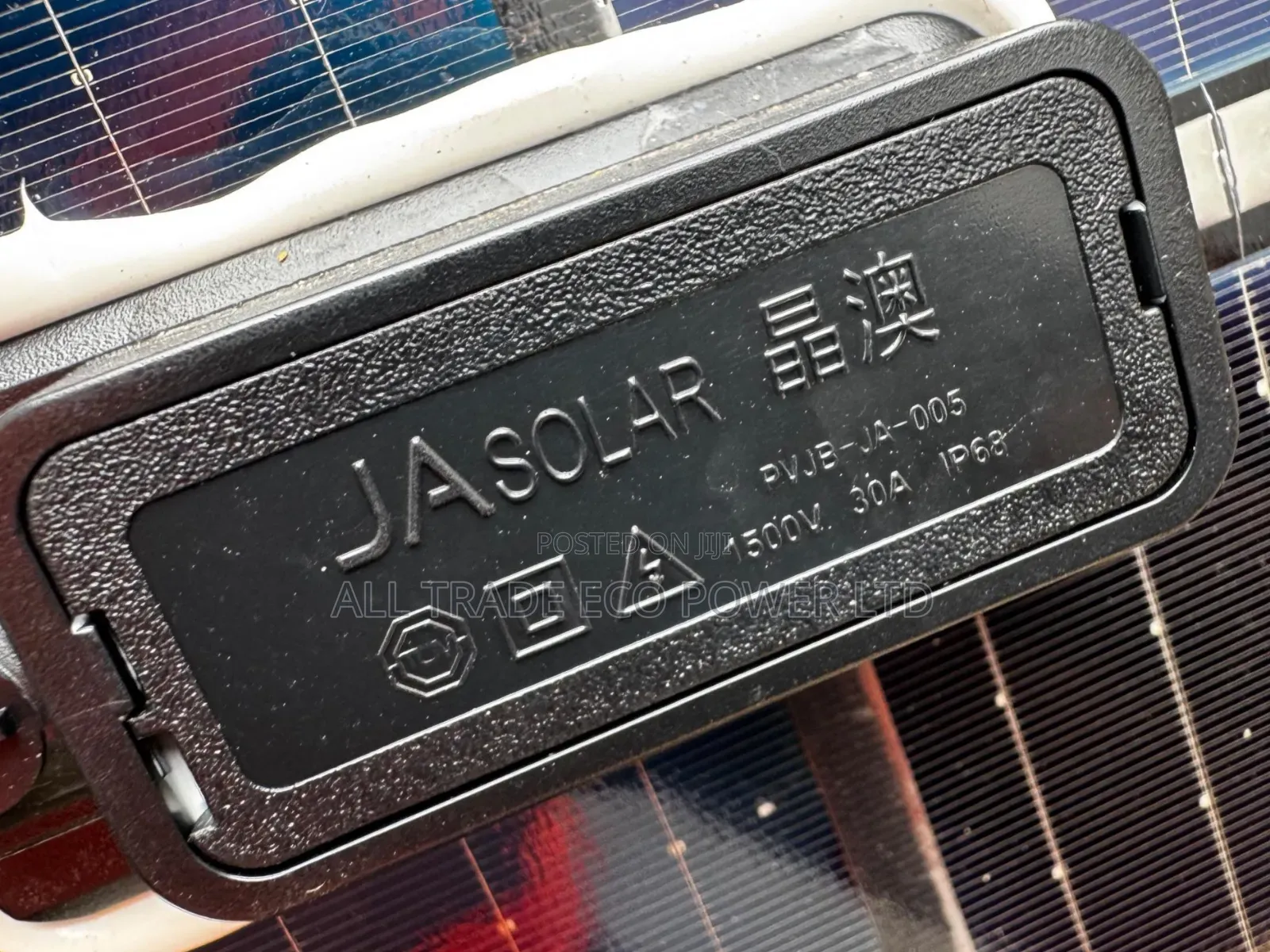

- junction box protection: ip68 (3 diodes)
- connector type: qc solar qc 4.10-351 / mc4-evo2 compatible
- product warranty: 12 years
- linear power warranty: 30 years
