| **model series** | lpbf48100 / lpba48100 |
| **cell chemistry** | lithium iron phosphate (\text{lifepo}_4) |

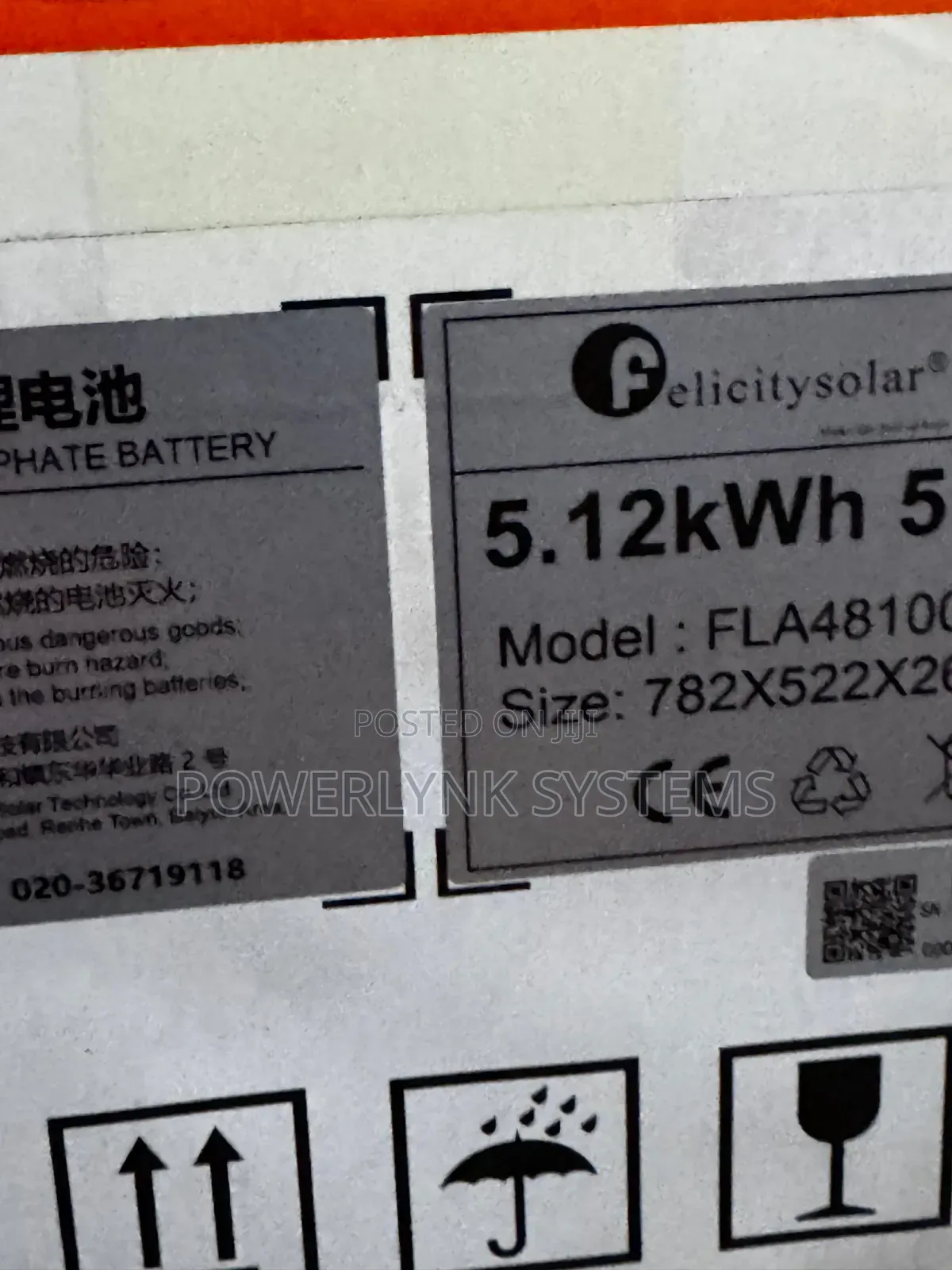

| **nominal energy capacity** | 5.12 kwh (5,120 wh) |
| **nominal voltage** | 51.2v dc (commonly referenced as 48v) |
| **rated capacity** | 100 ah |
| **operating voltage range** | 44.8v – 57.6v dc |
| **recommended charge/discharge current** | 50a – 100a |
| **maximum continuous current** | 100a |
| **depth of discharge (dod)** | up to 95% |
| **cycle life** | \ge 6,000 cycles (at 25^\circ\text{c}, 80%–95% dod) |
