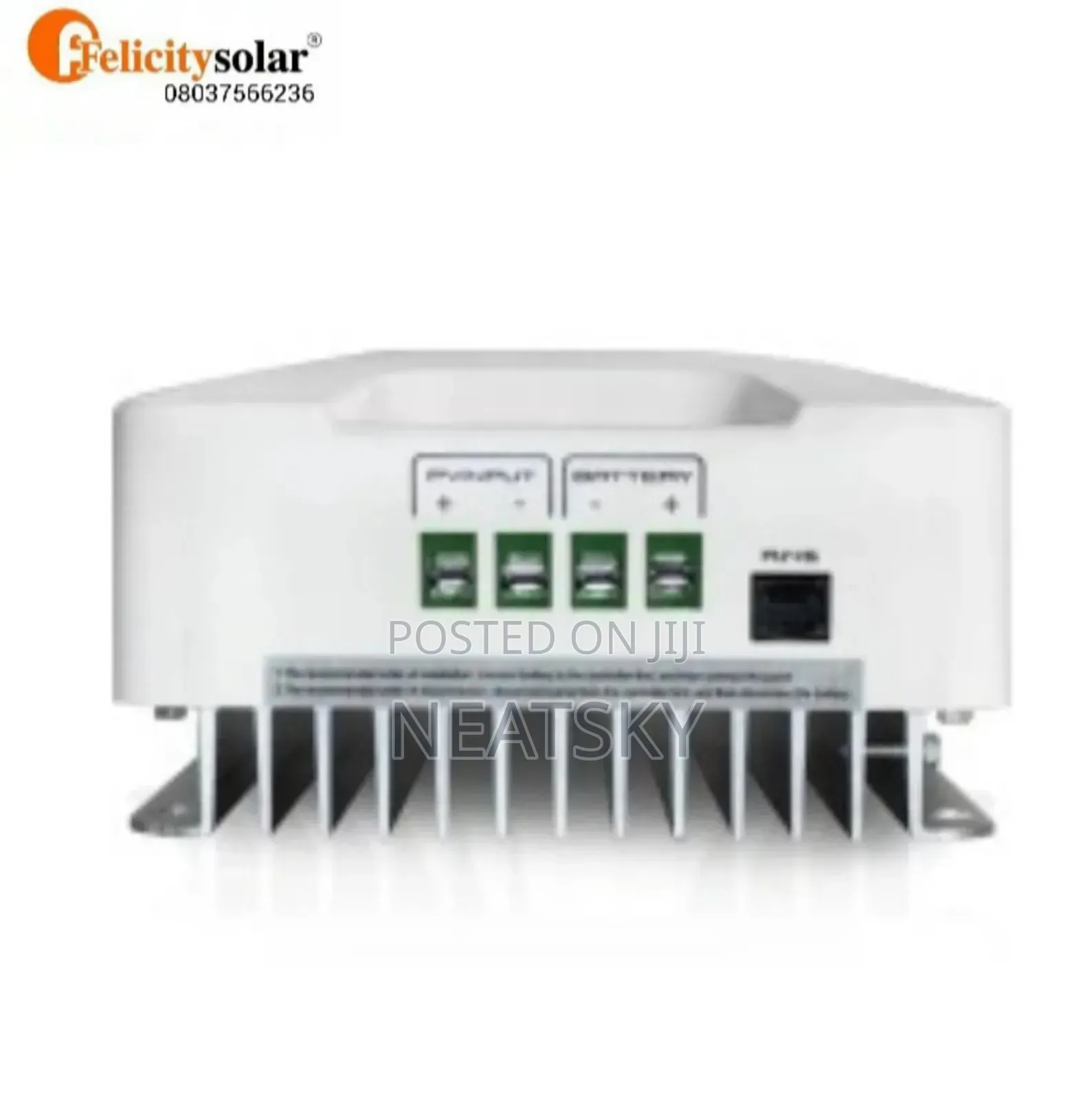

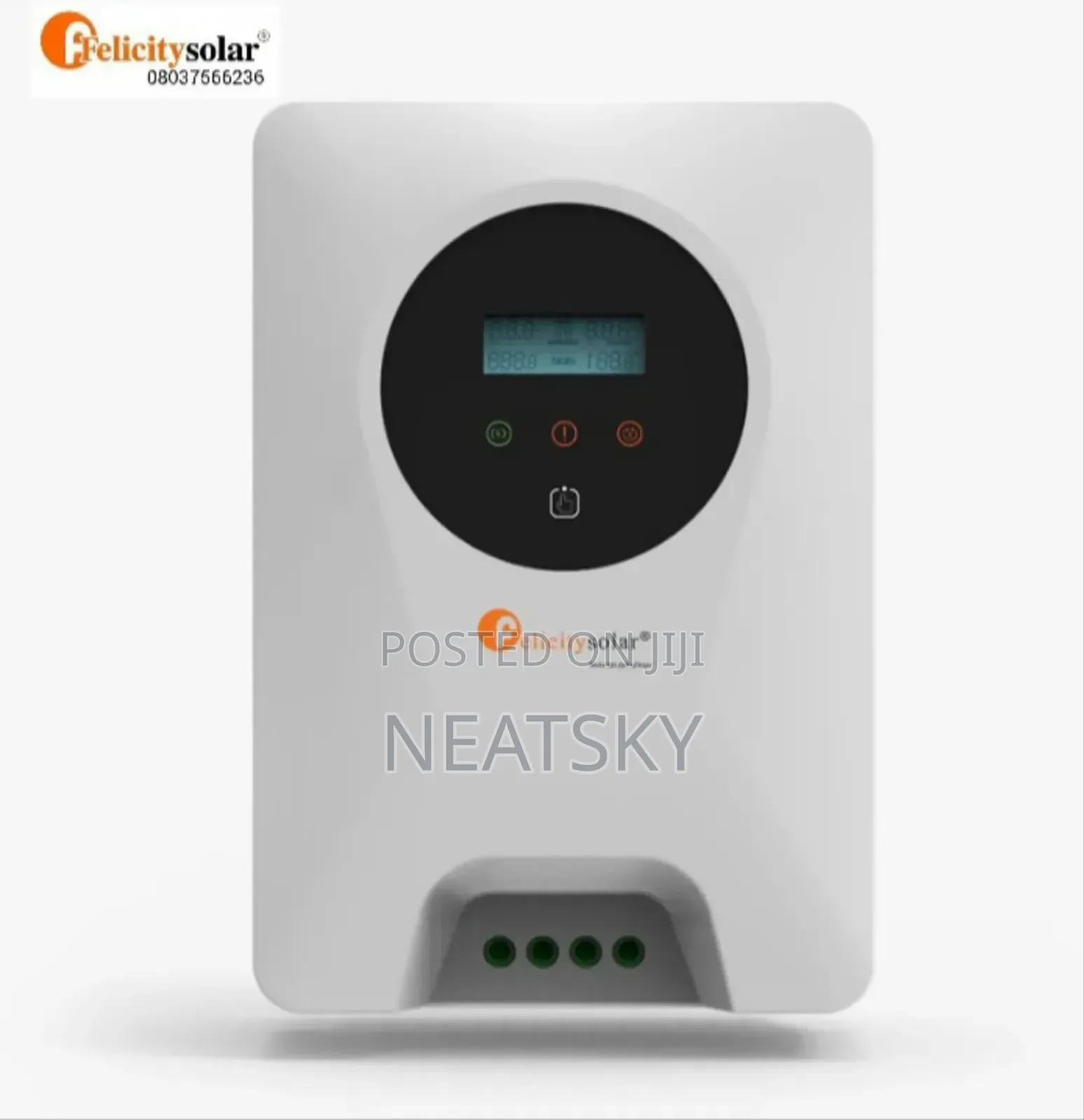

Solar Charge Controller (Fl- 45a)

+1

Felicitysolar

Brand

Charge Controllers

Type

Brand New

Condition

Store address

Enugu State • Enugu

shop 3 college road opposite WTC estate and UNEC campus

Closed now

• Mon - Sat, 08:00-20:00

Model fl-sccm4548-ii maximum solar input voltage 145v nominal system voltage 12,24,48vdc (auto detection) maximum battery current 45a dc array mppt voltage range 12vdc/24vdc/48vdc. pv array mppt voltage range 15-115vdc/30-115vdc-60-115vdc maximum input power 12volt-625watts 24volt-1250watts 48volt-2500watts. charging algorithm 3-step charging stages bulk, absorption, float bulk, absorption, float. temperature compensation coefficient -5mv/°c/cell (25°cref.) flooded battery 14.6v/29.2v/58.4v arg/gel battery default) 14.1v/28.2v/56.4v overcharge voltage 15v/30v/60v overcharge restart voltage 14.5v/29v/58v battery discharge voltage 8.5v/17v/34v battery over discharge voltage 9v/18v/36v product size (hwd, mm) mm product weight (kg) 4.0kg storage temperature -40°c to 75°c. enclosure ip31 (indoor & vented)
