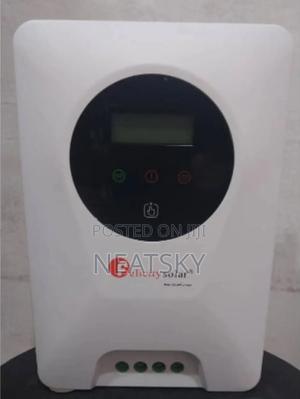

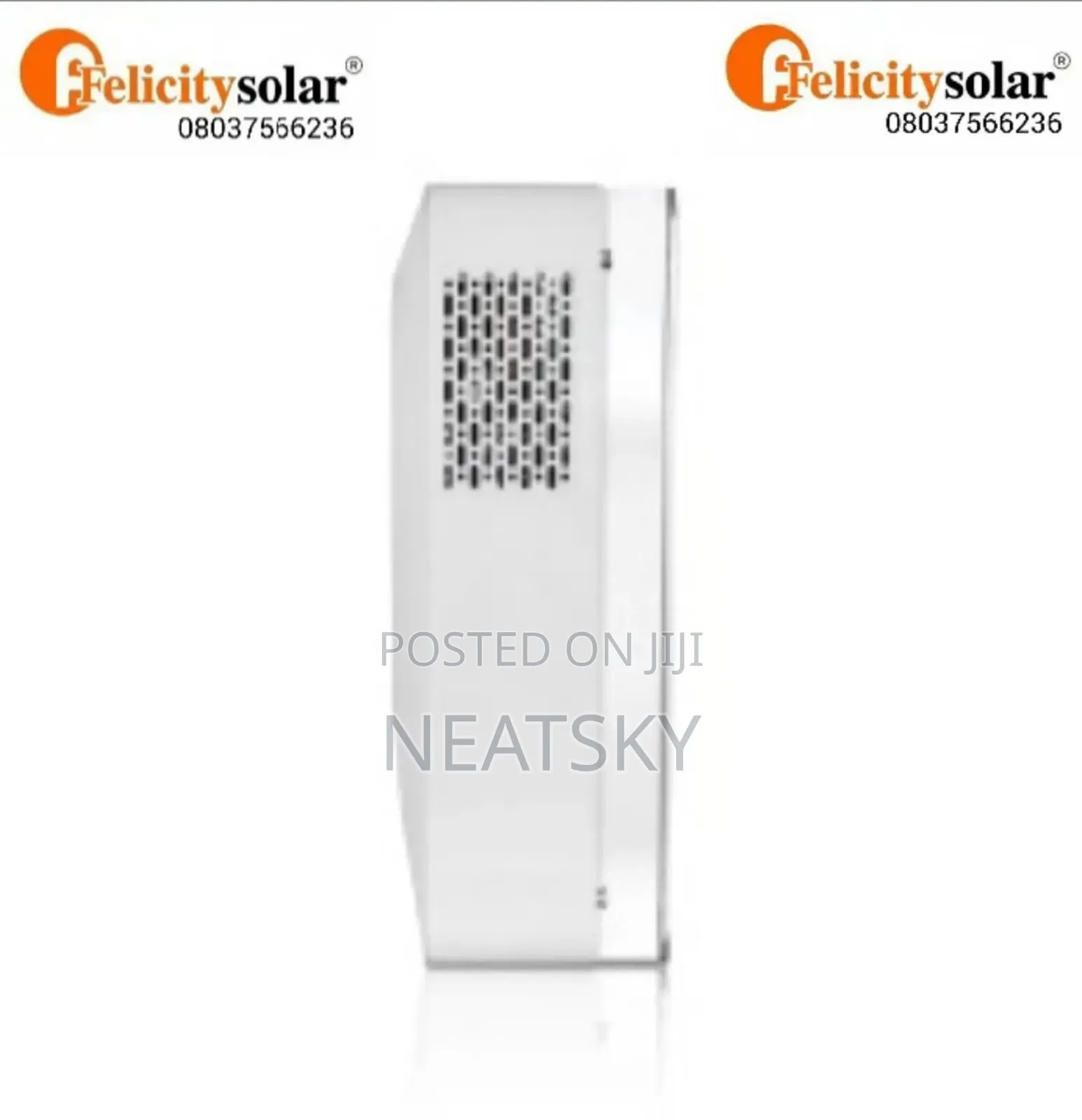

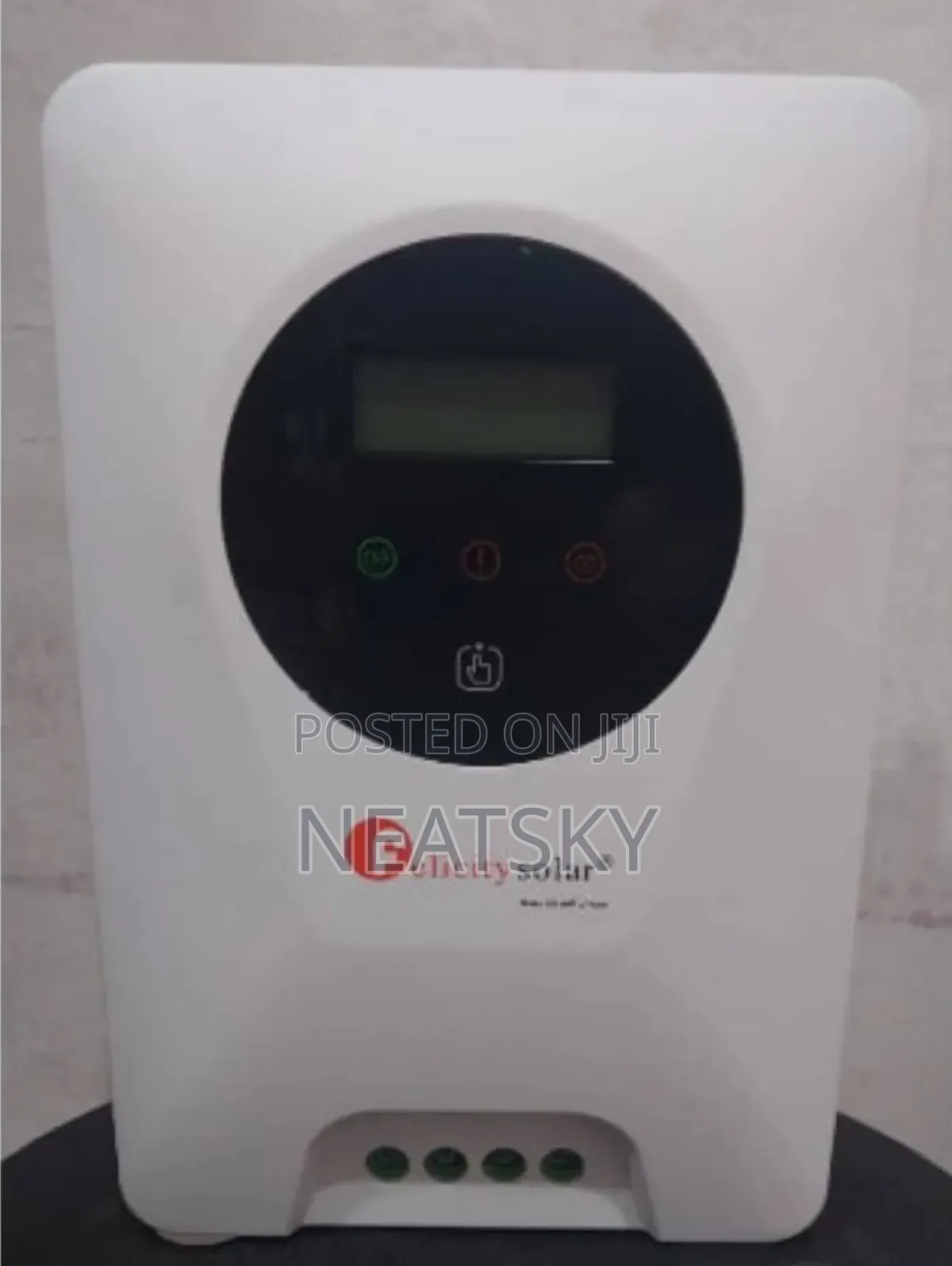

Solar Charge Controller (Fl- 30a)

+1

Felicitysolar

Brand

Charge Controllers

Type

Brand New

Condition

Store address

Enugu State • Enugu

shop 3 college road opposite WTC estate and UNEC campus

Closed now

• Mon - Sat, 08:00-20:00

Modelfl-sccm4524-ii max pv input vol:95v system vol:12v/24v (auto dictation) max battery charge current:45a pv array mppt vol range: 15v-80vdc / 30-80vdc max pv input power (12v): 625w max pv input power (24v): 1250w charge information charging curve:see image below this sheet charge algorithm:3-step charging stages:bulk, absorption, float bulk, absorption, float temperature compensation coefficient:-5mv/°c/cell (25°c ref.) temperature compensation range: 0°c to 50°c flooded battery:14.6v / 29.2v arg/gel battery (default): 14.1v / 28.2v overcharge voltage:15v / 30v overcharge restart voltage: 14.5v / 29v battery discharge voltage: 8.5v / 17v battery over discharge voltage:9v / 18v mechanical & environment size (hwd): mm weight:1.8kg storage temperature range:-40°c to 75°c enclosure:ip31 (indoor & vented)
