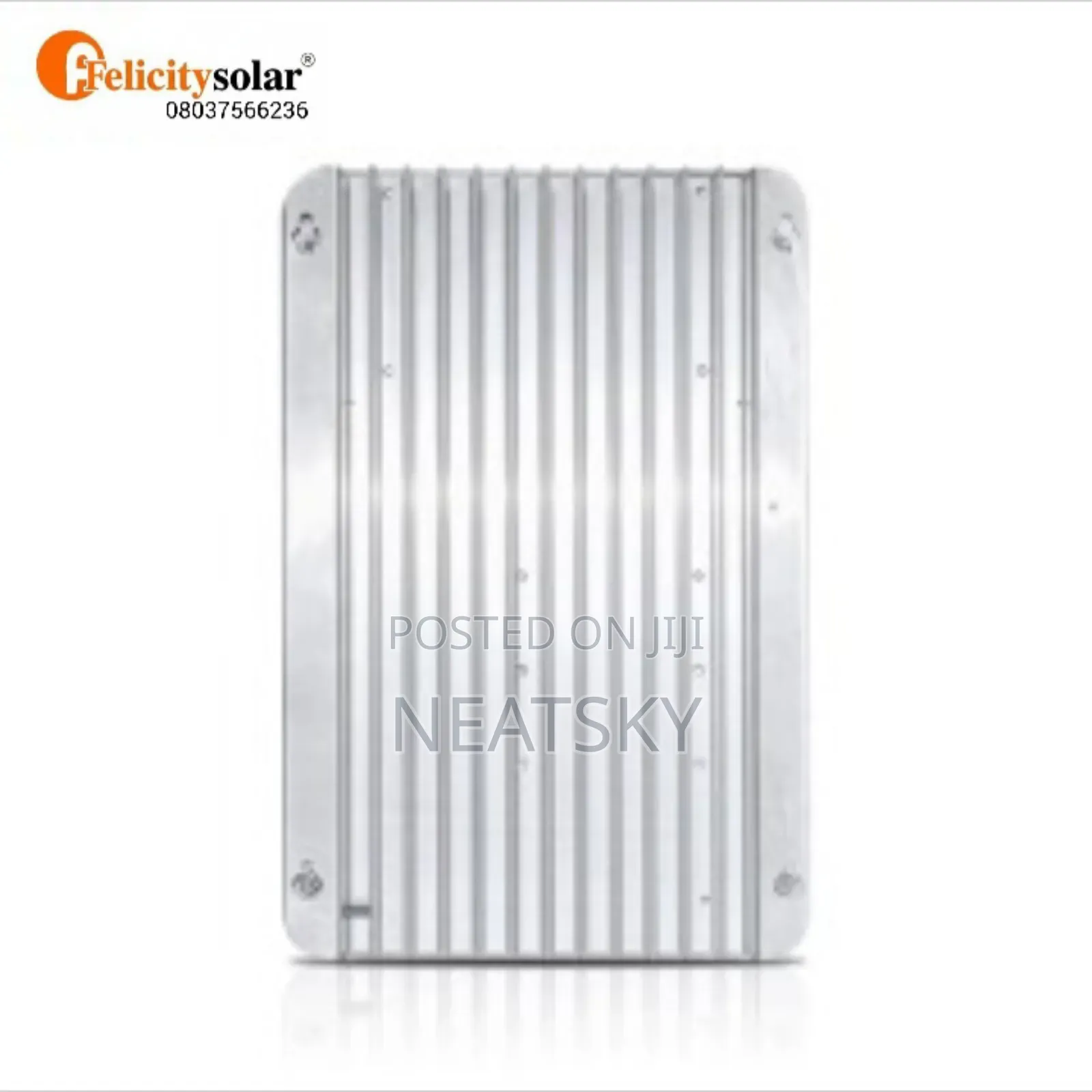

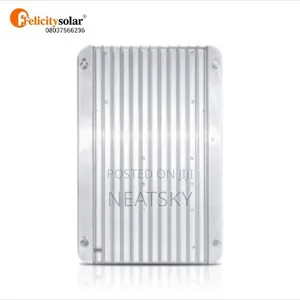

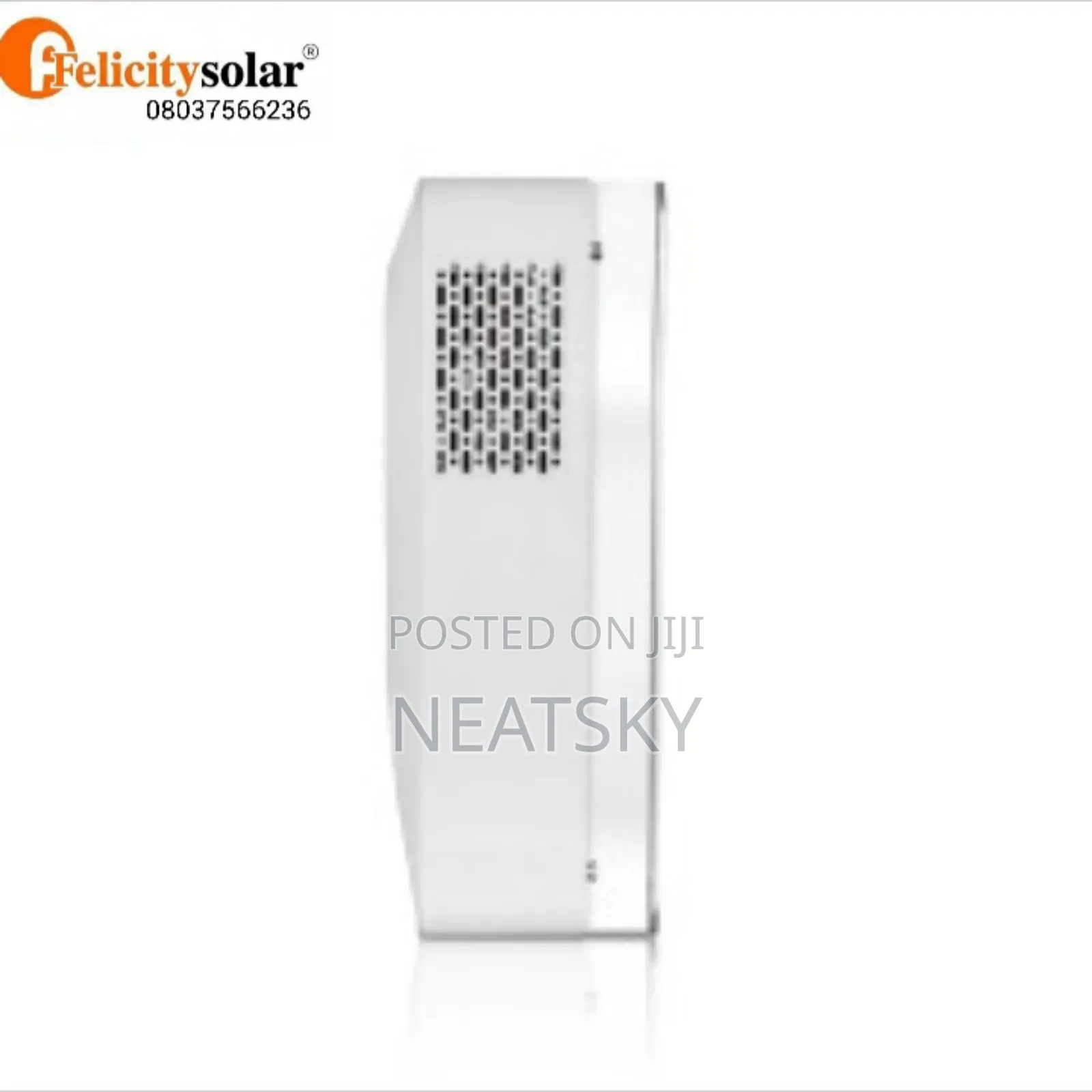

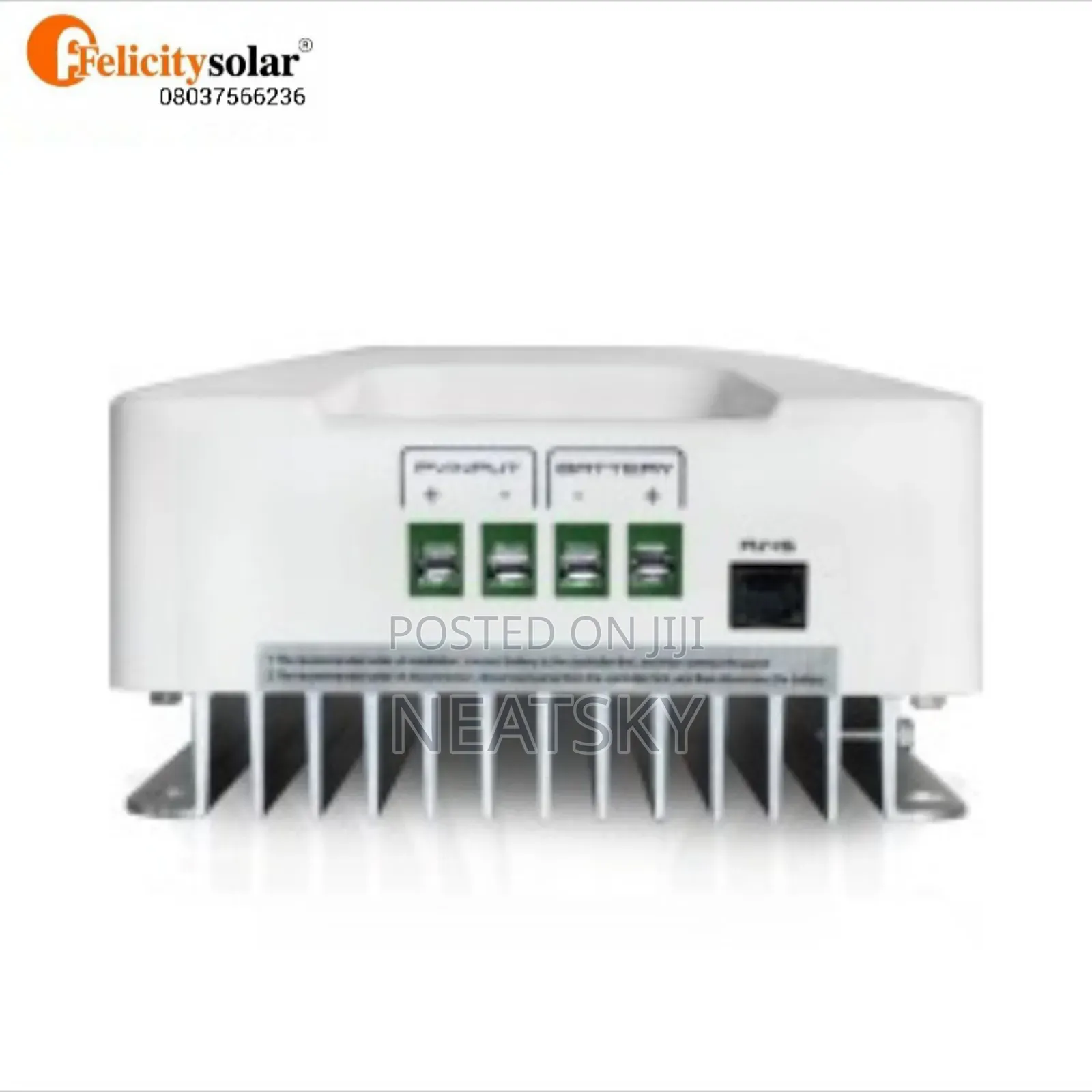

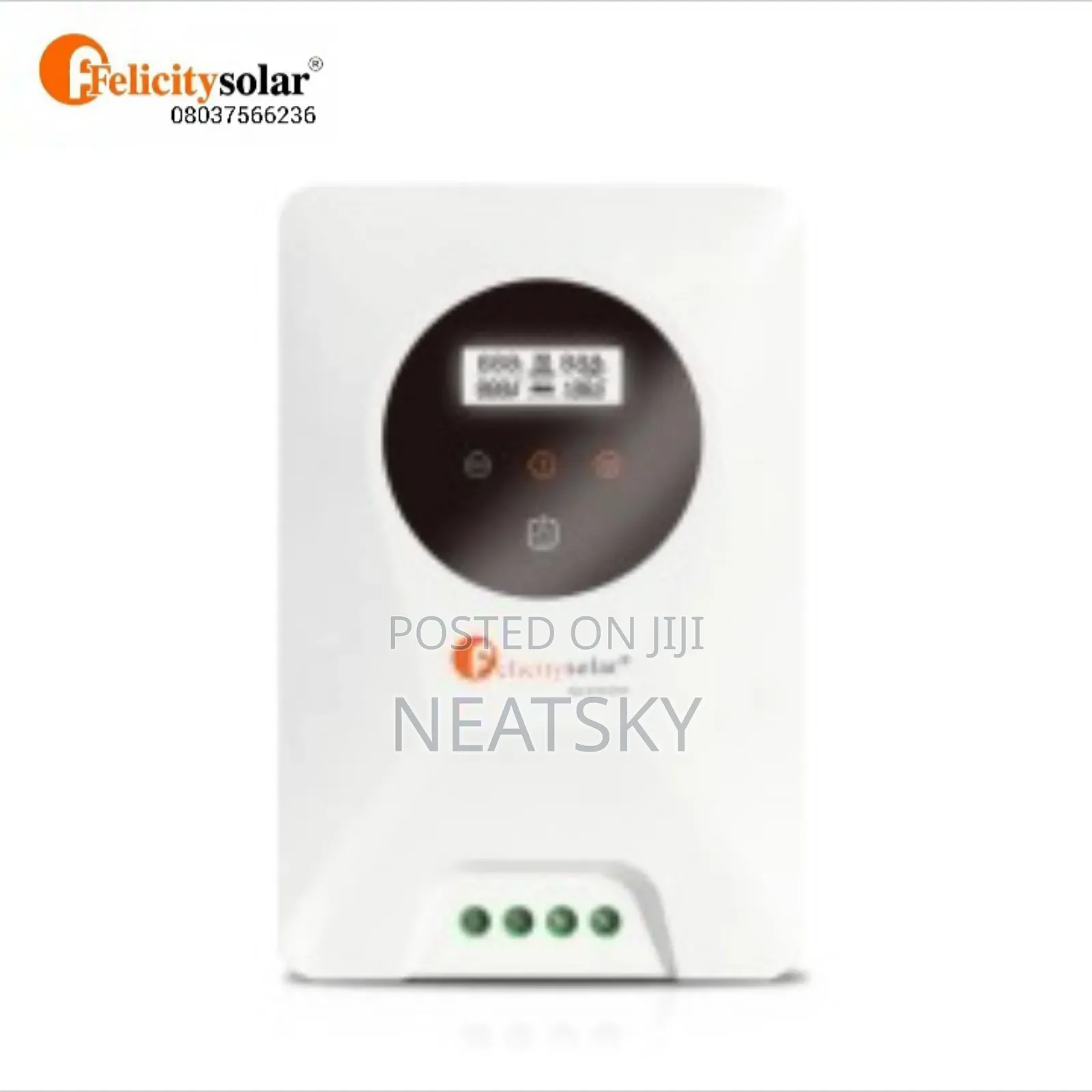

Solar Charge Controller (Fl- 100a)

+1

Felicitysolar

Brand

Charge Controllers

Type

Brand New

Condition

Store address

Enugu State • Enugu

shop 3 college road opposite WTC estate and UNEC campus

Closed now

• Mon - Sat, 08:00-20:00

Controller specifications model: fl-sccm10048-ii maximum solar input voltage: 190v nominal system voltage: 12, 24, 48vdc (auto detection) maximum battery current: 45a dc array mppt voltage range: 12vdc/24vdc/48vdc pv array mppt voltage range: 15-190vdc / 30-190vdc-60-190vdc maximum input power: 12volt: 1375watts 24volt: 2750watts 48volt: 5500watts charging algorithm: 3-step charging stages: bulk, absorption, float battery settings flooded battery: 14.6v/29.2v/58.4v agm/gel battery (default): 14.1v/28.2v/56.4v overcharge voltage: 15v/30v/60v overcharge restart voltage: 14.5v/29v/58v battery discharge voltage: 8.5v/17v/34v battery over discharge voltage: 9v/18v/36v product size (h*w*d, mm): 283 * 180 * 105 \text{mm} product weight (kg): 5.1kg storage temperature: -40^c 75^c enclosure: ip31 (indoor & vented)

Show contact
