TES1550 - Multimeter for Automotive Testing
The TES-1550 TES-1550 Digital Inductive Tach/Dwell Multimeter is a hand-held digital multimeter designed to measure DC and AC voltage, DC and AC current, frequency, resistance, audible continuity, diode test, capacitance, dwell and engine RPM via an inductive (clamp-on) jaw. It comes with auto-power off and water-proof ABS housing.
SPECIFICATION:
Numerical Display: 3-3/4” digital LCD; With maximum reading of 3999 with bar graph; With indications such as measurement values, unit symbols, decimal point, polarity, over range and low battery.
Dimension (LxWxH): 184mm x 82mm x 42mm
Weight: 360g (Approximate)
Power Source: 2 pcs. of "AA" of 1.5V battery (400hrs. approximate)

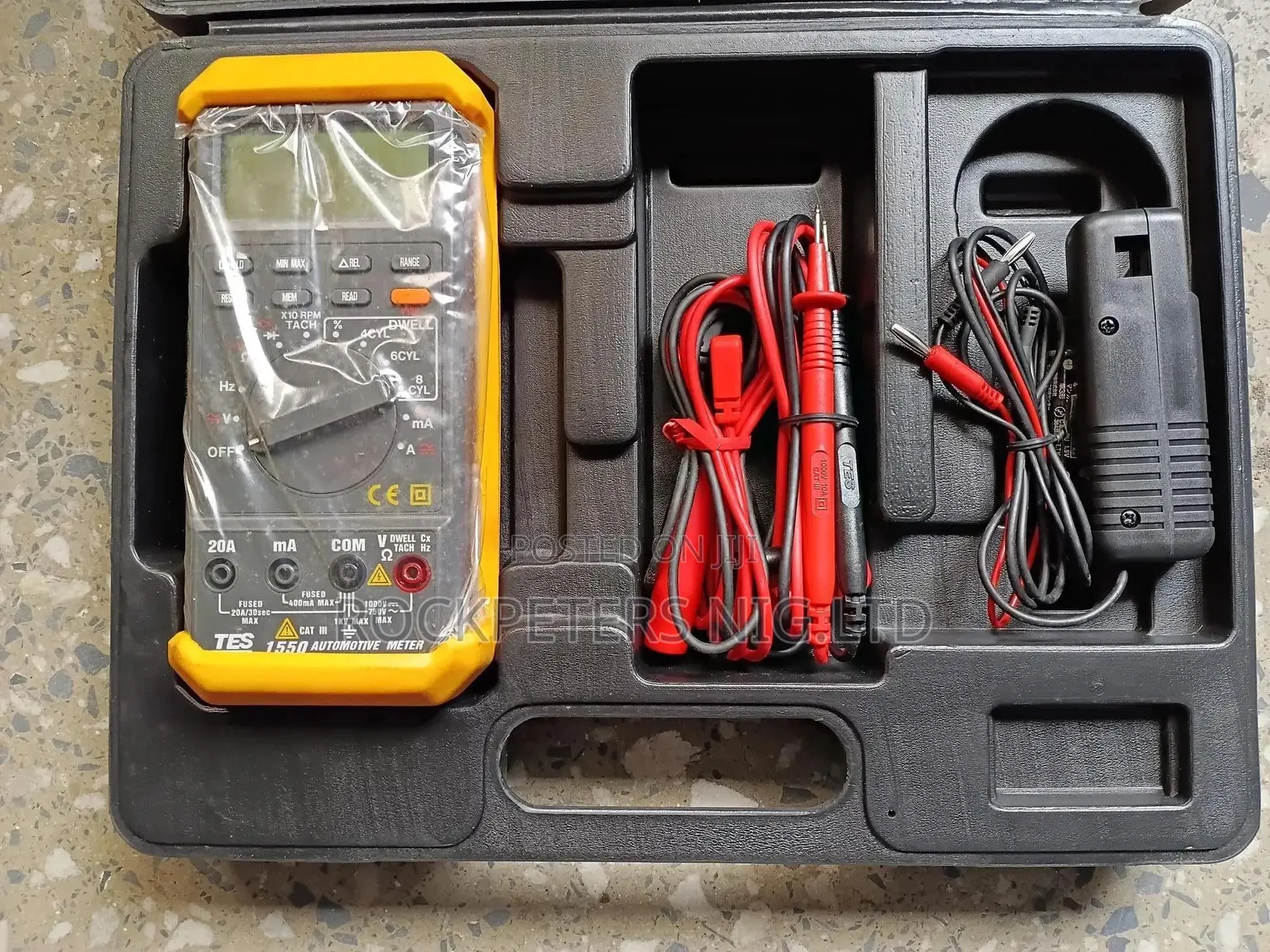

Accessories: instruction manual, thermo case TP-E06, spare fuse (0.5A/250V) and test leads
Tachometer (Manual)
Tacho: 10 to 1
