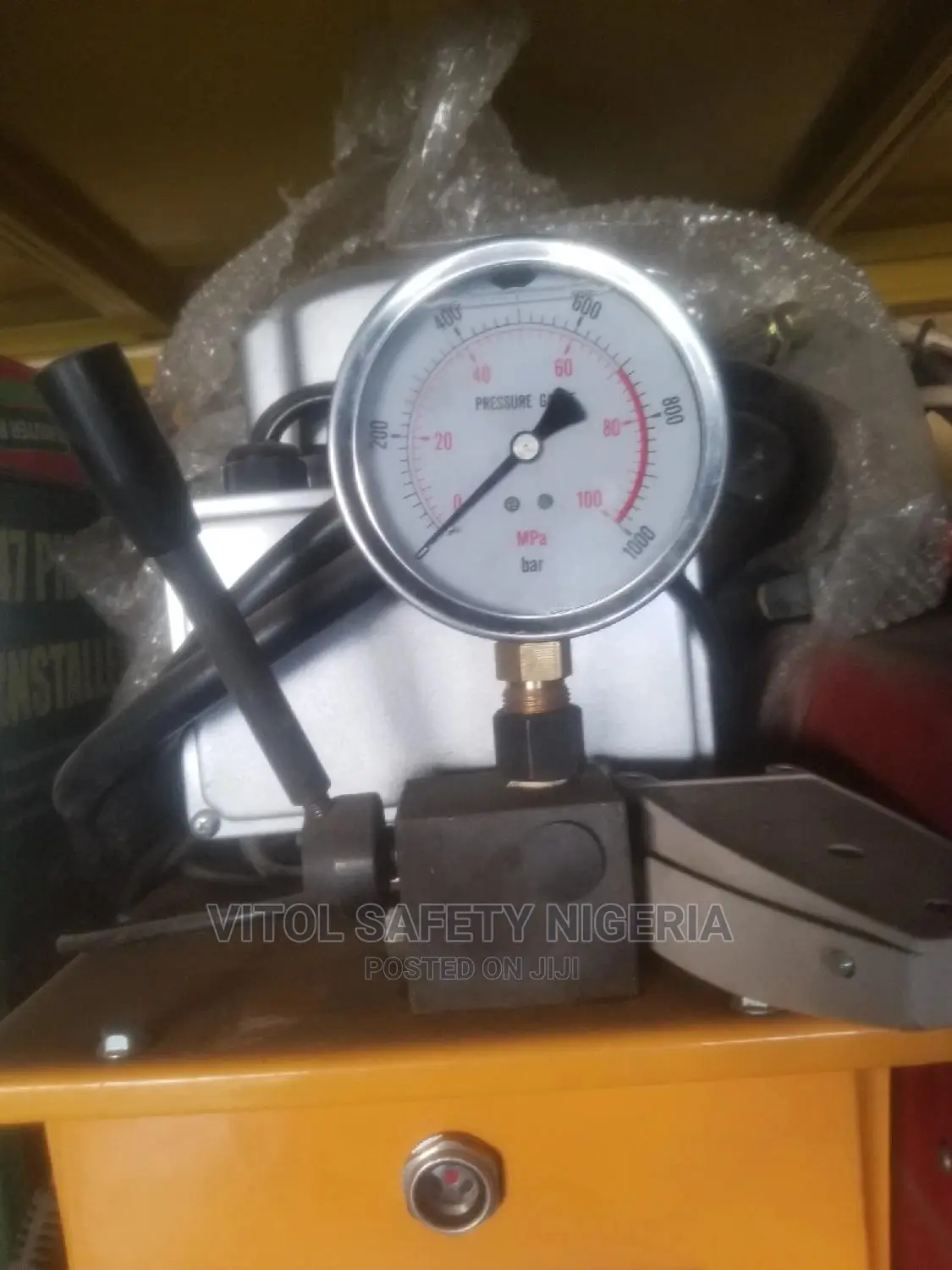

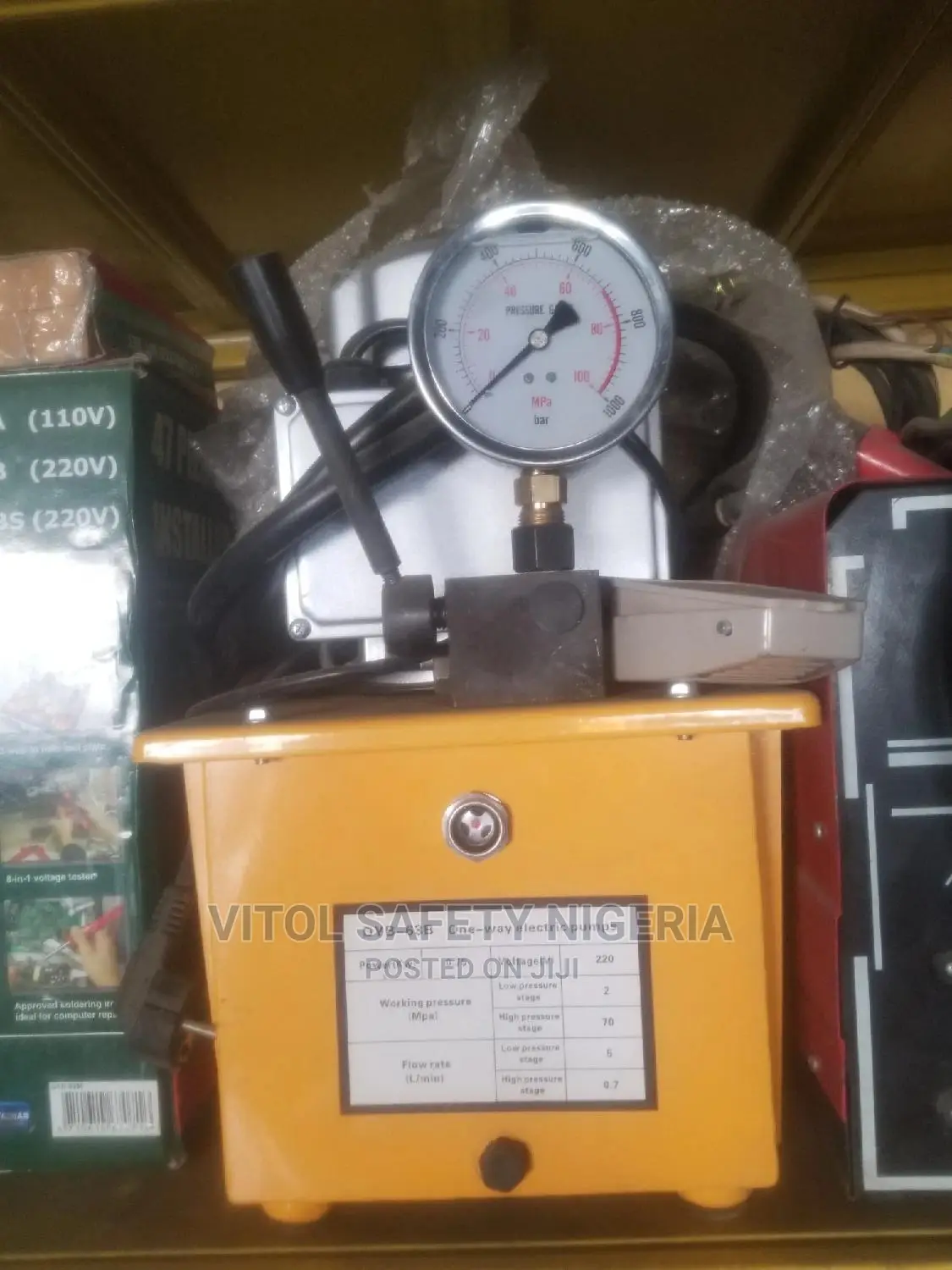

Electric Driven Hydraulic Pump Pedal Solenoid Valve Control equipments 2-70 Mpa

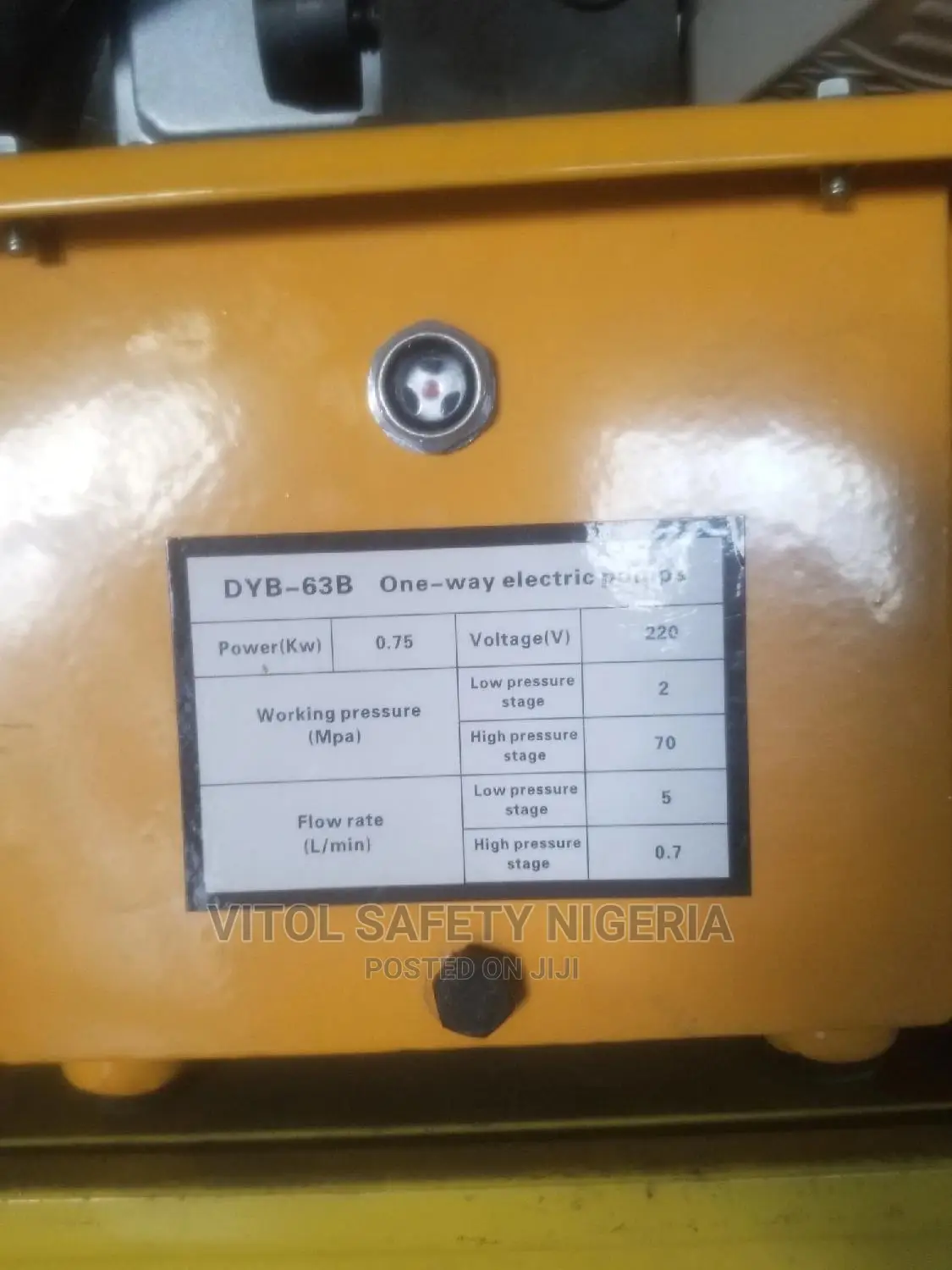

Specifications:
Input voltage: AC 110V 60HZ
Flow rate: 0.6L/min(>7Mpa) - 5L/min(<7Mpa)
Working pressure: 290PSI - 10152PSI(2Mpa - 70Mpa)
Oil capacity: 7L
Motor power: 750W
Motor speed: 1400r/Min
Machine size: 360X280X440mm(14.2”x11”x17.3”)
N.W.: 28KG
Operation Instruction:
1. Open the filler before use, the electric pump and power connections before oiling, then press down the black button which next to the motor to open, press the manual operation switch (up), after a few air pressure, press the manual operation switch (down), turn off the motor, connected to tubing. (The pressure should not exceed 63Mpa when air pressure, in order to avoid damage)
2. Open the motor after the pump connect with the equipment, and placed the operation valve in pressurized position after the motor rotates 1-2 minutes, this moment the hydraulic oil come into the cylinder to perform the work, and the output of
