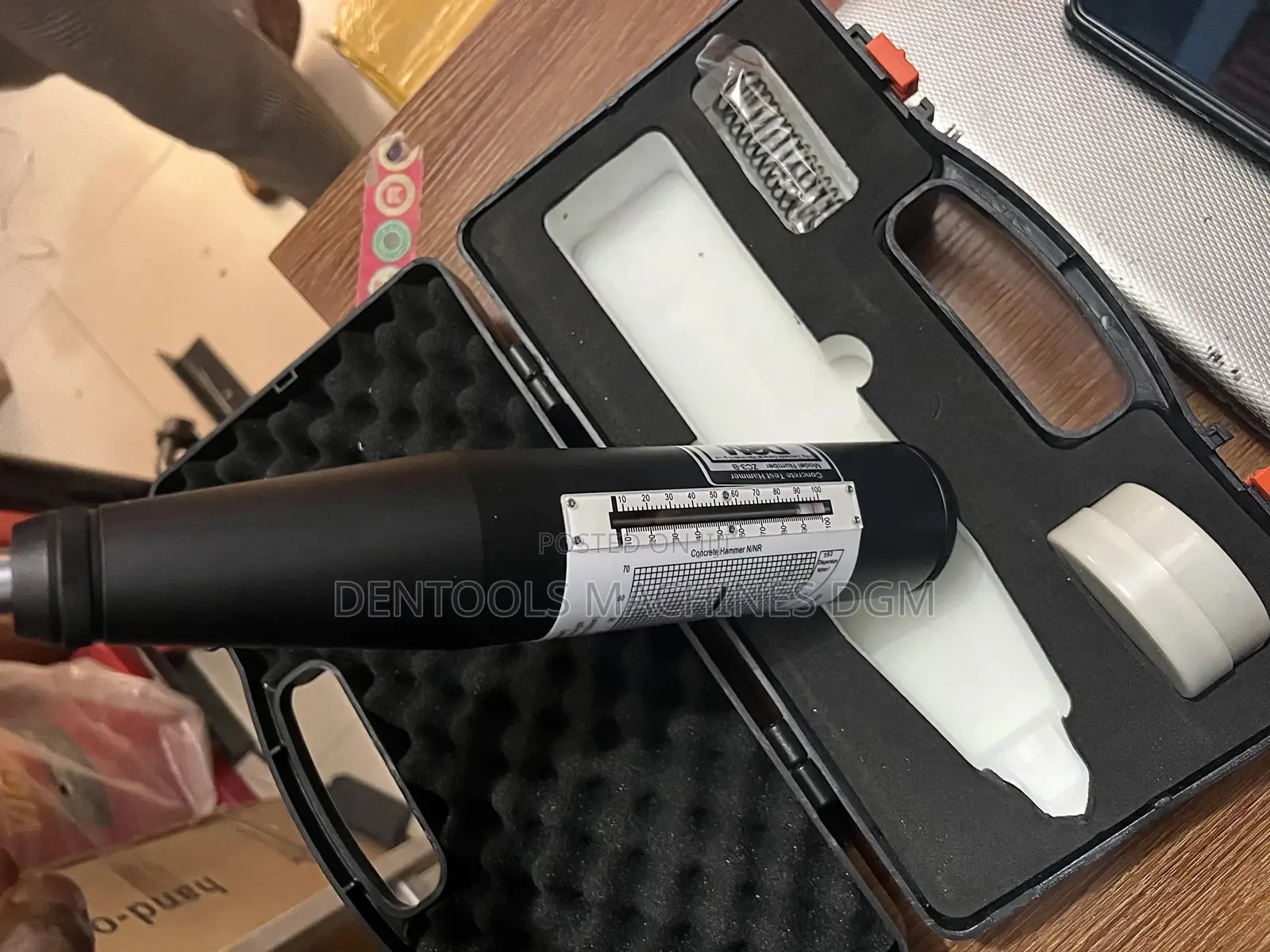

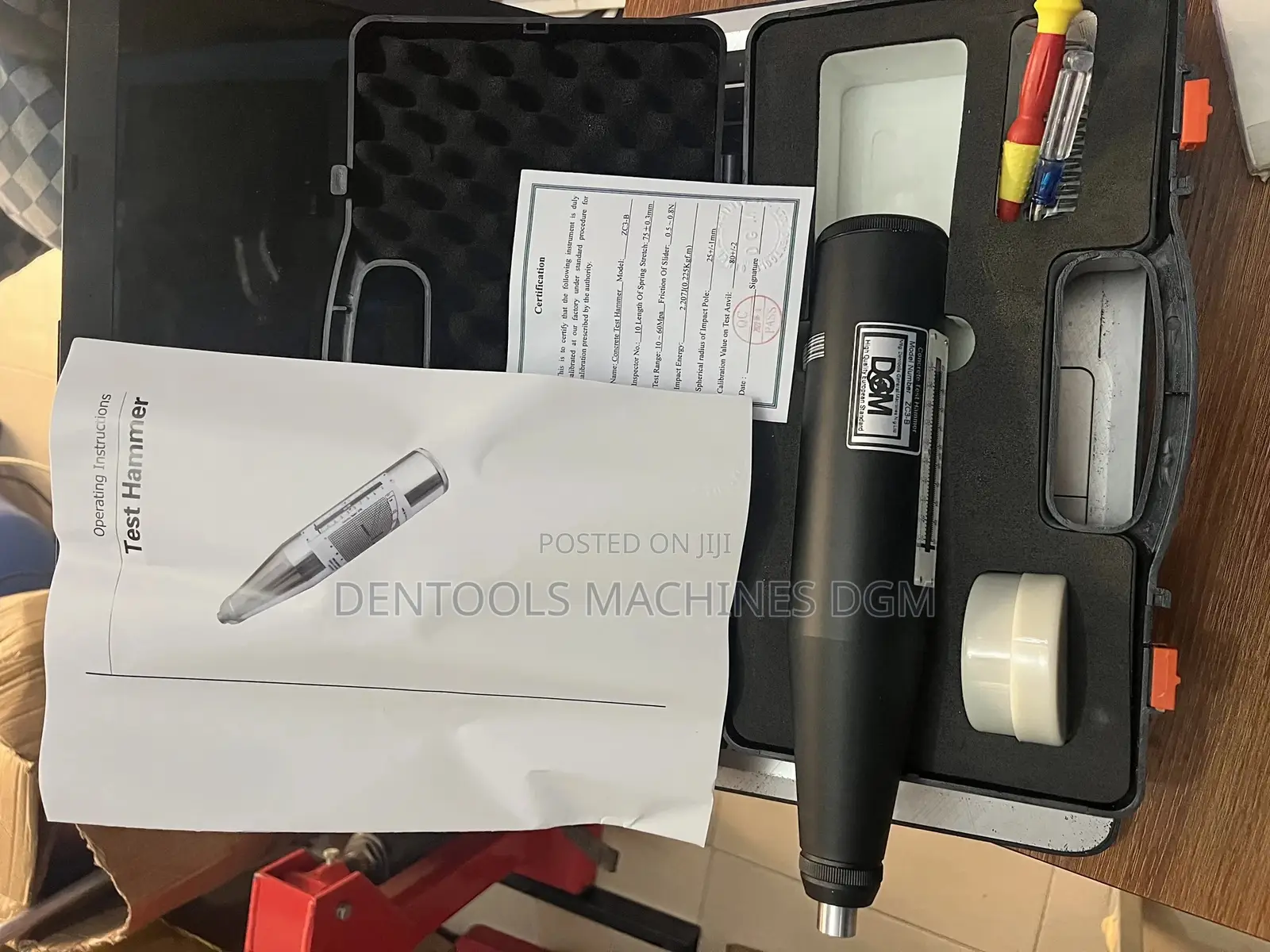

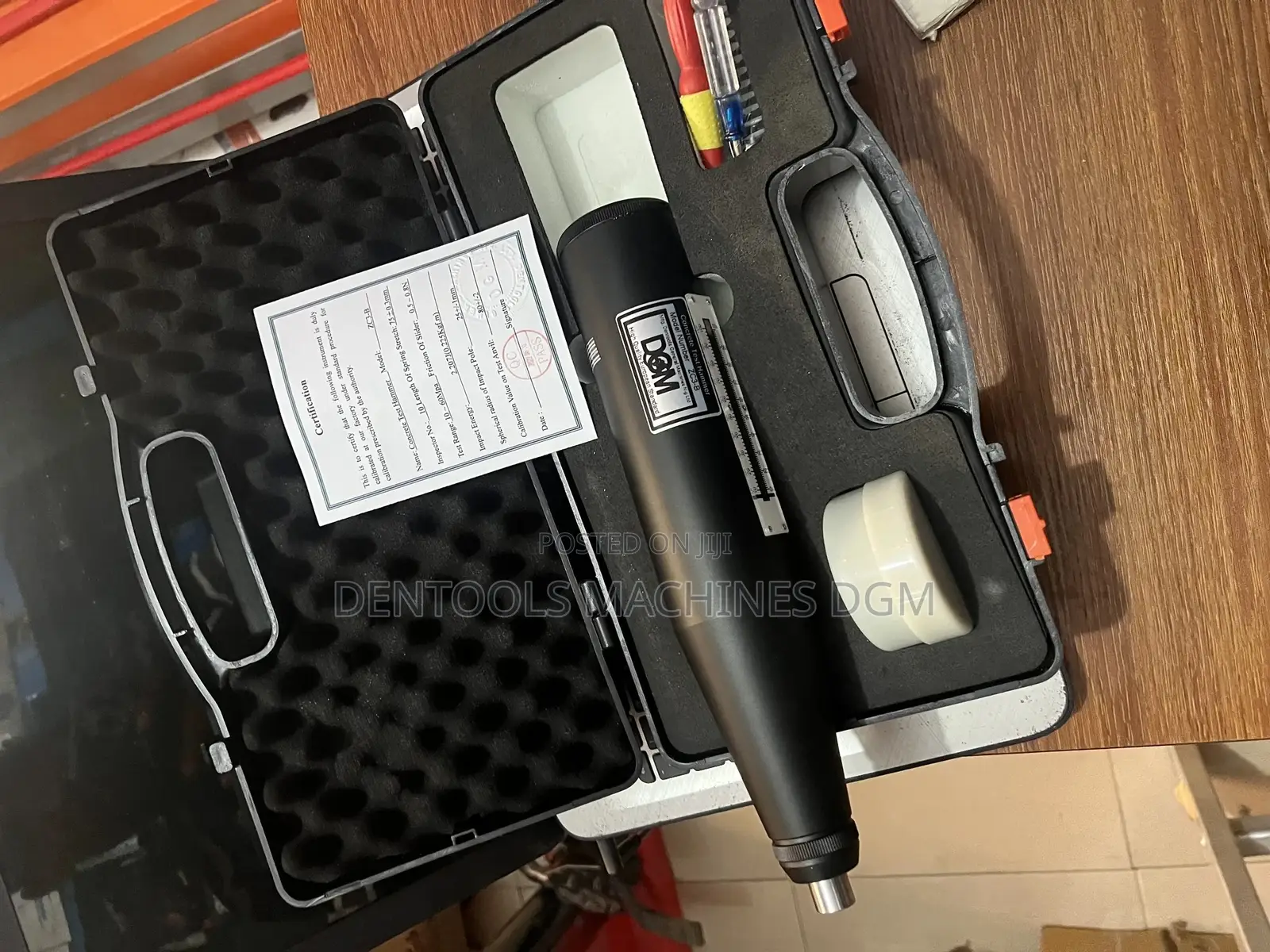

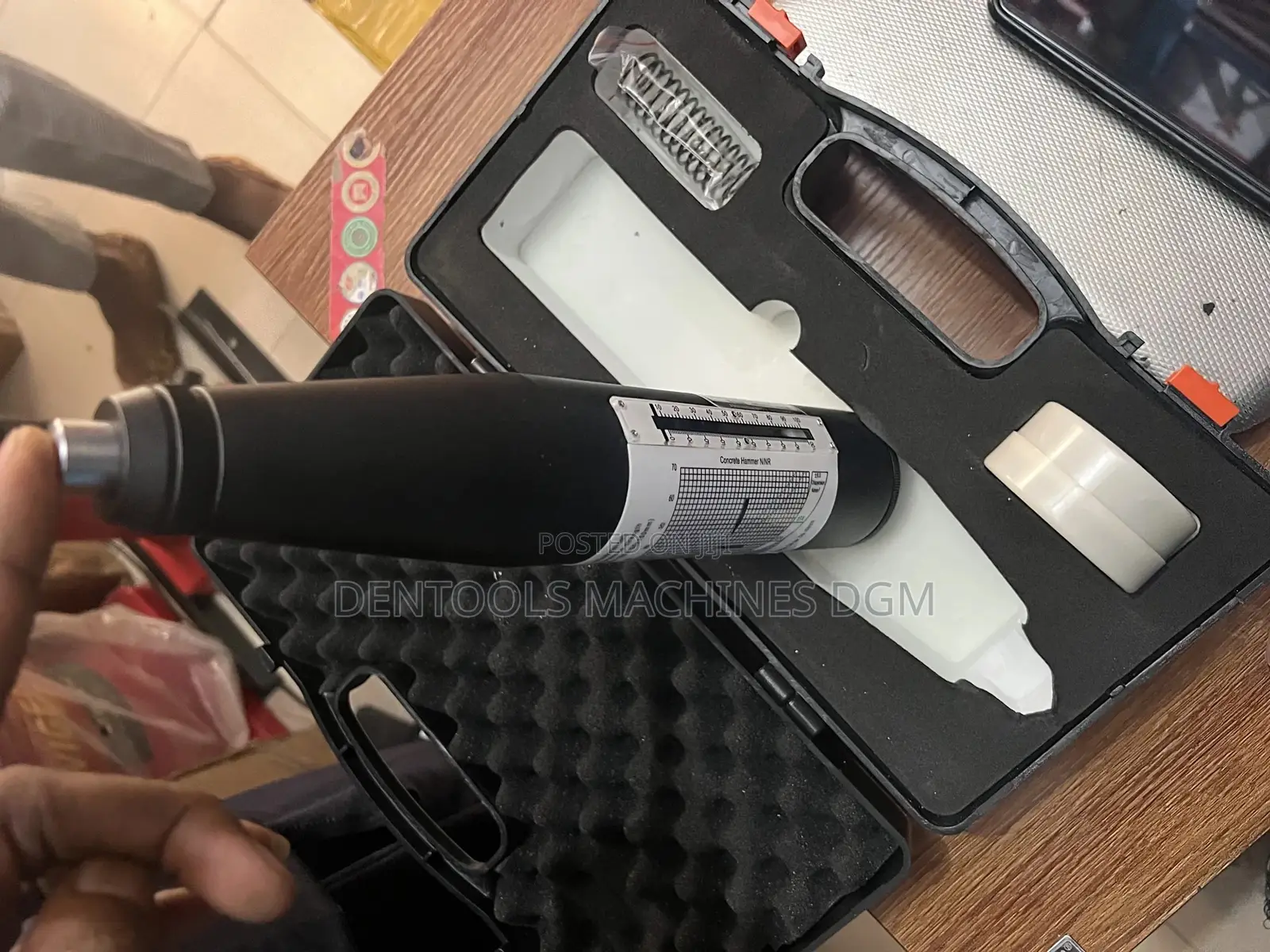

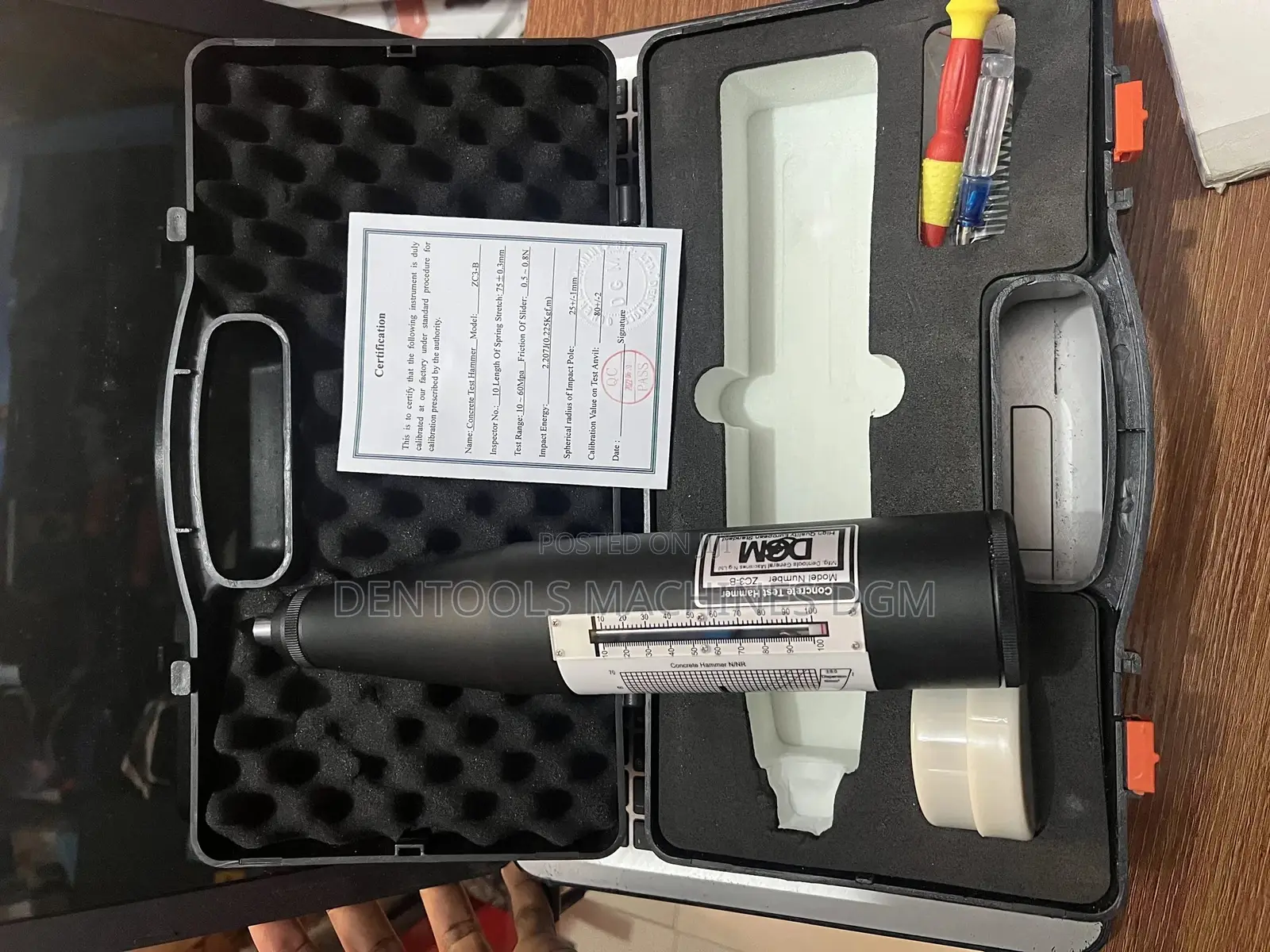

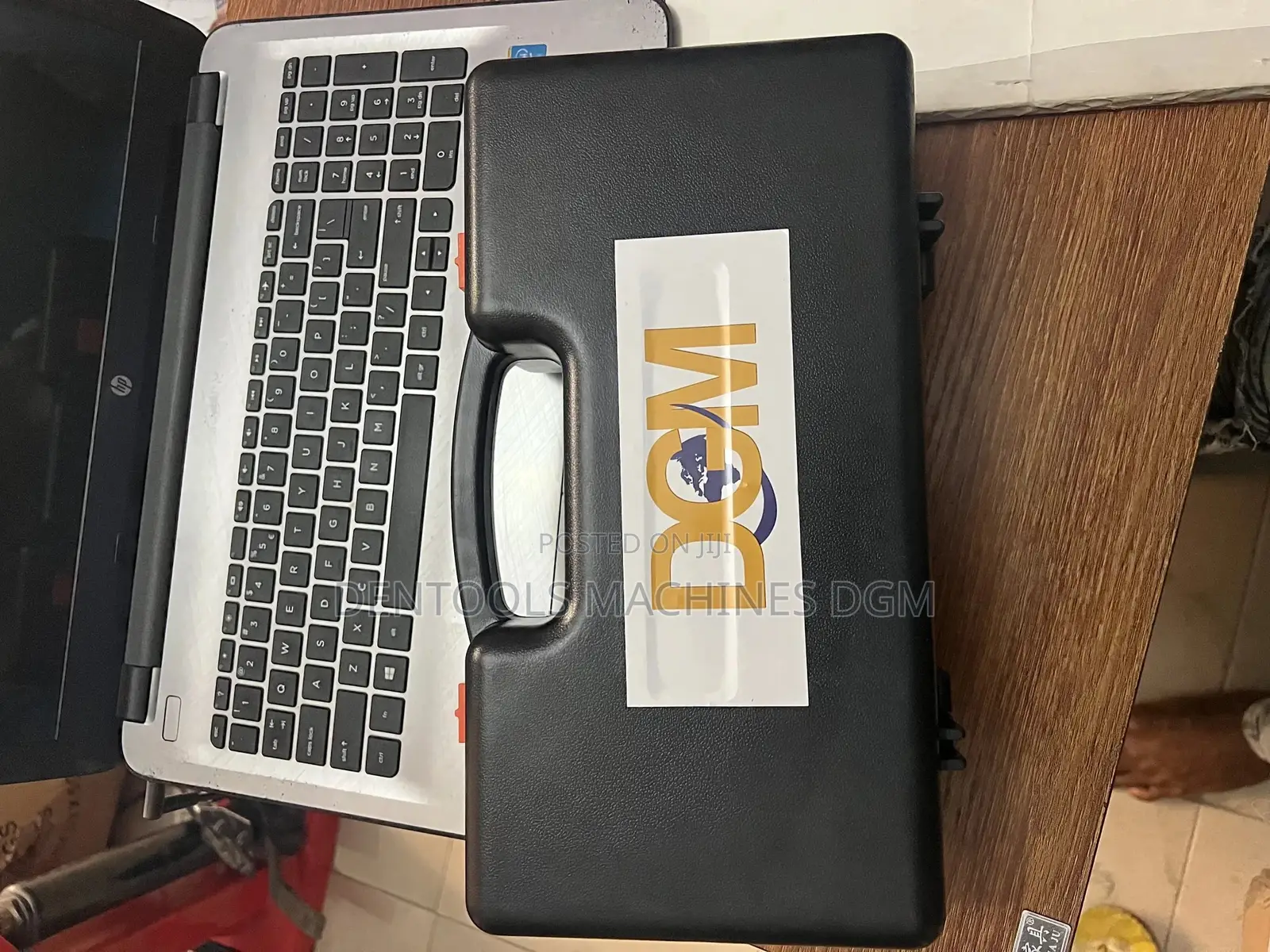

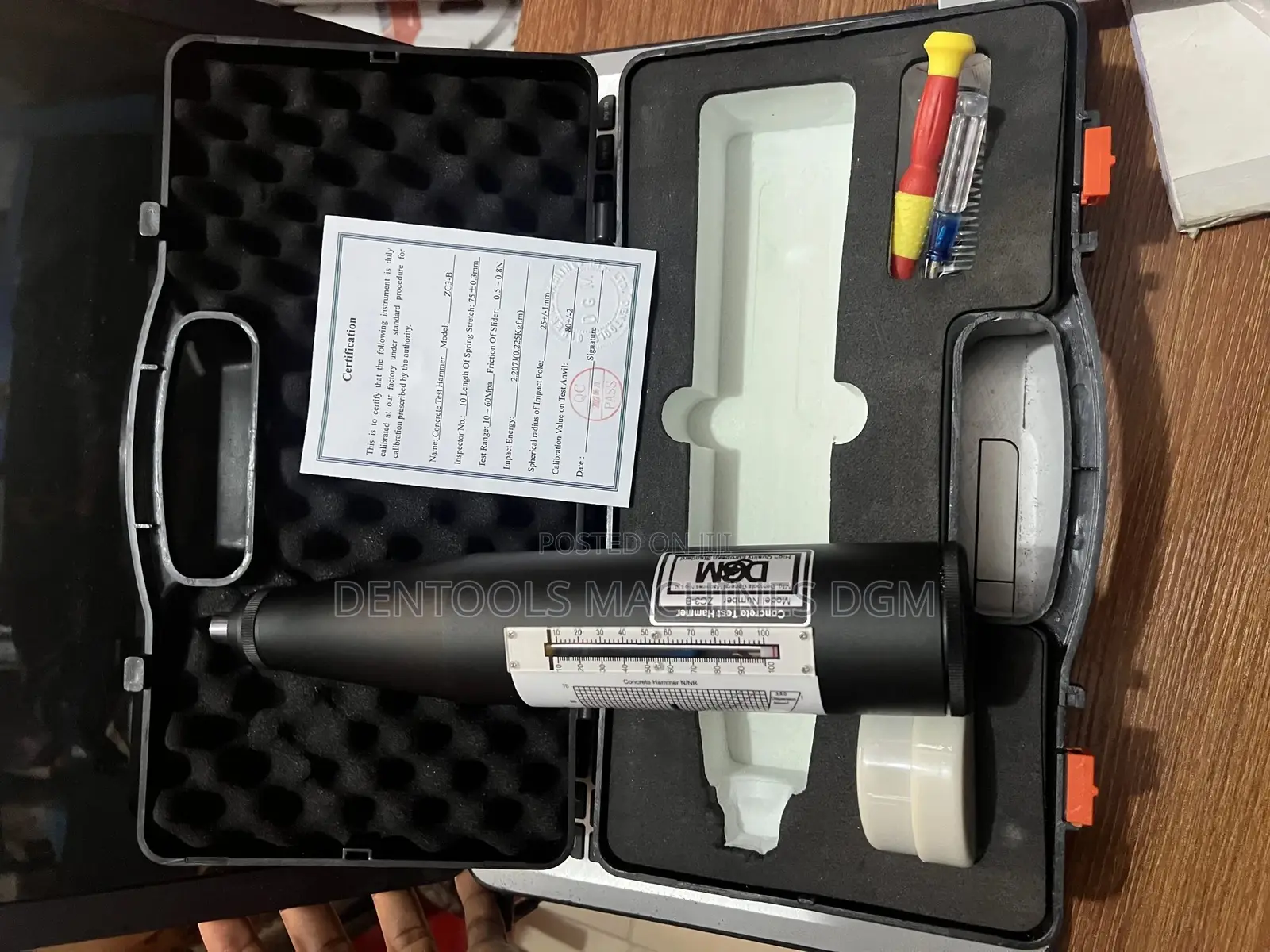

Concrete Test Hammer New Model
Brand New
Condition
Other
Type
Store address
Verified
Verified
4
Lagos State • Surulere
Shop 17 Favour Plaza Tools and hardware center, Trade Fair Complex
Open
• Mon - Sat, 08:00-17:00
Lagos State • Amuwo-Odofin
MOSDAN PLAZA, Alakijah Bus stop Lagos Badagry Express way.
LIPODENT BONDED TERMINAL Alakijah Bus stop
Open
• Mon - Sun, 08:00-18:00
Concrete Test Hammers,Rebound Hammer, Schmidt Hammer
The concrete test hammer is used to evaluate the surface hardness of hardened concrete in order to evaluate the strength in various parts of the structure.
Characteristic:
Light, flexible, cheap, no power supply, easy to master, button using stretching process is not easy to fall off, the pointer is easy to adjust friction, which is the first choice of non-destructive testing instrument suitable for field use.
Main technical parameters:
Pointer length 20.0 ± 0.2 (mm)
Pointer friction 0.65 ± 0.15 (n)
Spherical radius at the end of bullet hit bar 25 ± 1.0 (mm)
Spring impact tension spring rigidity: 785.0 ± 40.0 (n / M)
Decoupling position of bullet hammer at the scale line "100"
Working length of spring impact tension spring 61.5.0 ± 0.3 (mm)
Impact length of bullet hammer 75 ± 0.3
Take off position of hammer at scale "0"
Fixed value of steel anvil rate 80 ± 2
