Model

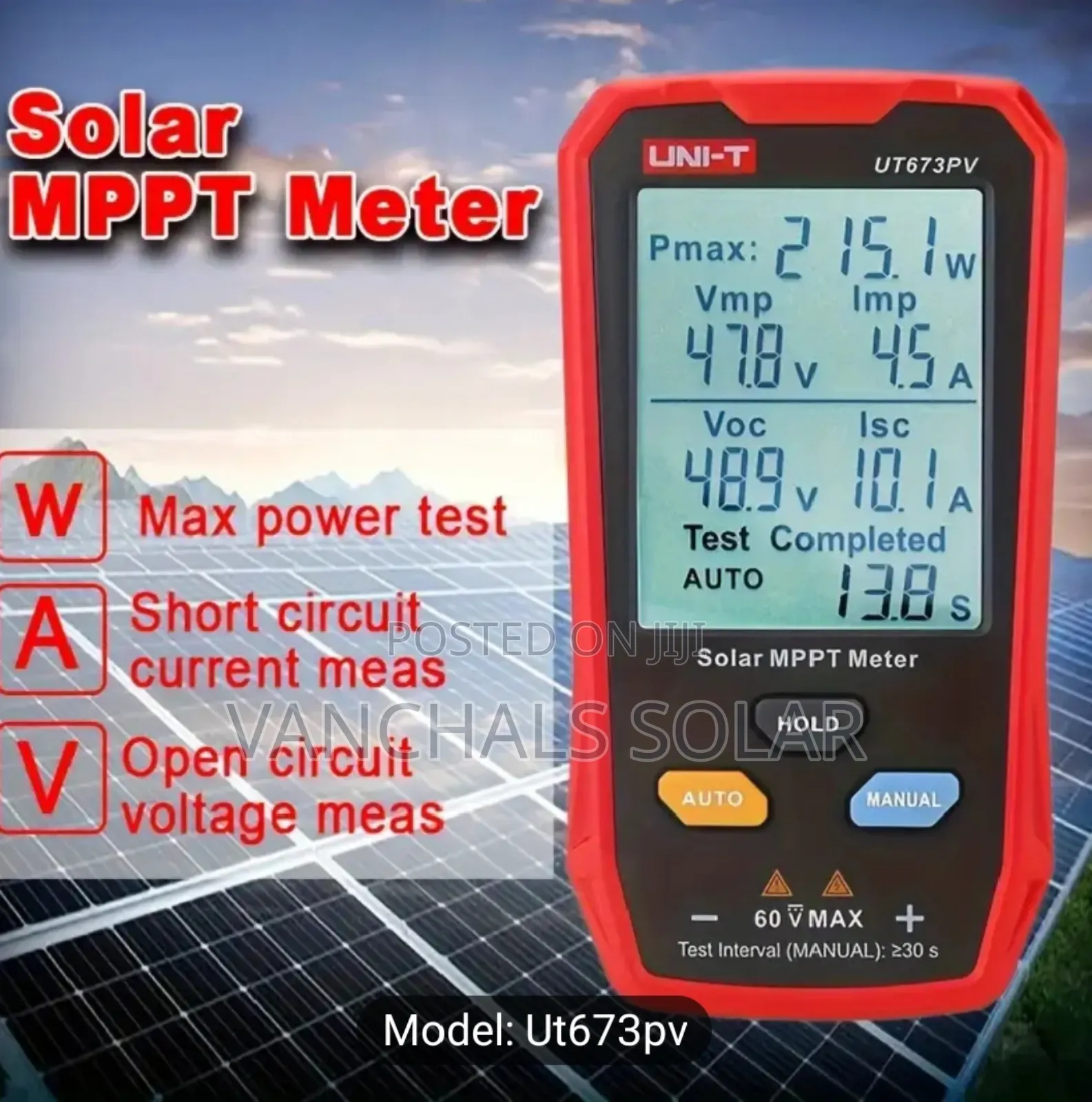

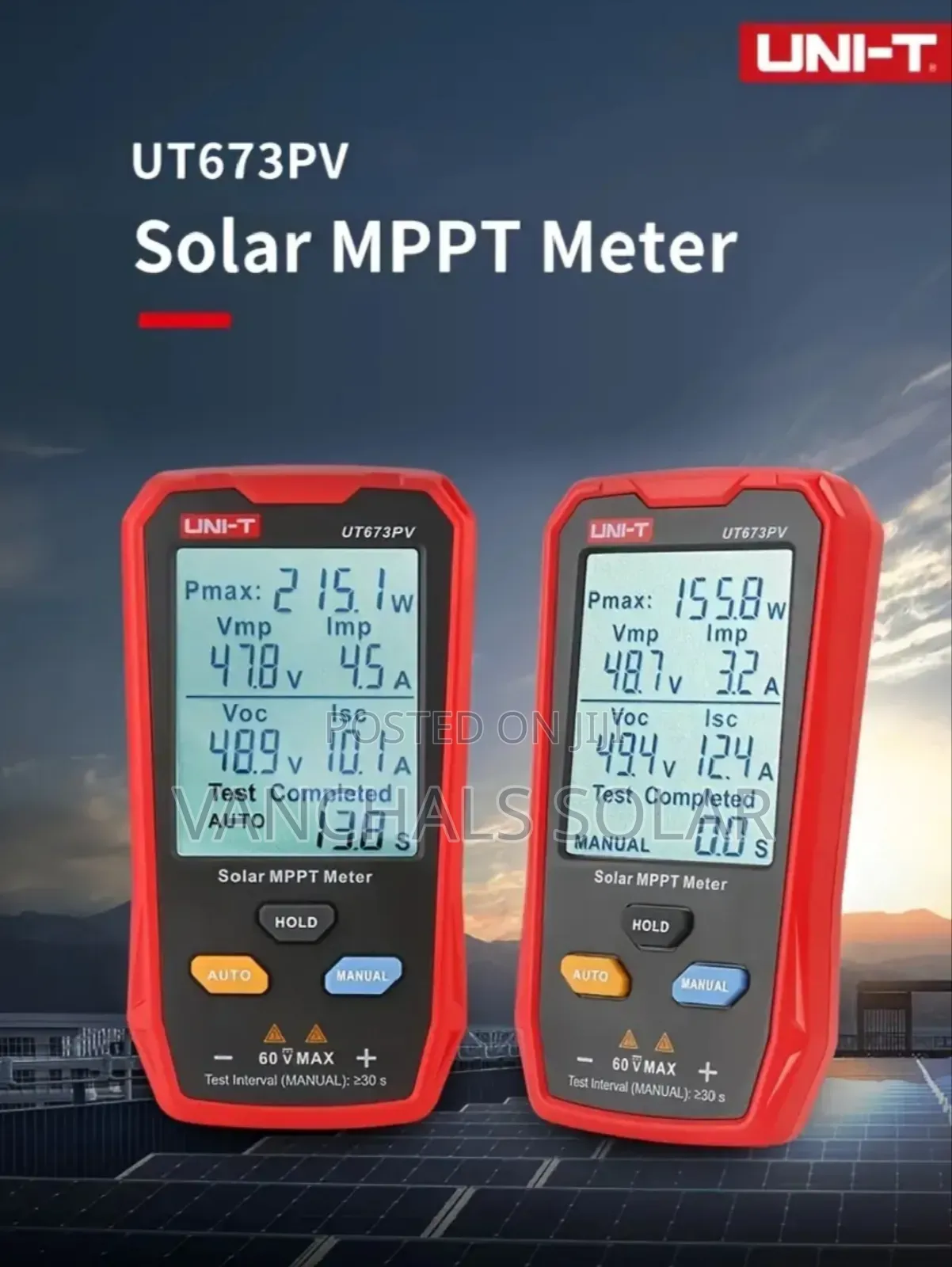

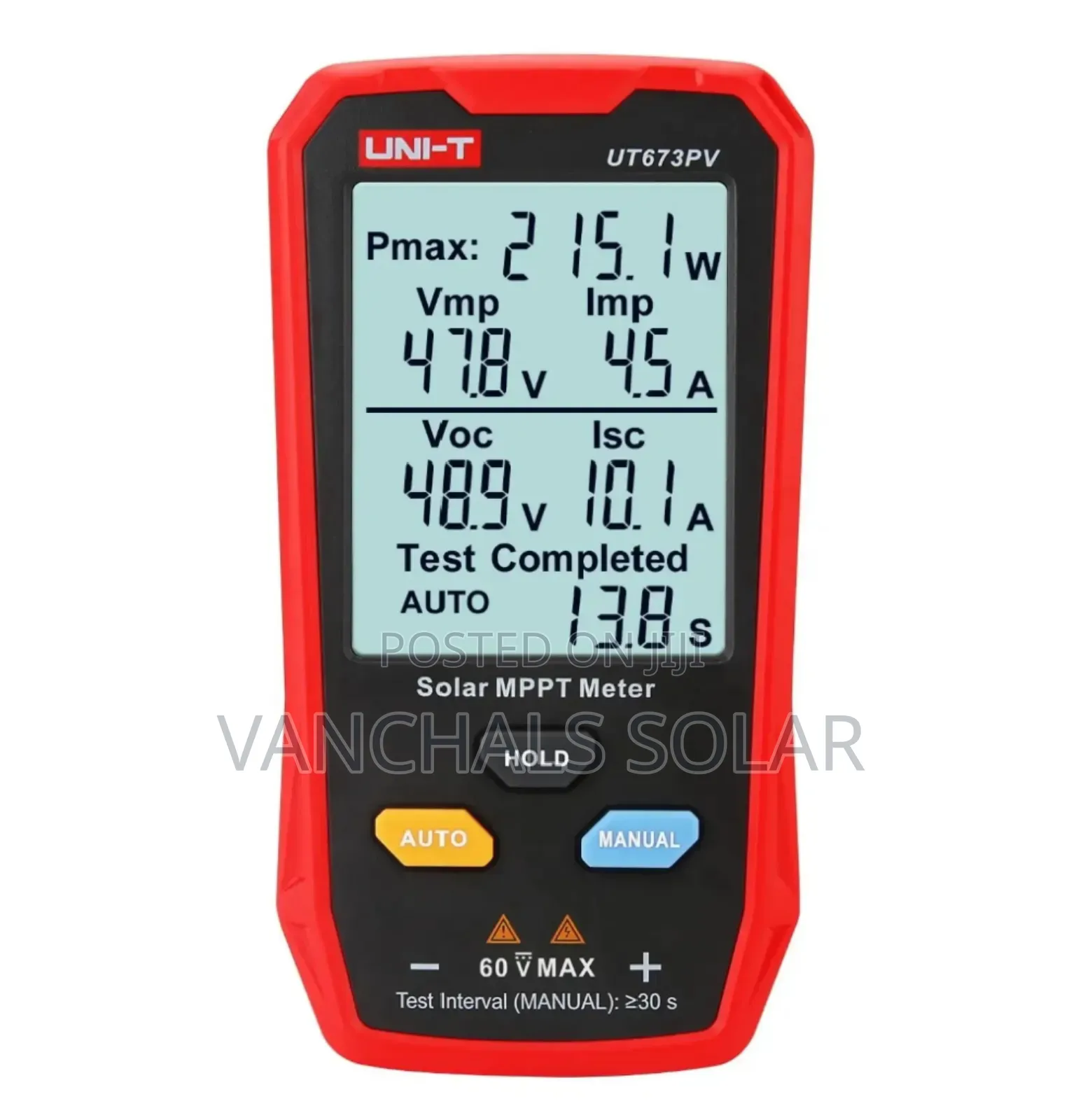

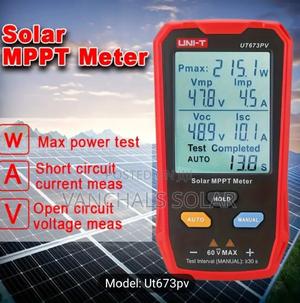

UT673PV
UT673PV Product Main Features

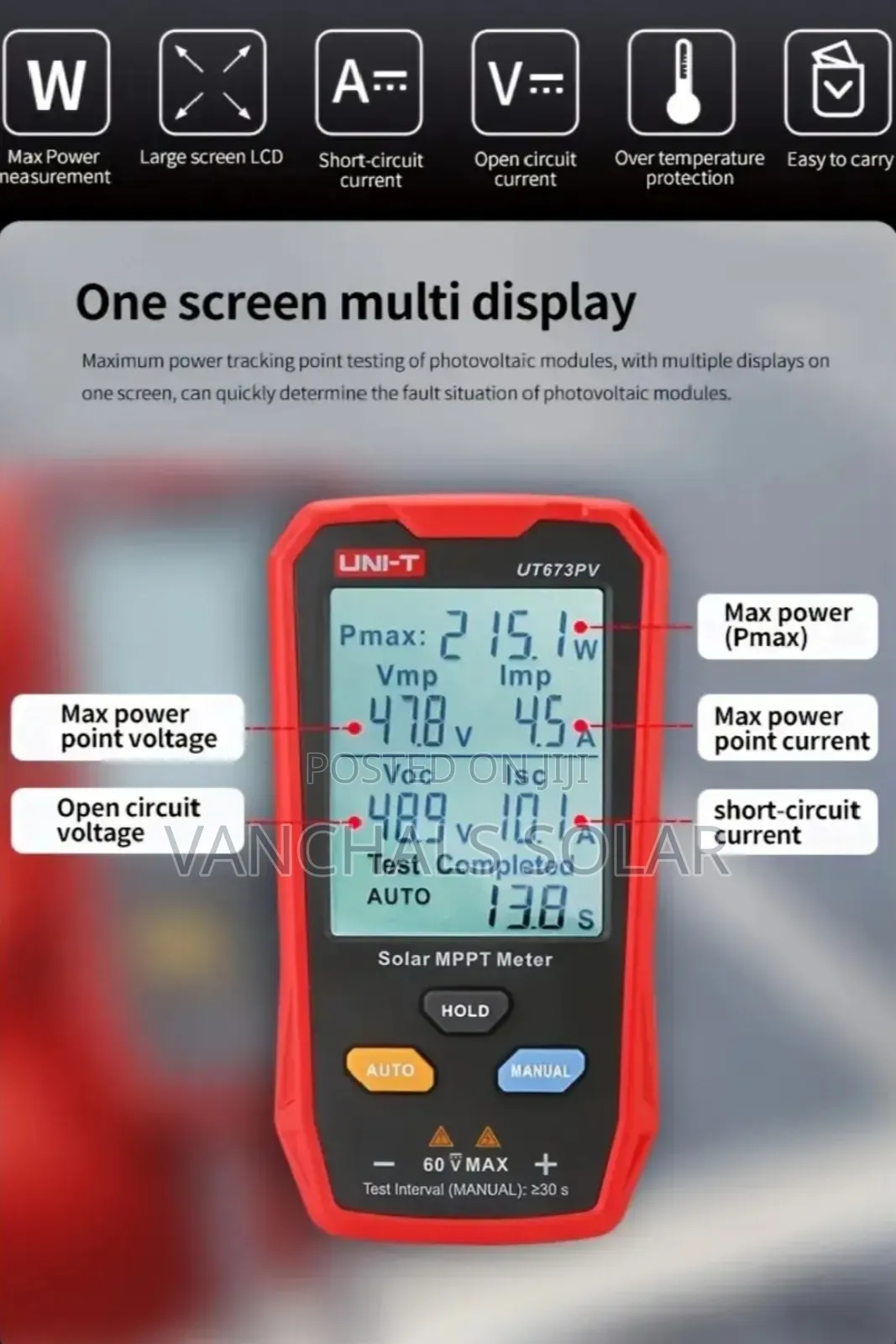

n Photovoltaic maximum power point tracking test: maximum power (Pmax), peak power HB voltage (Vmp),
Peak power current (Imp), open circuit voltage (Voc), short circuit current (Isc) display at the same time, quickly determine the failure of photovoltaic modules
n 800W maximum power test, to meet the industry head enterprise high-power double glass component test

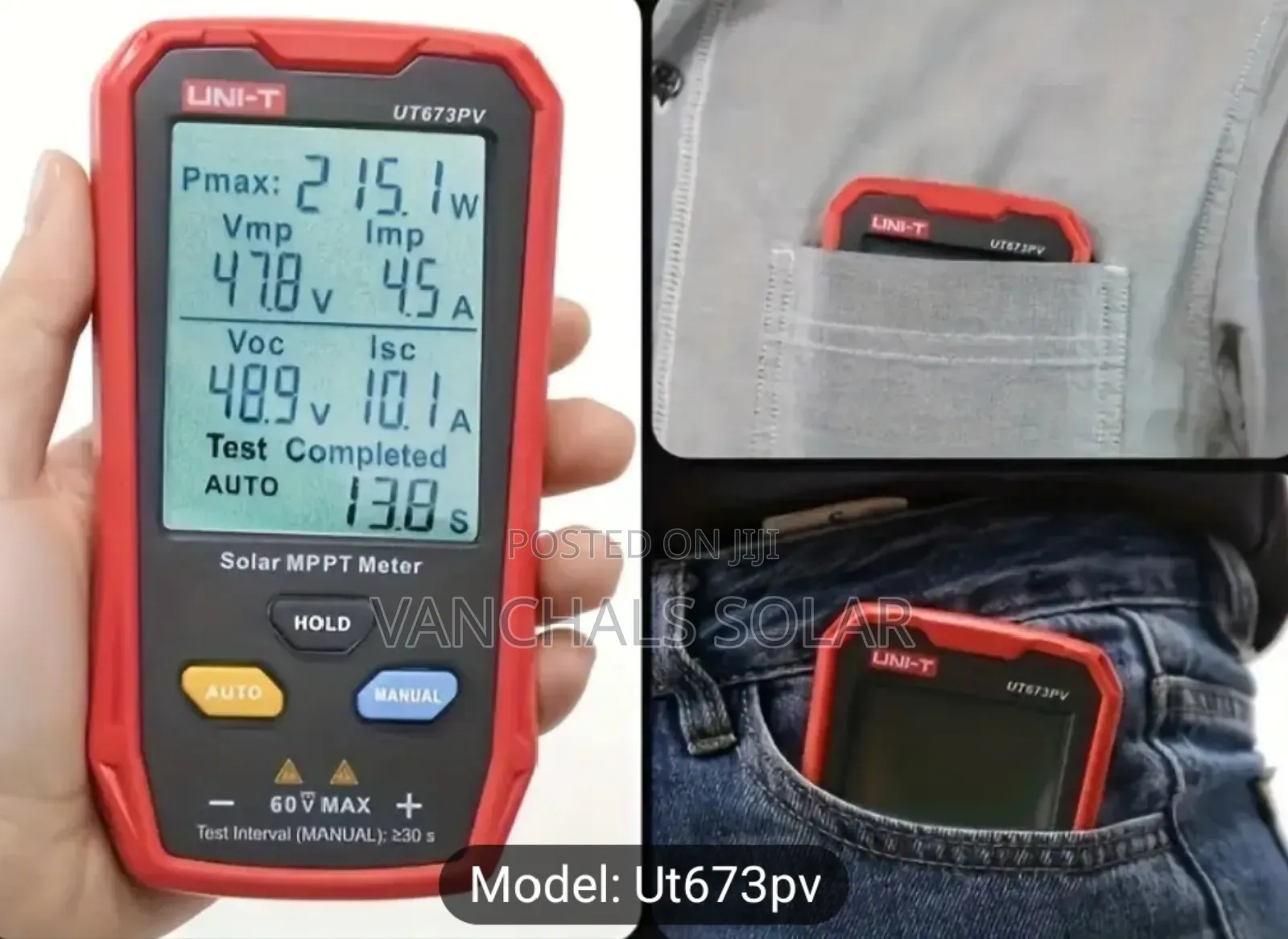

n Small size, palm size, easy to carry

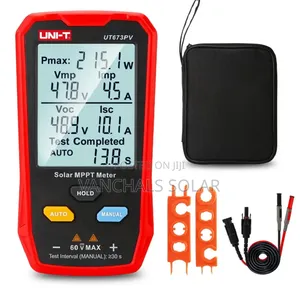

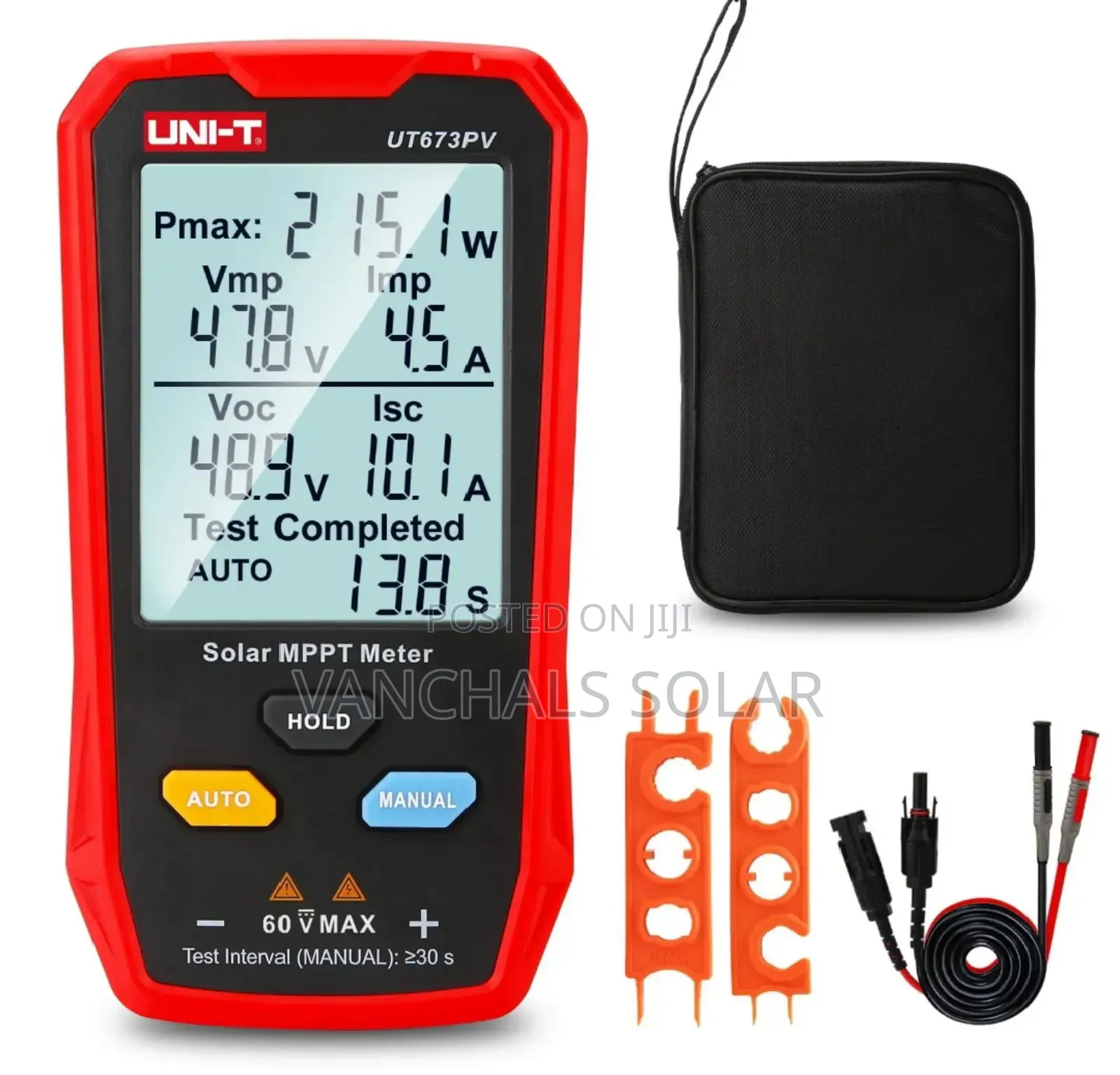

n MC4 test line connection, convenient and reliable measurement
n No battery power supply, photovoltaic panel direct power supply
Application
Photovoltaic module power generation efficiency testing
Maximum power test (Pmax)
5~800W
Peak power voltage (Vmp)
12~60V
Peak power current (Imp)
0~35A
Open circuit voltage (Voc)
12~60V
