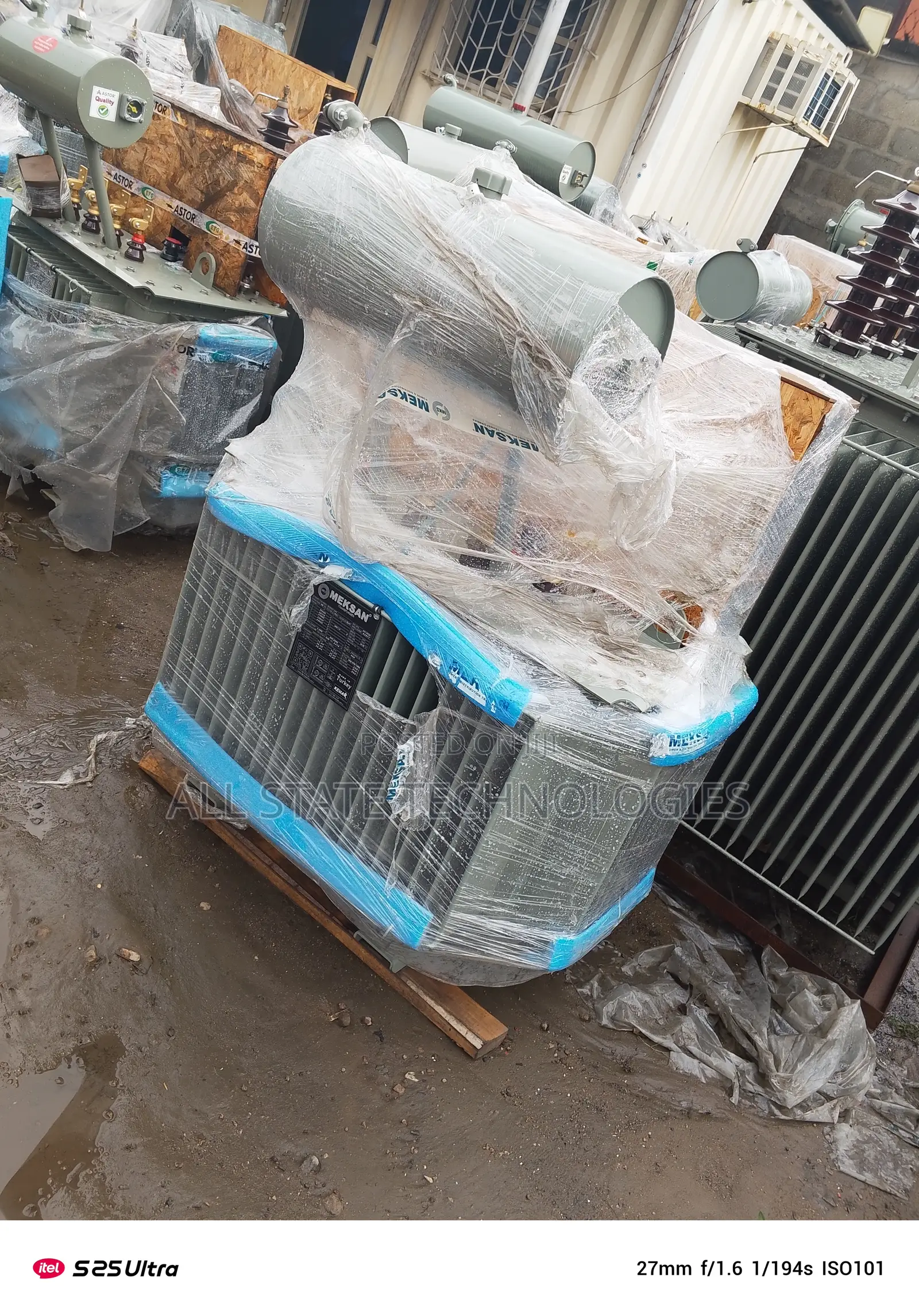

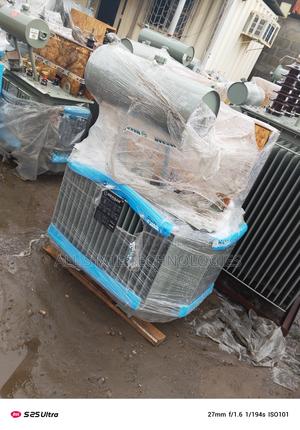

Meksan 200kVA / 33,000V transformer, a robust unit built for reliable power distribution and industrial performance:Rated Power: 200 kVA
Primary Voltage: 33,000 V (33 kV)
Secondary Voltage: 400 V
Frequency: 50 Hz
Cooling Method: ONAN (Oil Natural Air Natural) – passive cooling using oil and ambient air
Winding Material: Copper
Impedance: 6%
Losses:
No-load: 1.5 kW
Full-load: 3.5 kW
Weight: Approx. 1,200 kg
Dimensions: 1600 mm × 1000 mm × 1800 mm
Durability: Built with high-grade copper windings and oil-immersed insulation for long-term performance
Efficiency: Optimized for minimal energy loss during operation
Standards: Manufactured in accordance with IEC 60076 and TS 267 standards
