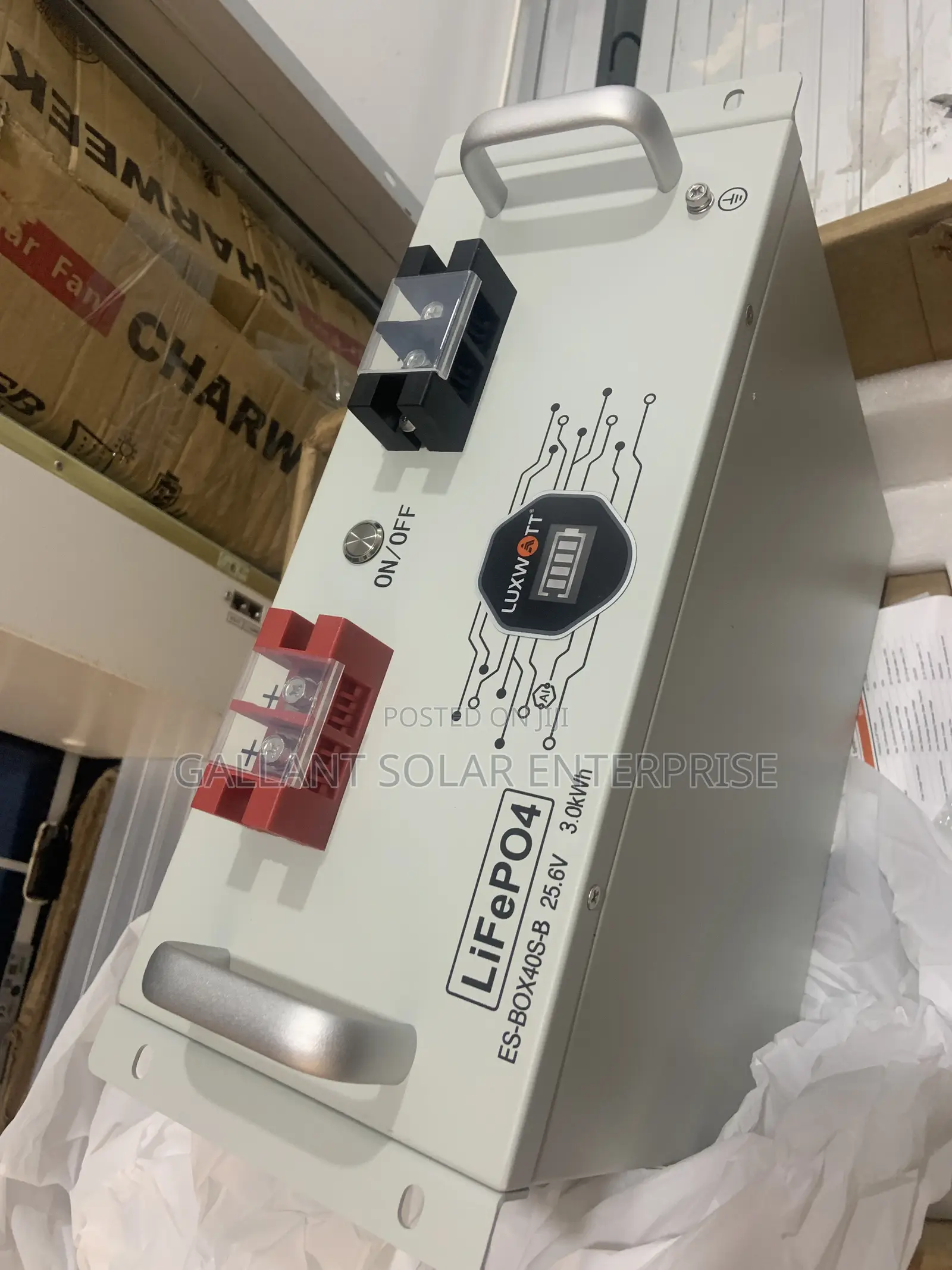

Luxwatt 3kwh Lithium Battery 24v
luxwatt
Brand
Deep Cycle Batteries
Type
100aH
Battery Capacity
Brand New
Condition
24 V
Rated Voltage
2.5kWh
Total Battery Energy
24v nominal
• capacity: 100ah
• total energy: 24v x 100ah = 2.4kwh ~ "3kwh" rounded
• usable energy: 2.1kwh @ 90% dod | 2.4kwh @ 100% dod
• battery type: lifepo4 - lithium iron phosphate
• cells: 8s grade a 100ah prismatic cells
• cycle life: 6000 cycles @ 80% dod. ∼10 years
• bms: smart jk bms 50a with lcd + bluetooth + app "luxwatt solar"
charge / discharge
• max charge current: 50a
• max discharge current: 50a continuous = 1200w
• peak discharge: 100a for 10 seconds = 2400w
• charge voltage: 28.4v - 29.2v
• low voltage cut-off: 22v - 24v adjustable
• charging time: 2hrs with 50a | 4hrs with 25a
• efficiency: 98%
• self discharge: <3% per month
• parallel: up to 16 units parallel = 38.4kwh
