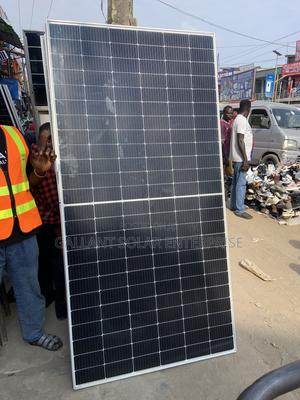

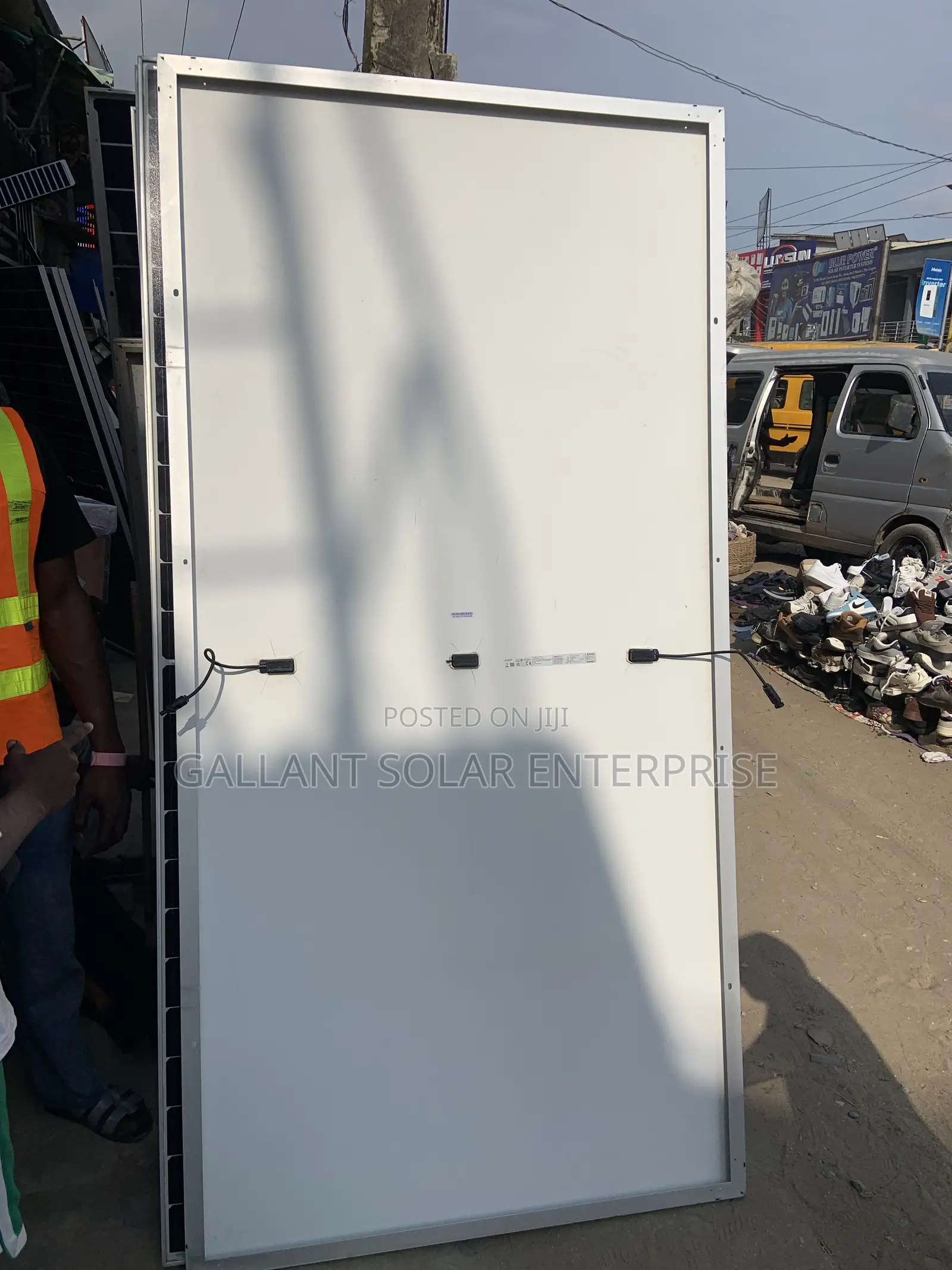

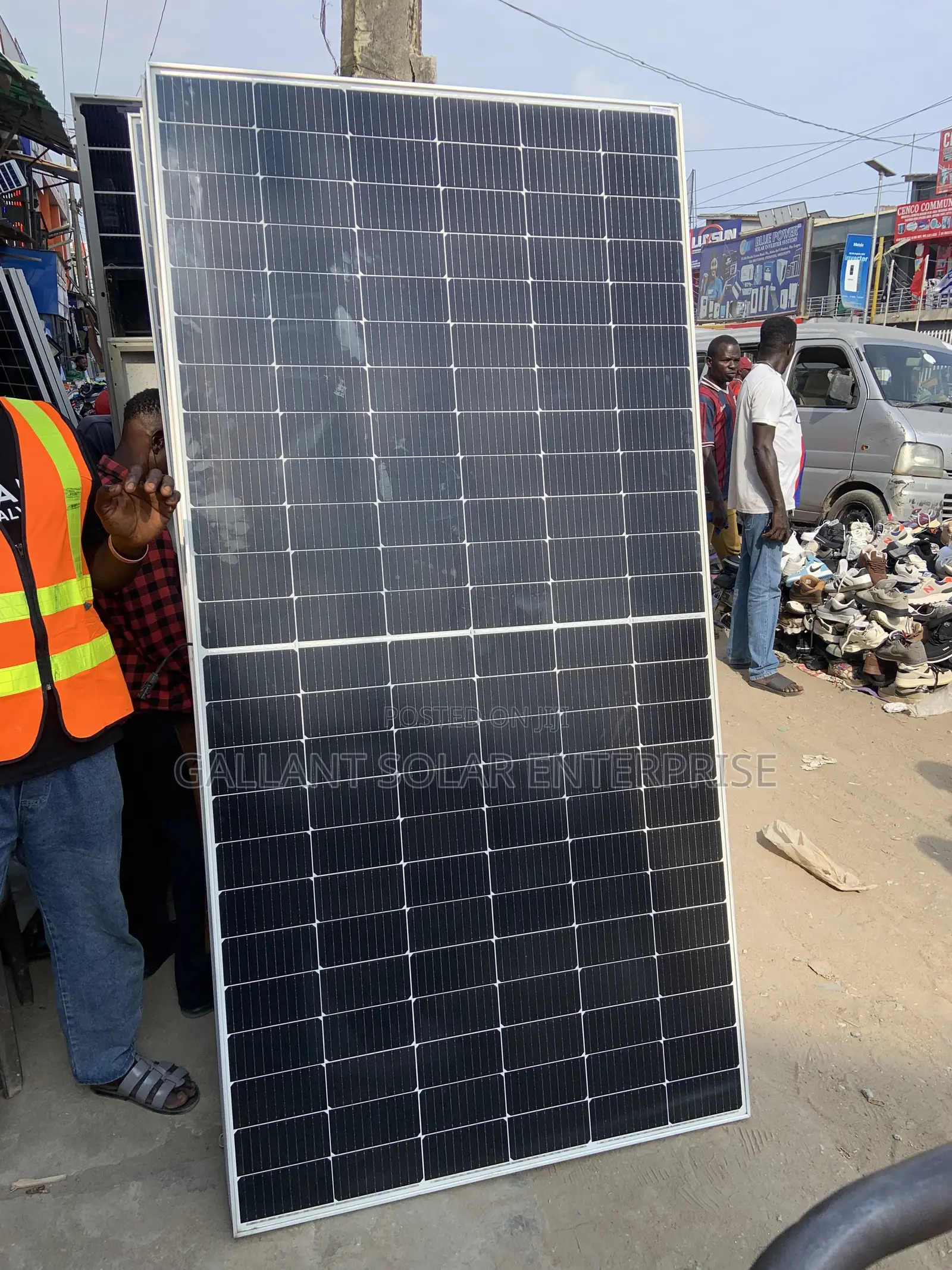

Complete 550w Jinko Panel
MP
Brand
Jinko
Type
Brand New
Condition
2278 x 1134 x 35mm l x w x t
• weight: 26.5kg
• frame: anodized aluminum alloy, 35mm
• glass: 3.2mm tempered glass, ar coating

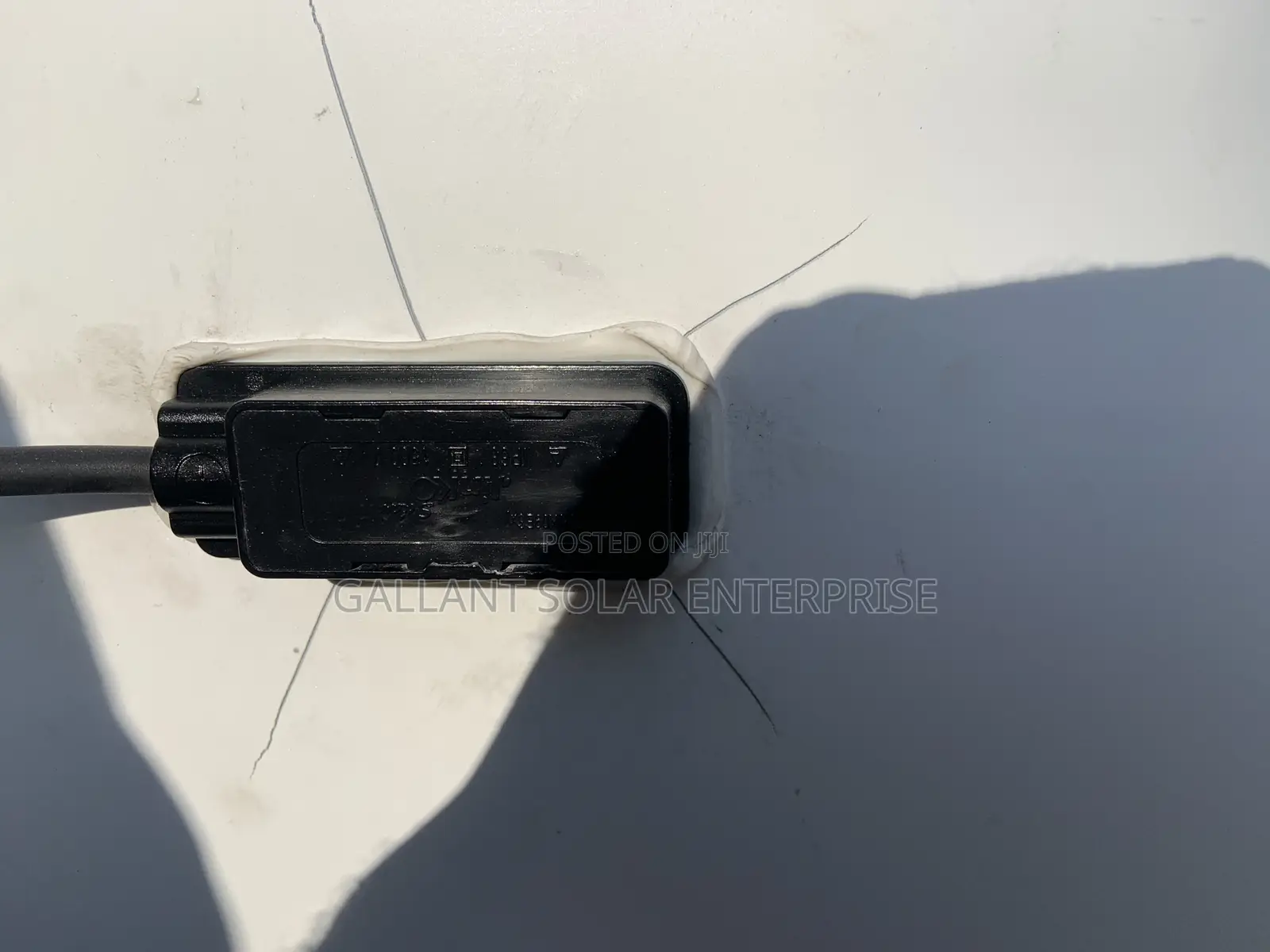

• junction box: ip68, 3 bypass diodes
• cable: 4mm2, 1200mm length with mc4 connectors
• mounting: 4x 14x9mm mounting holes
performance & warranty
• power tolerance: 0 ~ +3%
• temp coefficient pmax: -0.30%/°c for n-type, -0.35%/°c for p-type
• operating temp: -40°c to +85°c
• max system voltage: 1500v dc
• wind load: 2400pa | snow load: 5400pa
• product warranty: 12 years
• performance warranty:
○ n-type: 30 years, 87.4% @ year 30
○ p-type: 25 years, 83.1% @ year 30
• certification: tuv, iec61215, iec61730, ce, cqc, iso9001
₦ 95,000
Negotiable
