Cast Fire Alarm Addressable Heat Detector
Other
Type
Other
Brand
Wired
Connectivity
Brand New
Condition
Store address
Lagos State • Ikeja
2A, Oritshe Street, off Awolowo Road.
Closed
• Mon - Fri, 08:00-17:00

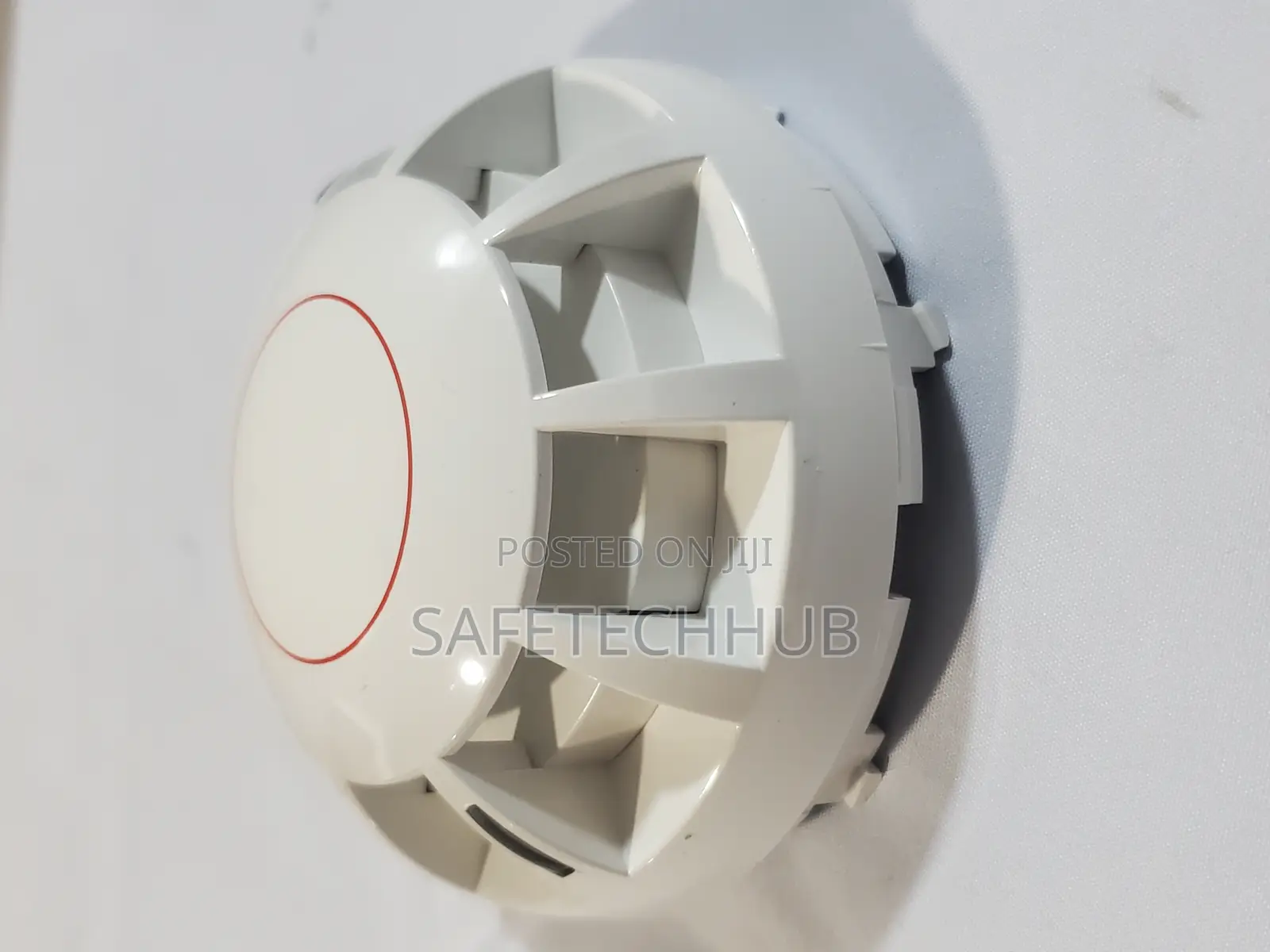

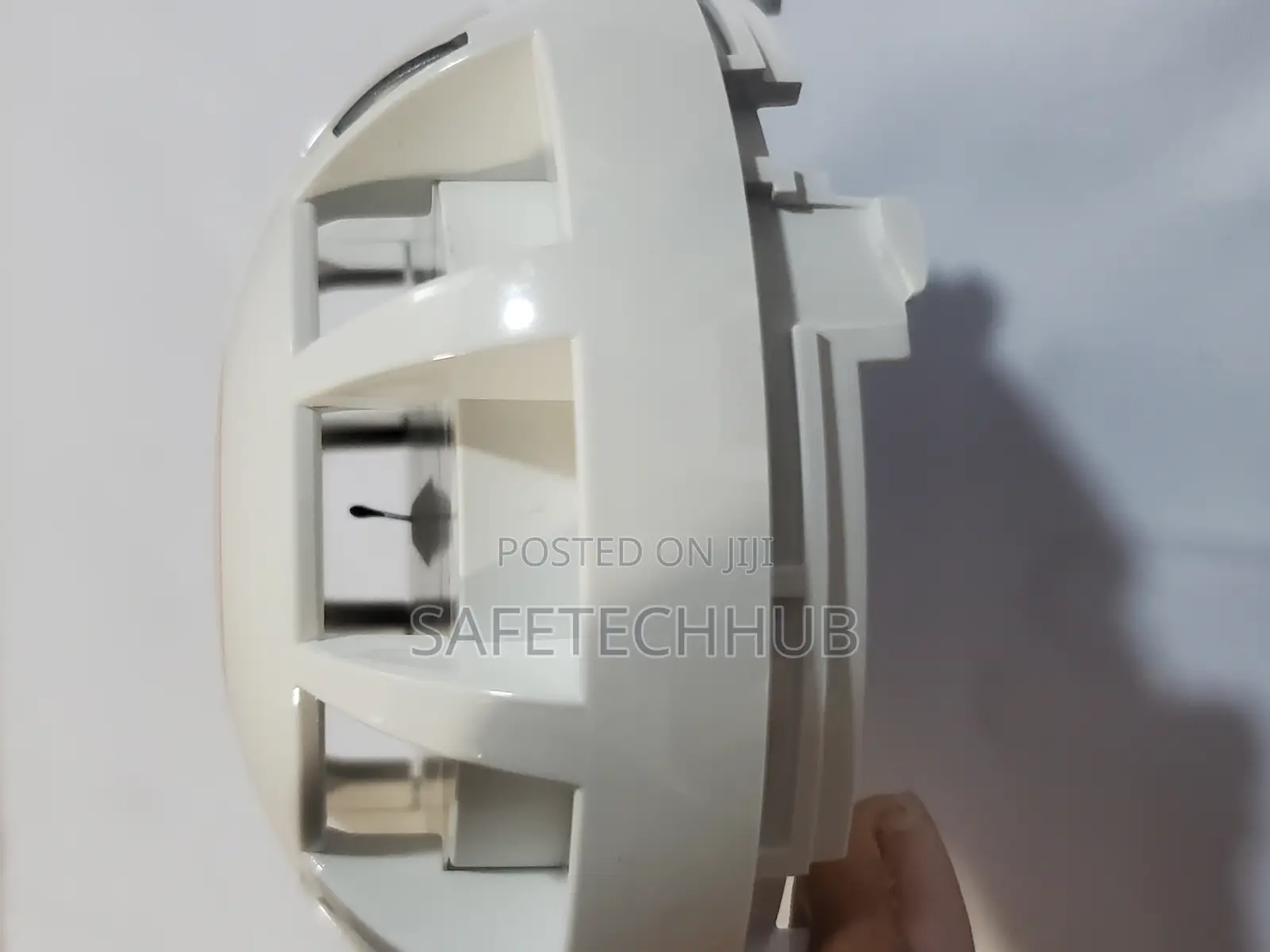

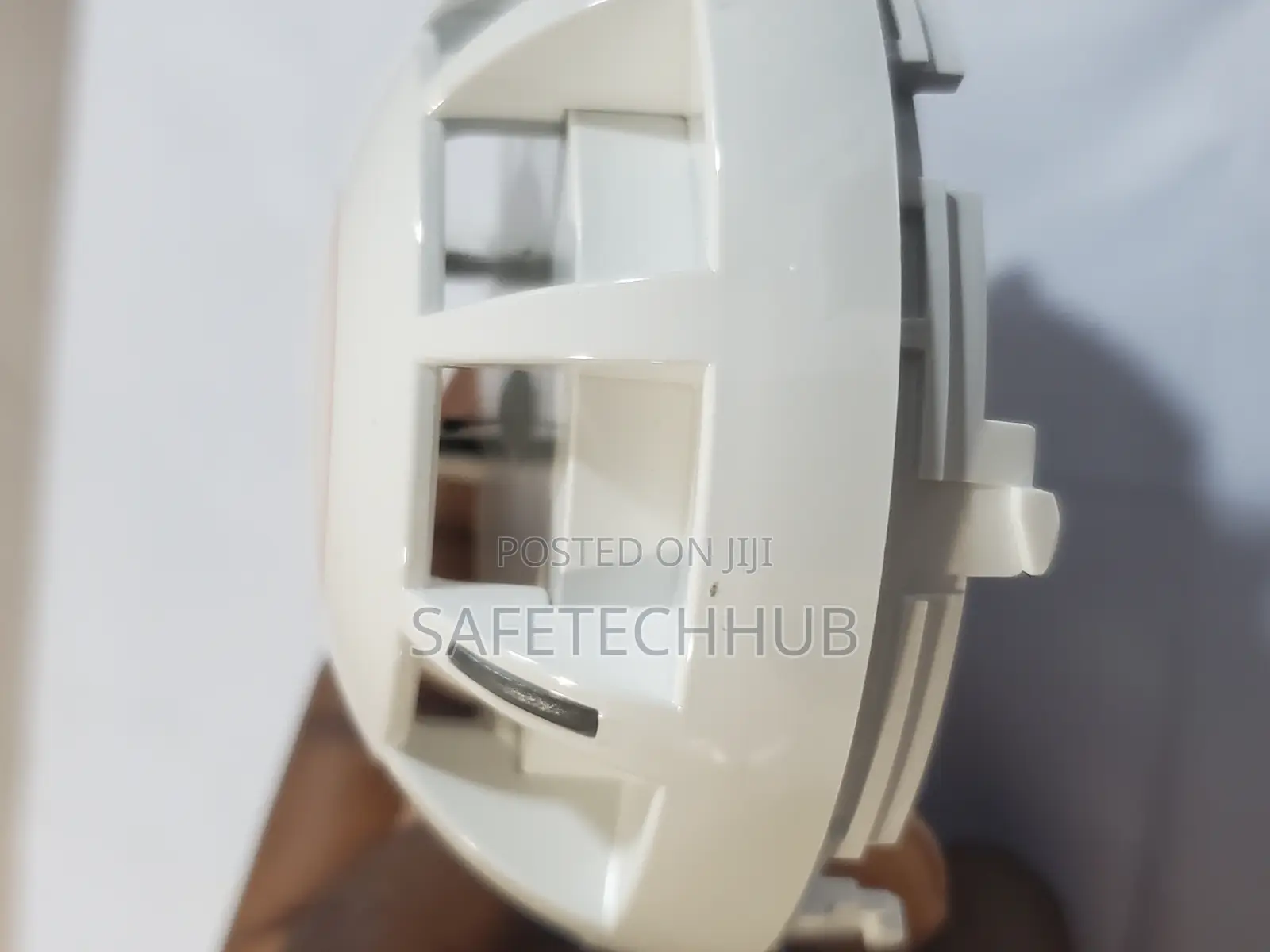

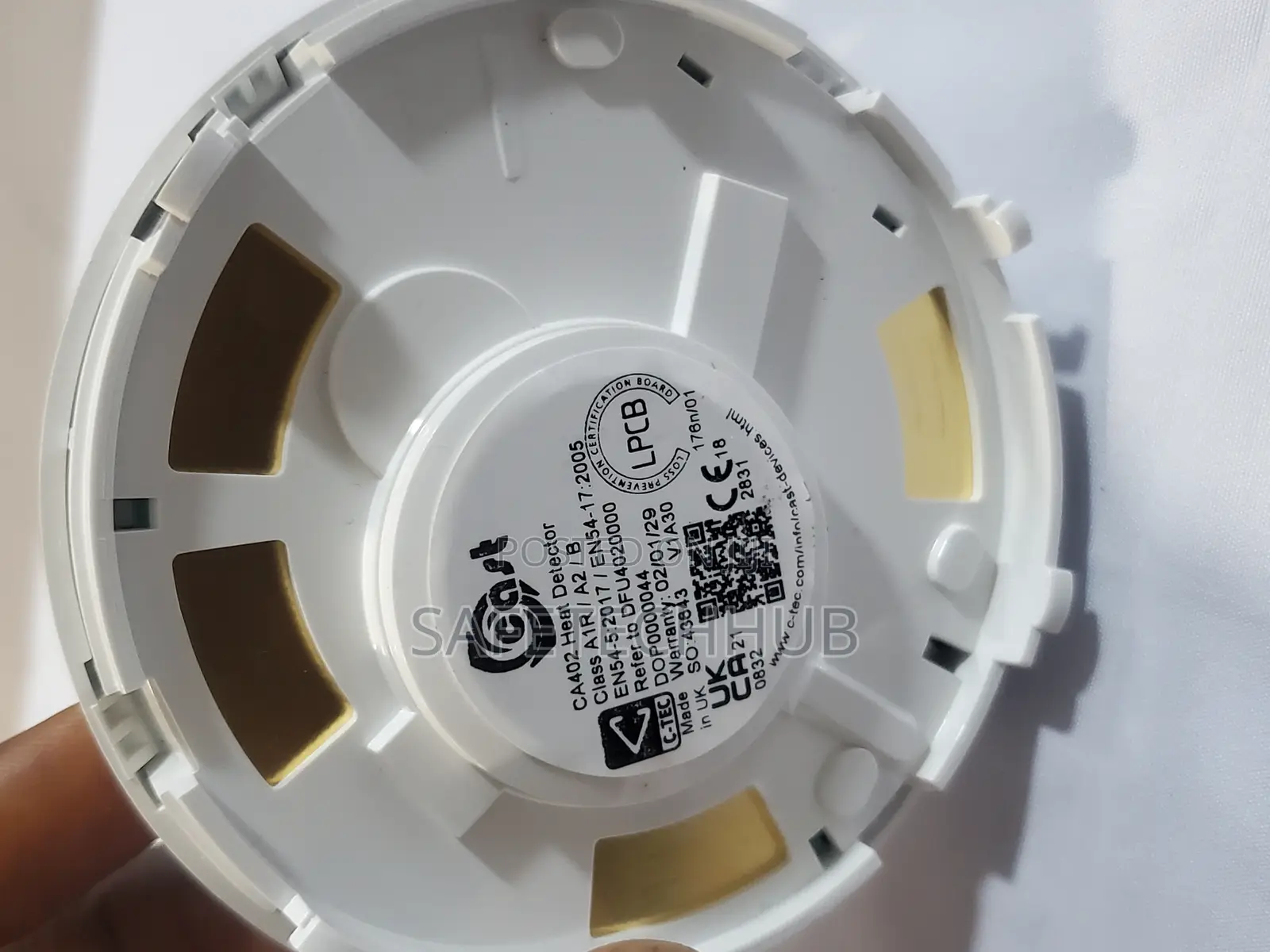

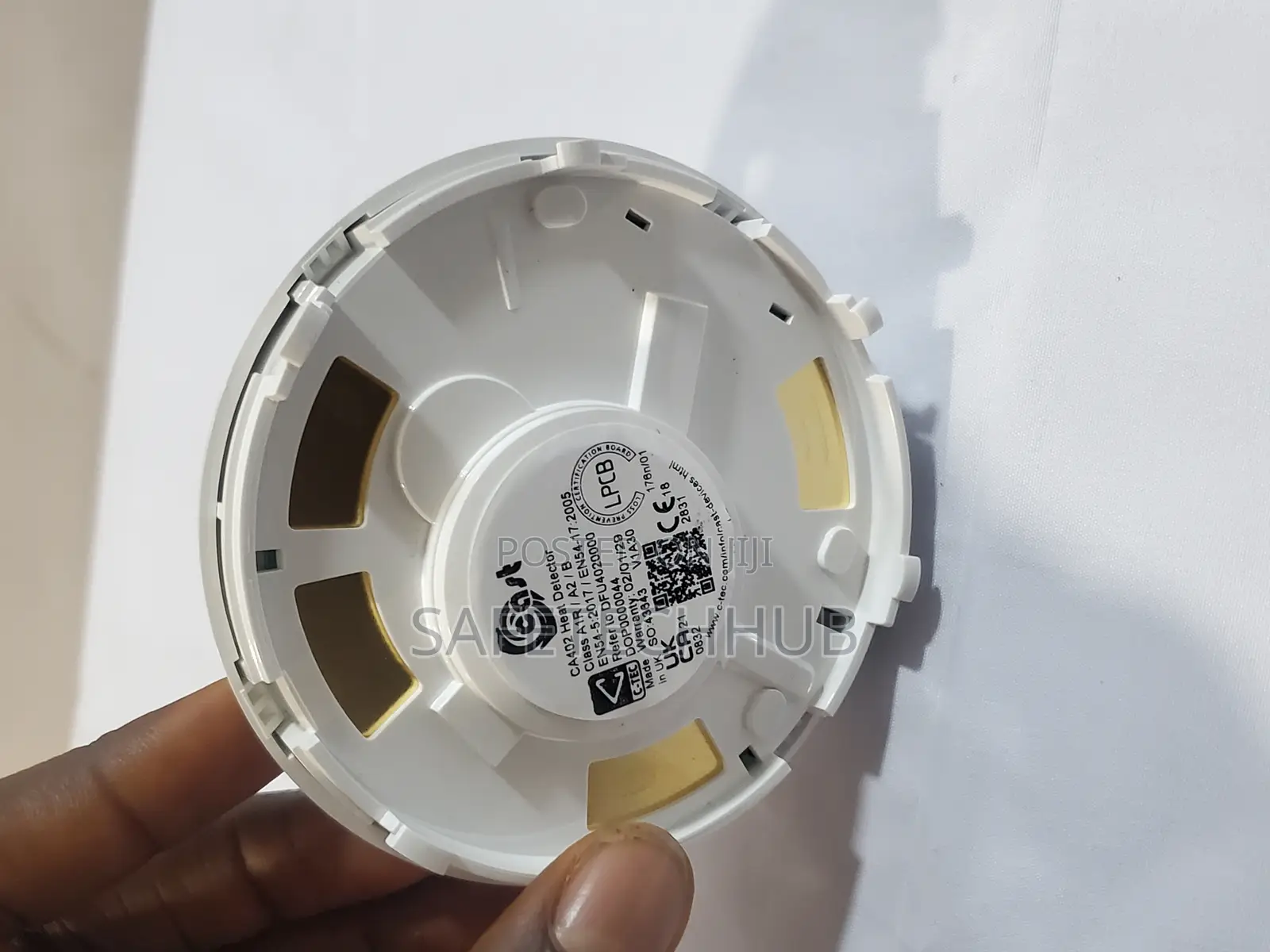

CTEC Cast Fire Alarm Pregrammable Addressable Heat Detector
Order code: CA402
A high quality programmable heat detector for use with C-TEC’s XFP & ZFP ‘CAST’ protocol Addressable Fire Panels.
LPCB certified to EN54-5 & 17 and Kiwa Telefication certified to EN54-13.
Can be programmed to operate as a Class A1R (rate of rise), Class A2 (64oC fixed temperature) or Class B (76oC fixed temperature) heat detector. Default setting is A2.
Onboard short circuit loop isolator.
Includes two 8mm x 2mm ultra-bright red LED indicating strips.
Different sensitivities can be selected for different times of the day (day/night, building occupied/unoccupied etc).
5mA typical alarm current (370uA typical quiescent) @ 22-40V DC.
Programmable multi-function status LED.
Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag.
