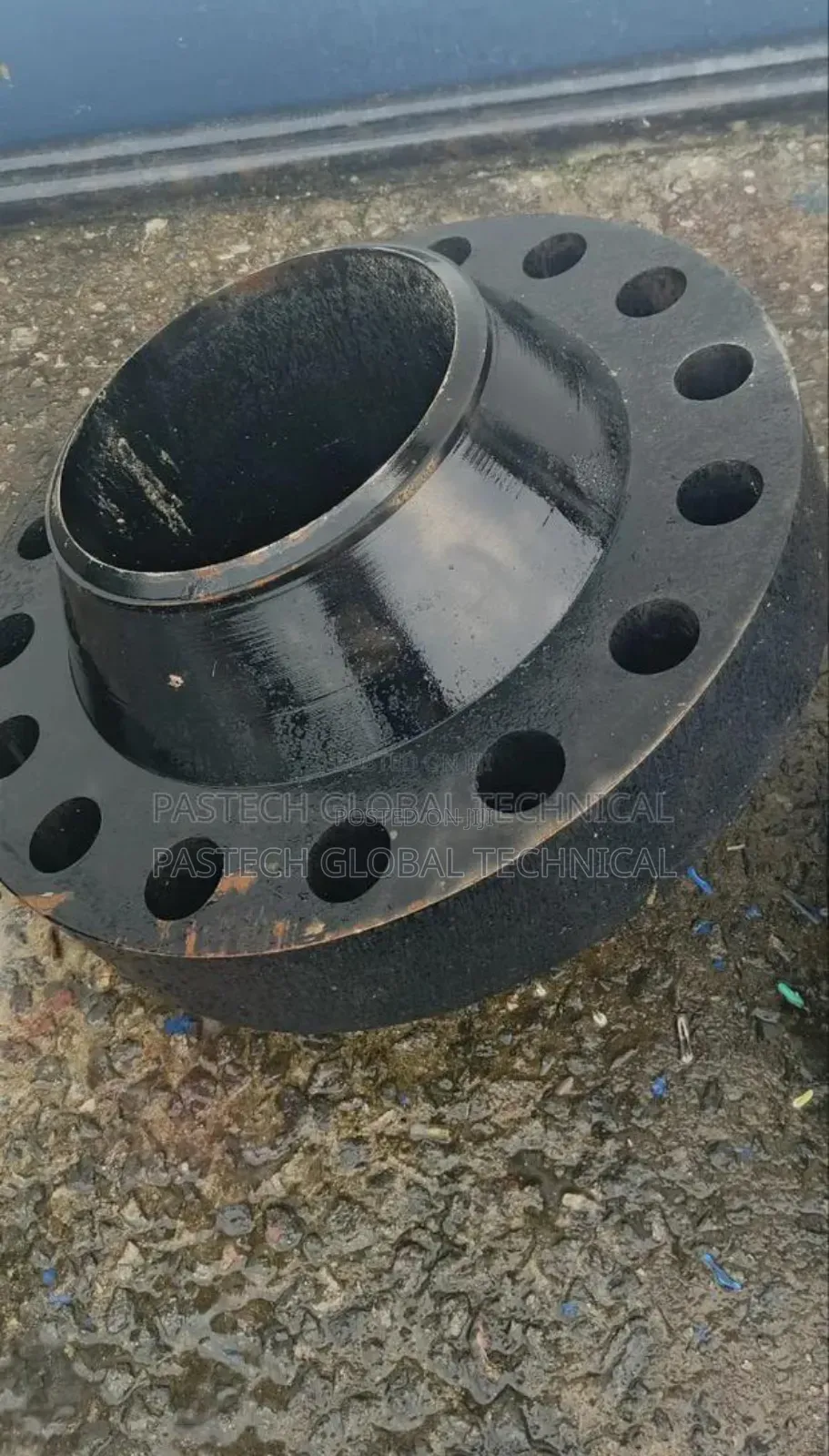

16" X 1500# Weld-Neck Flange Rf SCH 80

+1

Other

Type

Store address

Rivers State • Port-Harcourt

Block H Shop No. 6 Building Material Line, Mile 3 Port Harcourt.

Mile 3 Building Materials Off UST Roundabout. Company Reg. No -2432536

Closed now

• Mon - Sat, 08:00-18:00

16" x 1500# weld-neck flange RF Sch 80 is a high-pressure, raised-face flange designed for heavy-duty piping systems, conforming to ASME B16.5 standards. Key Characteristics Size: 16 inches nominal pipe size (NPS) Pressure Rating: Class 1500 — suitable for high-pressure applications Type: Weld-neck flange — features a long tapered hub for welding to pipe, providing high structural integrity Face Type: Raised Face (RF) — includes a small raised surface around the bore to concentrate pressure on the gasket for better sealing Schedule: Sch 80 — indicates a thicker wall pipe, suitable for higher pressure and temperature conditions Dimensional Highlights (Approximate) These dimensions follow ASME B16.5 standards: Outside Diameter (OD): ~24.5 inches (622 mm) Bolt Circle Diameter (BCD): ~21.25 inches (540 mm)
