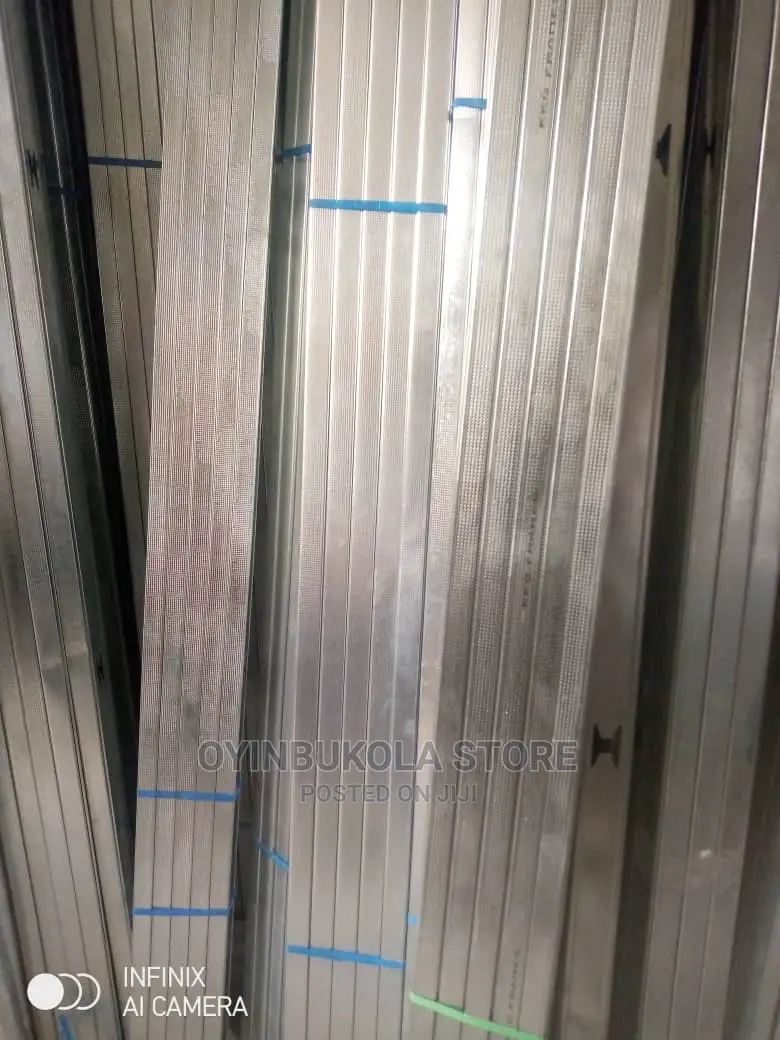

Aluminum Stud Frame
Other
Type
Aluminium Tubes partition is made of anodized aluminium hollow tubes to form a grid of 610 x 610 mm. 8 mm thick Hilux boards, are then screw fixed on either side of all these studs at 200 mm centres.
Frame Work:
Anodized aluminum frame is made by using 1.2mm thick hollow tubes, 50x50mm vertically and 25x50mm, horizontally at 610mm centres to form a regular grid of 610x610mm size. Frame joint together using L clamp. These frames are fixed to the floor and soffit at 600mm centres with nylon sleeves and wood screws.
Board Fixing:
8mm thick Hilux taper edge boards, are screw fixed to either side of all aluminium studs by self-drilling and taping screws having phillips head with under head cutter of suitable length (10 mm + thickness of the board) at 200mm centres (12 mm away from the edge and 40mm from the corners), with a gap of 1.5 to 2.0mm.
