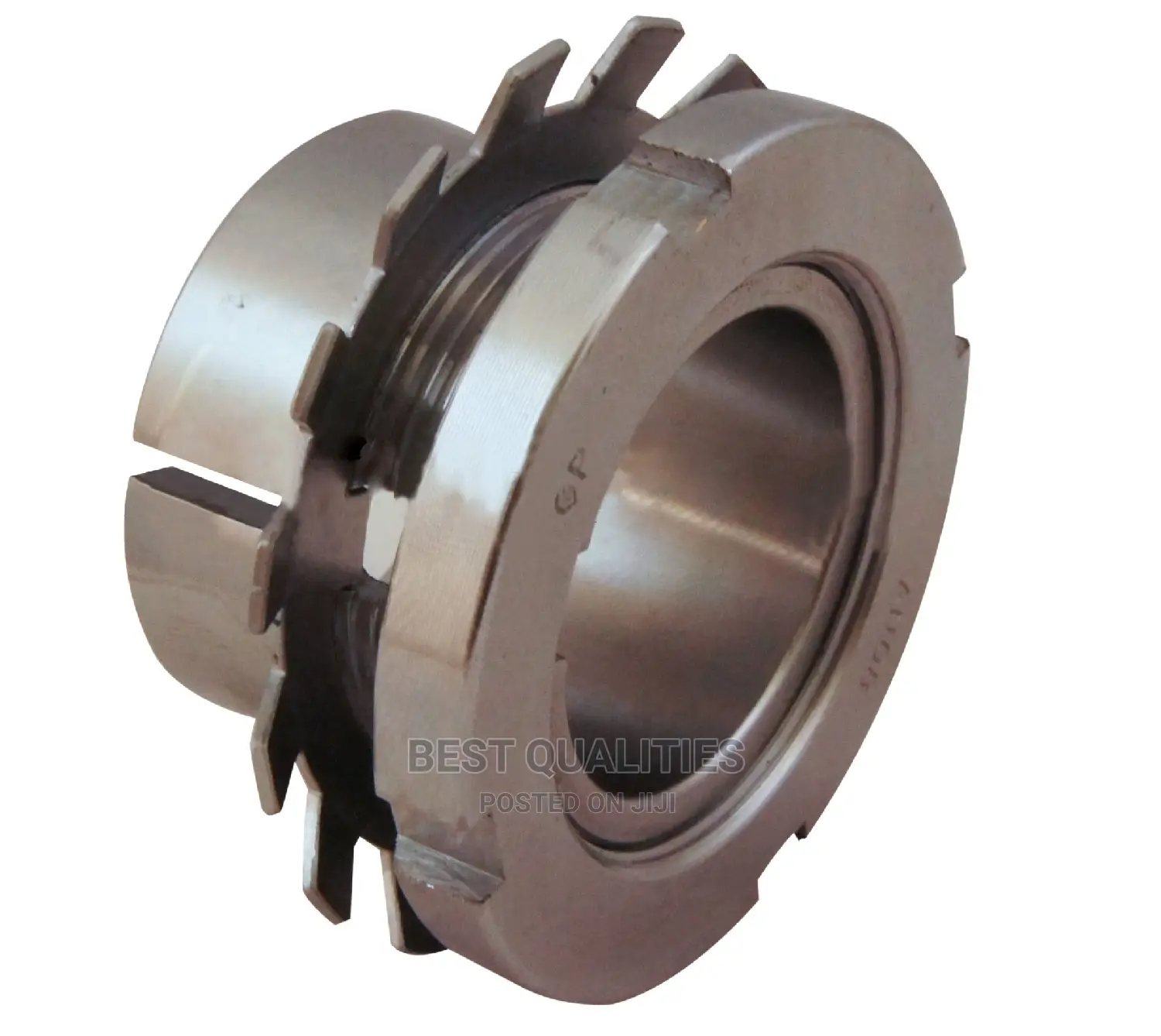

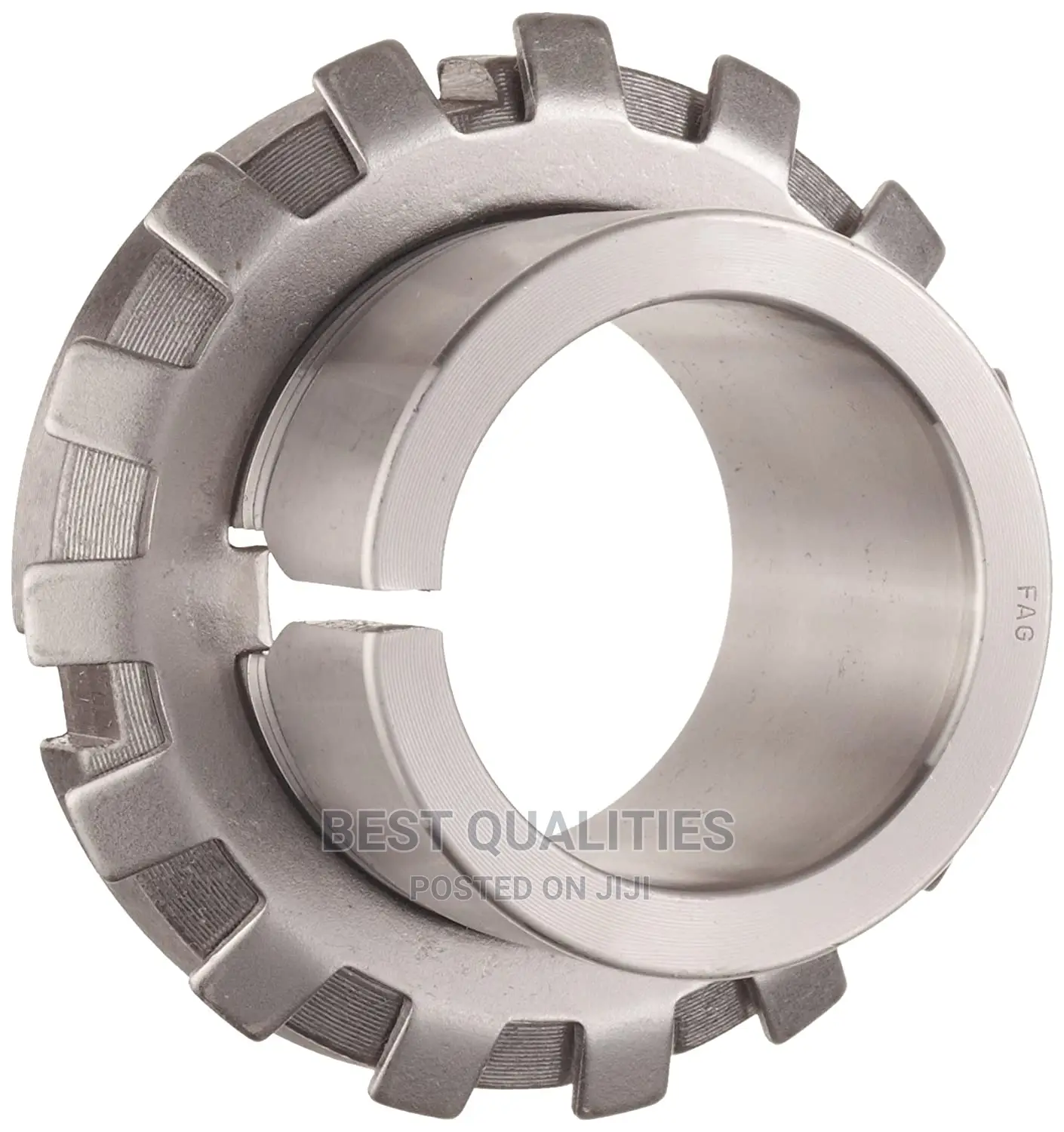

H3040 Sleeve

+1

1

Condition

Brand New

Store address

Lagos State • Ojo

Area A, Block 6, Shop 63 UASPDA, Trade Fair Market. Badagry Express Highway Ojo Lagos, Nigeria.

From Trade Fair under bridge => Machine Parts {UASPDA} Opposite Auto Parts {ASPMDA} First gate

Closed now

• Mon - Sat, 07:00-18:00

Dimensions: bore diameter: 180mm width: 120mm h3040 adapter sleeves Metric adapter sleeve complete with lock nut and locking device for bearings with a tapered bore dimensions - d (inside diameter) 180mm sleeves are used to locate bearings with a tapered bore on plain or stepped shafts. they facilitate bearing mounting and dismounting it helps to simplify bearing arrangement design dimensions: d1: 180mm d: 200mm d3: 240mm b1: 120mm b2: 31.5mm g: m 200x3 weight: 8,90kg lock nut: kml40 locking device: mbl40 hydraulic nut: hmv 40 e
