Colpitt’S Oscillator
educational trainer
Type
lab equipment
Brand
Brand New
Condition
Store address
Lagos State • Ojo
Alaba international market, ojo Lagos state
Open
• Mon - Sun, 00:00-23:45

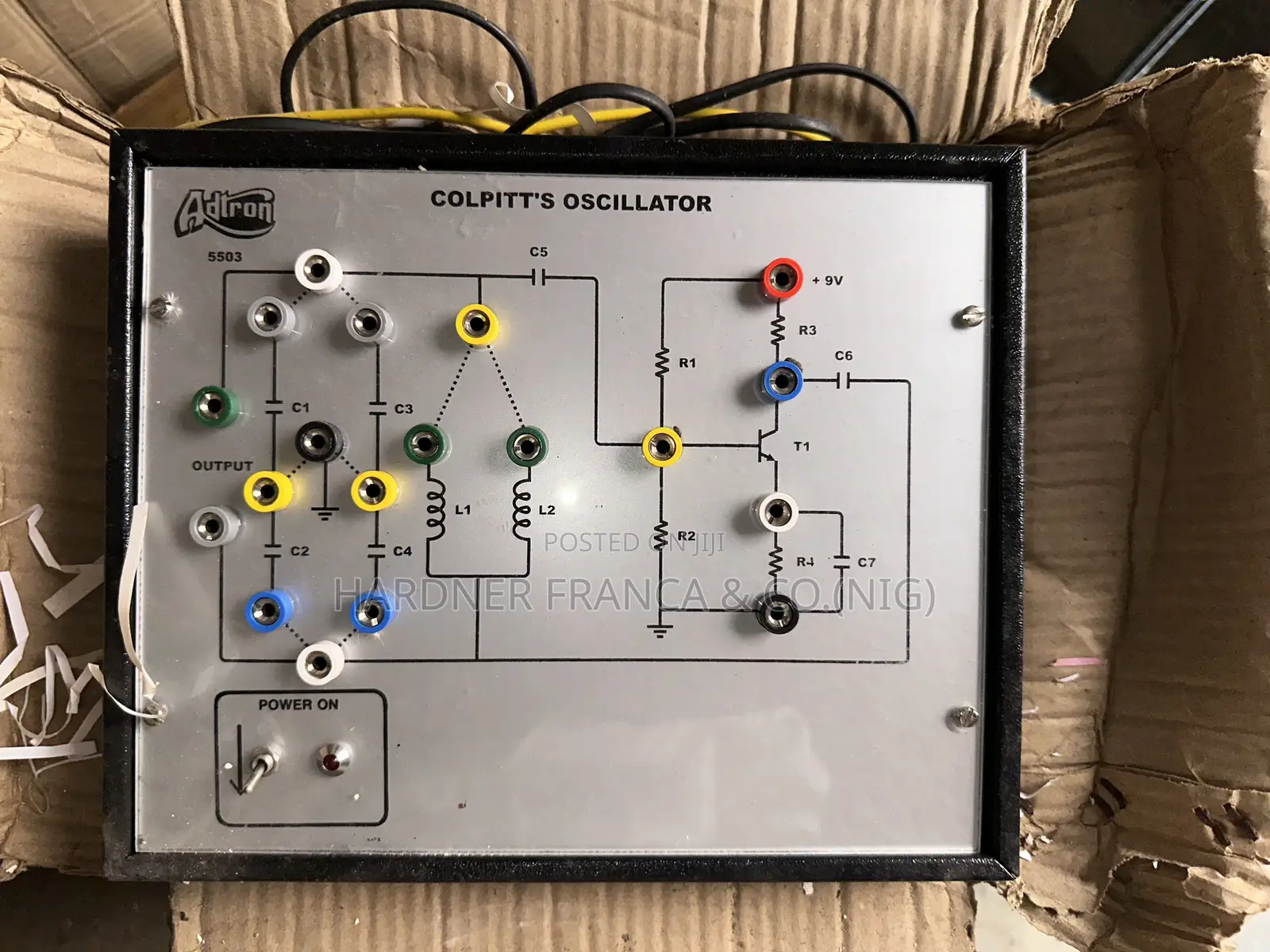

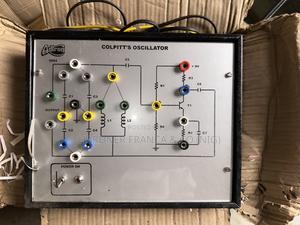

Colpitt’s Oscillator Trainer is an educational laboratory kit designed to study and analyze the working principle of the Colpitt’s oscillator—a popular LC feedback oscillator widely used in RF circuits. It helps students and trainees understand frequency determination, feedback mechanism, and practical waveform generation.
Technical Specifications
• Oscillator Type: Colpitt’s oscillator
Typical Experiments
• Study of Colpitt’s oscillator circuit configuration.
• Verification of oscillation condition (Barkhausen criteria).
• Frequency measurement of generated oscillations.
• Analysis of waveform amplitude and frequency stability.
Applications
• Training in RF and communication circuits.
• Demonstration of feedback oscillators in electronics labs.
• Foundation for understanding RF transmitter and signal generator circuits.
₦ 470,000
