555 Timer Circuit Application Trainer

+1

educational trainer

Type

lab equipment

Brand

Brand New

Condition

Store address

Lagos State • Ojo

Alaba international market, ojo Lagos state

Open

• Mon - Sun, 00:00-23:45

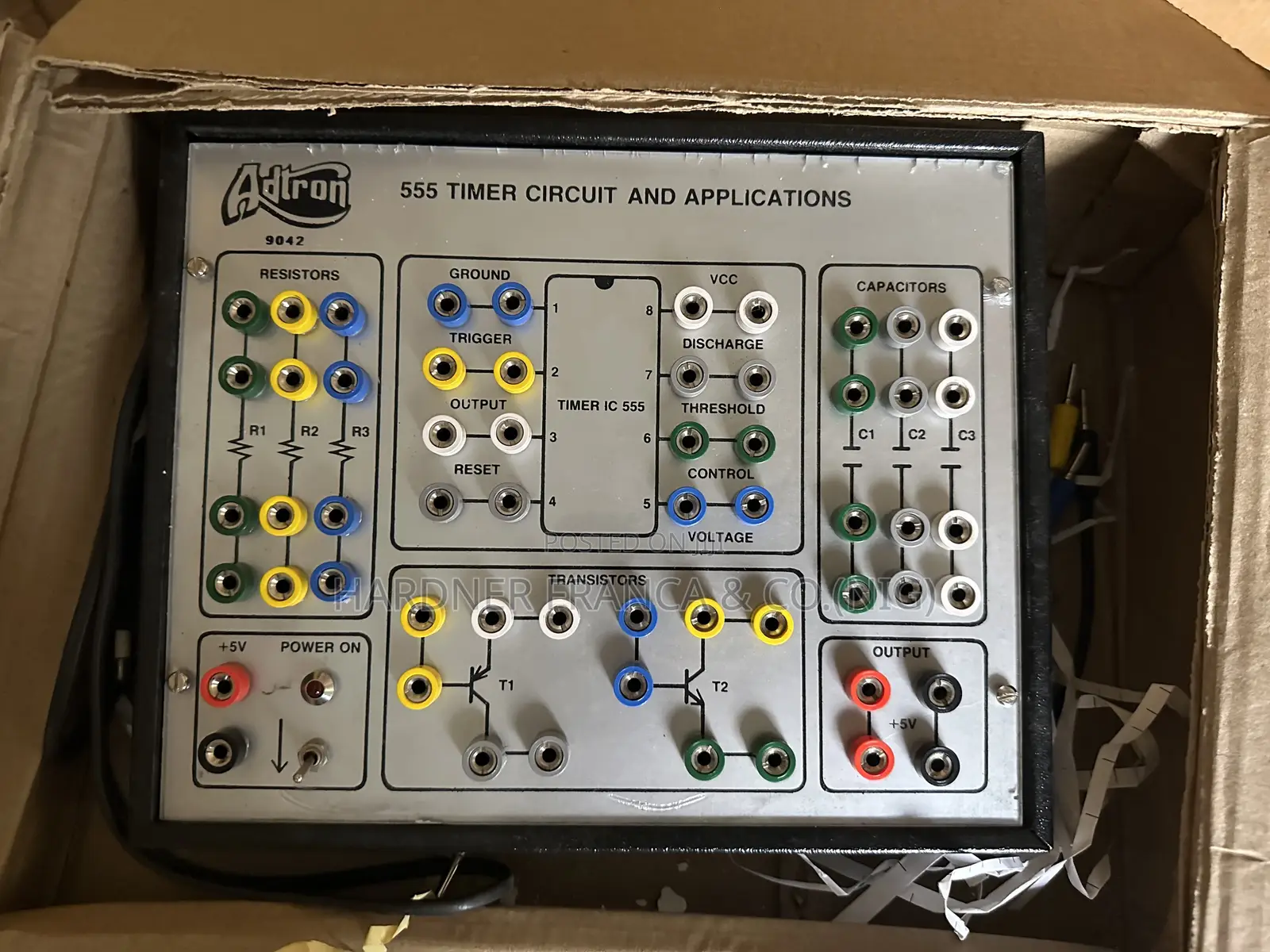

555 Timer Circuit & Application Trainer is a versatile educational kit designed to study the operation, configurations, and wide-ranging applications of the popular 555 timer IC. It provides hands-on experience for students and trainees to build, test, and analyze different timer-based circuits such as monostable, astable, and bistable modes. Typical Experiments • Study of 555 timer functional block diagram. • Monostable operation and pulse width measurement. • Astable operation as a square wave generator. • Bistable operation as a simple flip-flop. • Duty cycle and frequency variation with R and C changes. • Applications in pulse width modulation, frequency divider, and tone generation.
