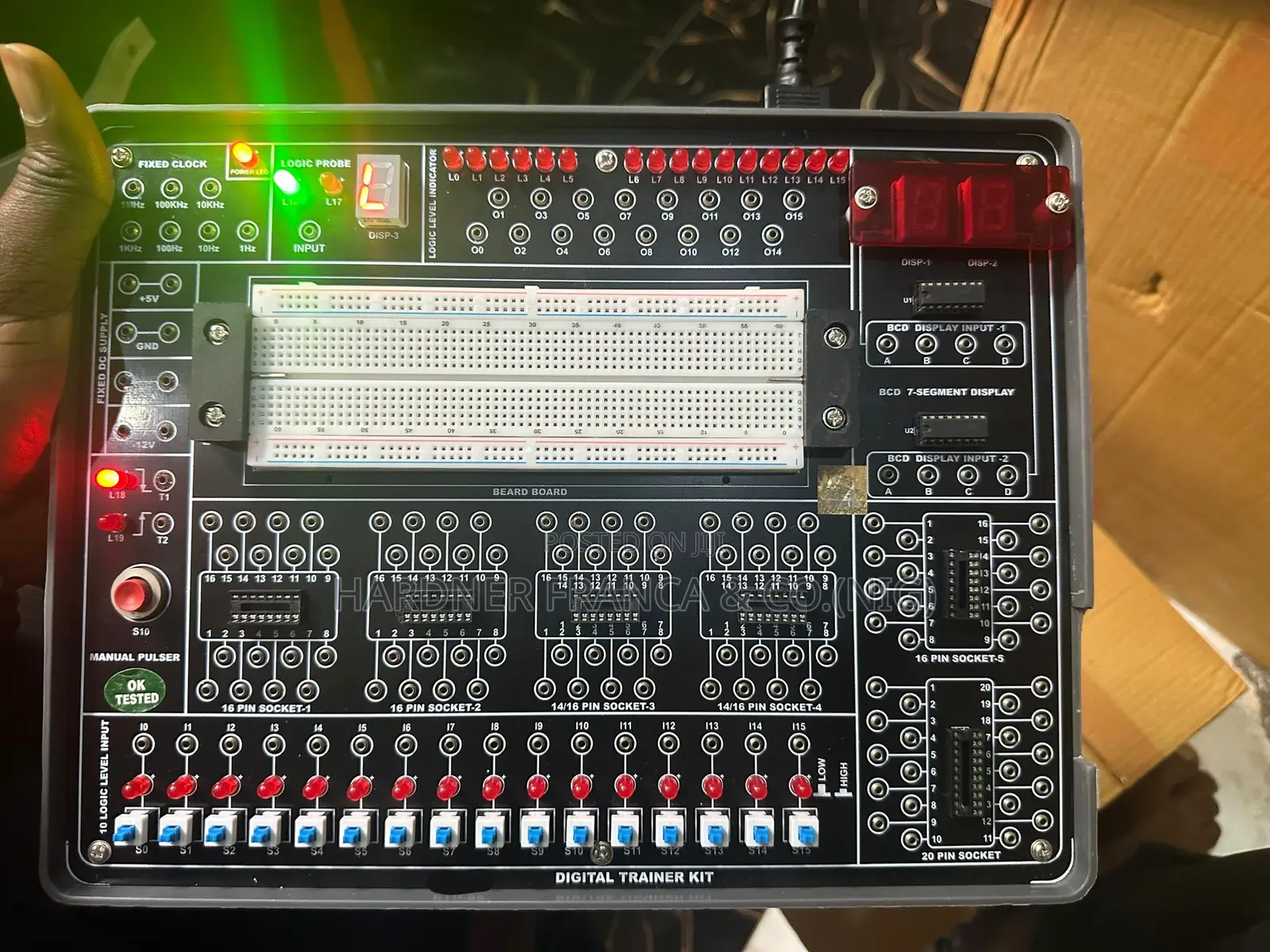

Digital Logic System Trainer (Ttl)

+1

1

lab equipment

Type

Brand New

Condition

educational trainer

Brand

Store address

Lagos State • Ojo

Alaba international market, ojo Lagos state

Open

• Mon - Sun, 00:00-23:45

Digital Logic System Trainer is a fully integrated educational platform designed to provide in-depth training on the design, analysis, and implementation of digital logic systems. This trainer includes essential hardware components such as logic switches, logic indicators (LEDs), clock generators, seven-segment displays, and a wide selection of TTL/CMOS logic ICs. Key Features: • Built-in power supply and adjustable clock pulse generator • High-quality breadboard area for custom circuit design • Toggle switches for binary inputs and LED indicators for output visualization • Pre-configured modules for logic gates, flip-flops, counters, • Onboard seven-segment display, buzzer, and logic probe points • TTL and CMOS Typical Experiments: • Verification of basic and universal logic gates (AND, OR, NOT, NAND, NOR, XOR, XNOR)
