Cadac Mixer Digital Console

+1

3

Music Mixers

Type

Brand New

Condition

Other

Brand

Store address

Lagos State • Ojo

123, Olojo Drive, Franklas Busstop, Opp FCMB Ojo Lagos

Closed

• Mon - Sat, 08:30-17:00

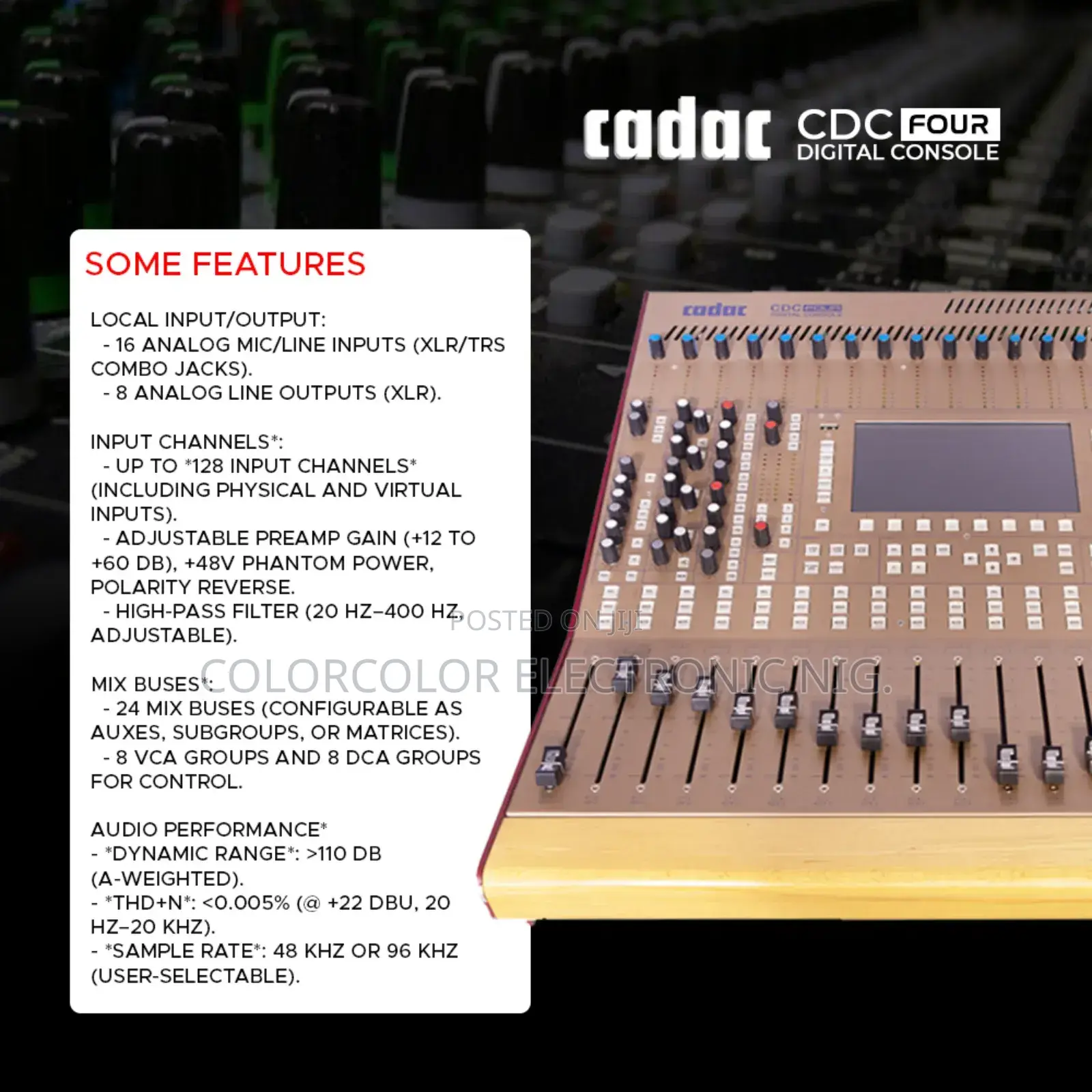

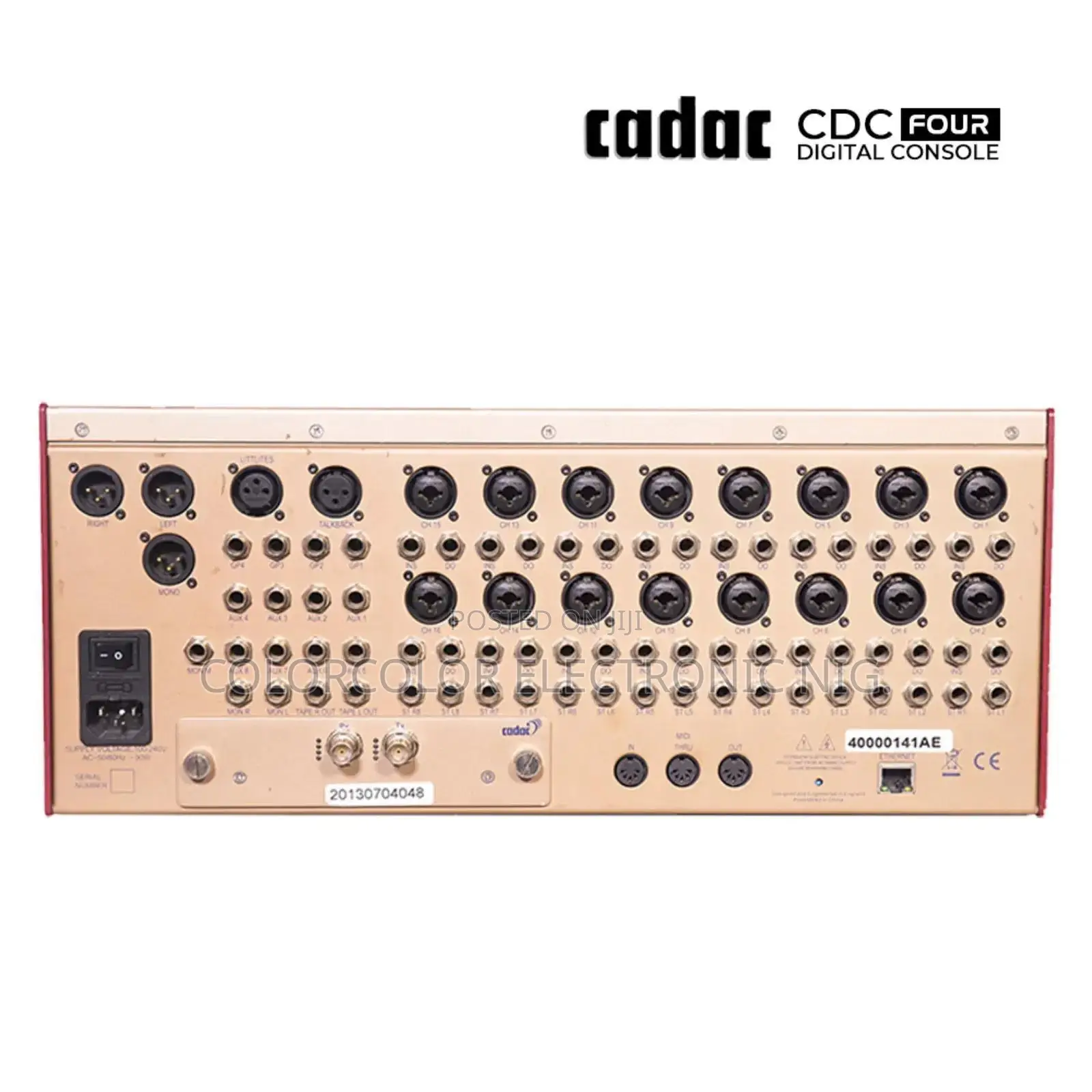

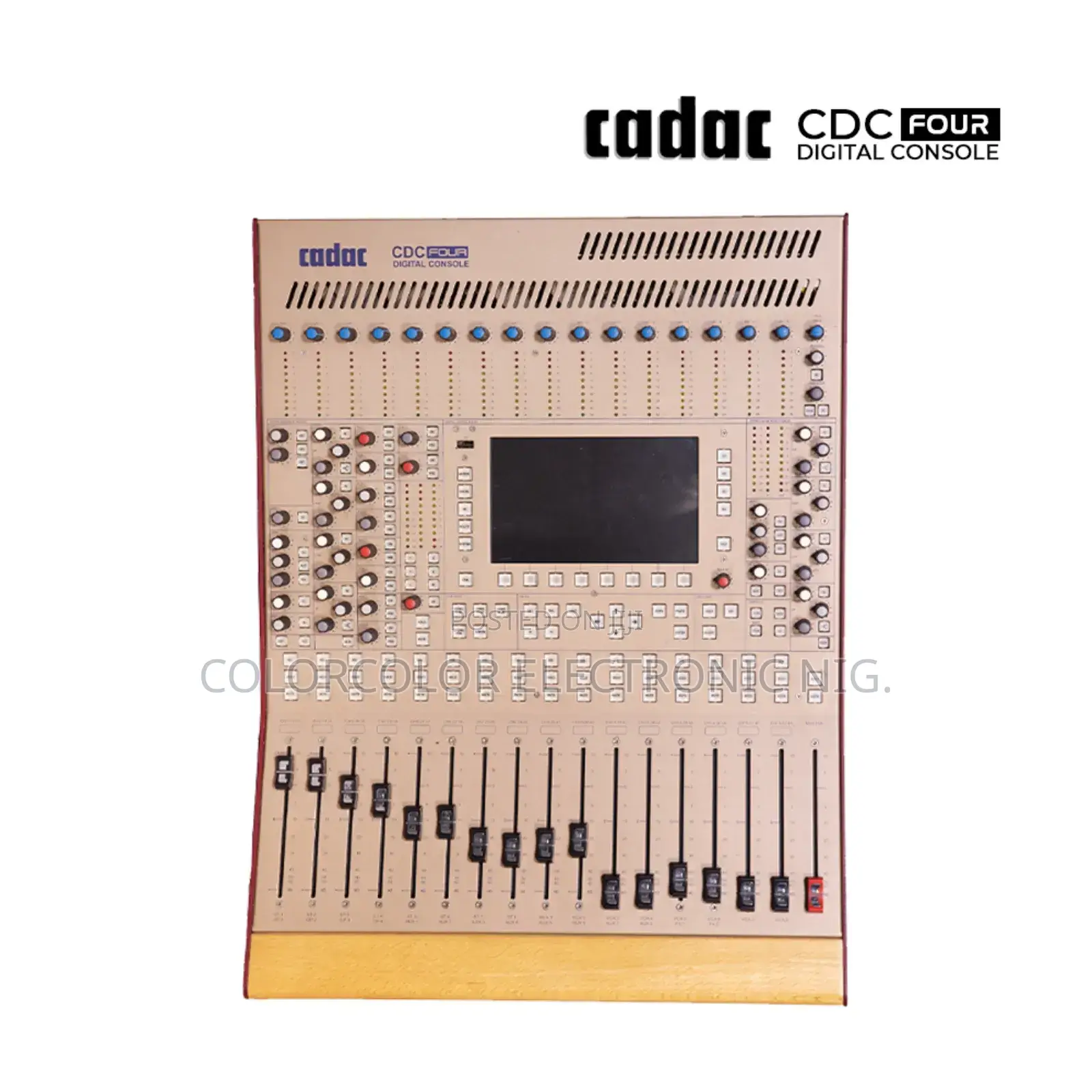

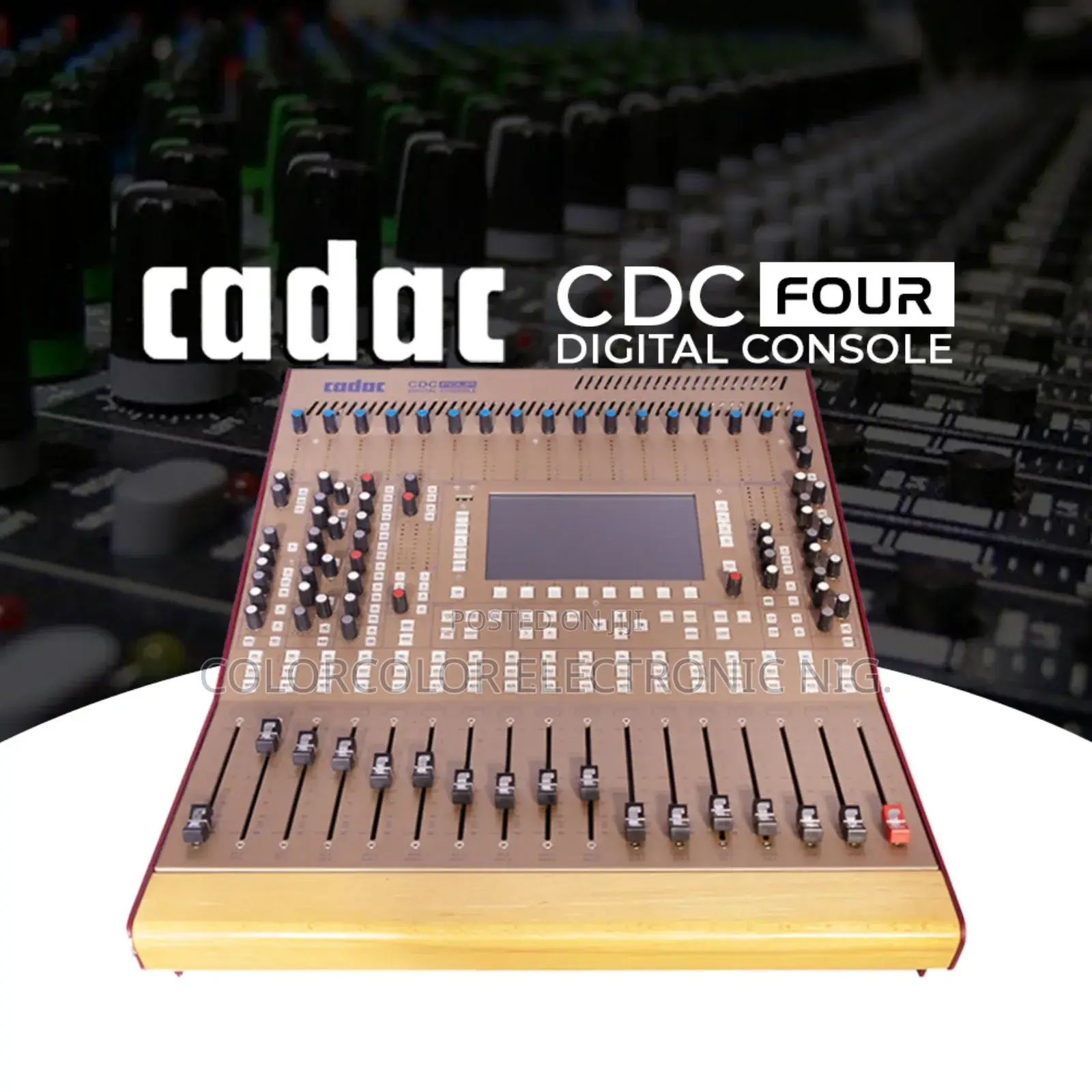

The Cadac CDC4 is a compact, high-performance digital mixing console designed for live sound, theatre, and installed applications. It combines Cadac’s renowned audio quality with modern digital flexibility. Below are its key parameters and features: 1. Input/Output Capacity - Local I/O - 16 analog mic/line inputs (XLR/TRS combo jacks). - 8 analog line outputs (XLR). - Expandable via Stageboxes - Supports up to *256 inputs/outputs via MADI (up to 64 channels per MADI port). - Optional Dante or AES67 networking for IP audio (with license). 2. Channel Processing - Input Channels - Up to 128 input channels (including physical and virtual inputs). - Adjustable preamp gain (+12 to +60 dB), +48V phantom power, polarity reverse. - High-pass filter (20 Hz–400 Hz, adjustable). - EQ - 4-band fully parametric EQ per channel.
