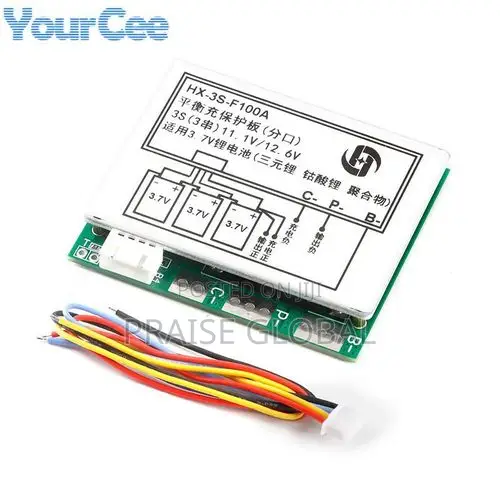

3s-100a Lithium Battery Management System BMS Protection Board

+1

Condition

Brand New

Type

Scaffolding

Store address

Lagos State • Mushin

125 agege Motor road mushin lagos

Closed now

• Mon - Sun, 08:00-18:00

Continuous Discharge Current: 100A (requires adequate heat dissipation). Peak/Instantaneous Current: 100A – 120A. Charging Voltage: 12.6V – 13.0V. Charging Current Limit: 10A. Dimensions: Approximately 70mm x 60mm x 8.5mm. Protection Features Overcharge Protection: Triggers at approximately 4.28V ± 0.05V per cell. Over-discharge Protection: Triggers at approximately 2.5V ± 0.05V per cell. Short Circuit Protection: Protects against accidental shorts with a delay for self-recovery. Equilibrium/Balance Function: Provides a balancing current of 65mA to ensure all cells reach the same voltage during charging. Temperature Protection: The "T" point on the board allows for the addition of a normally closed temperature sensor to prevent overheating.
