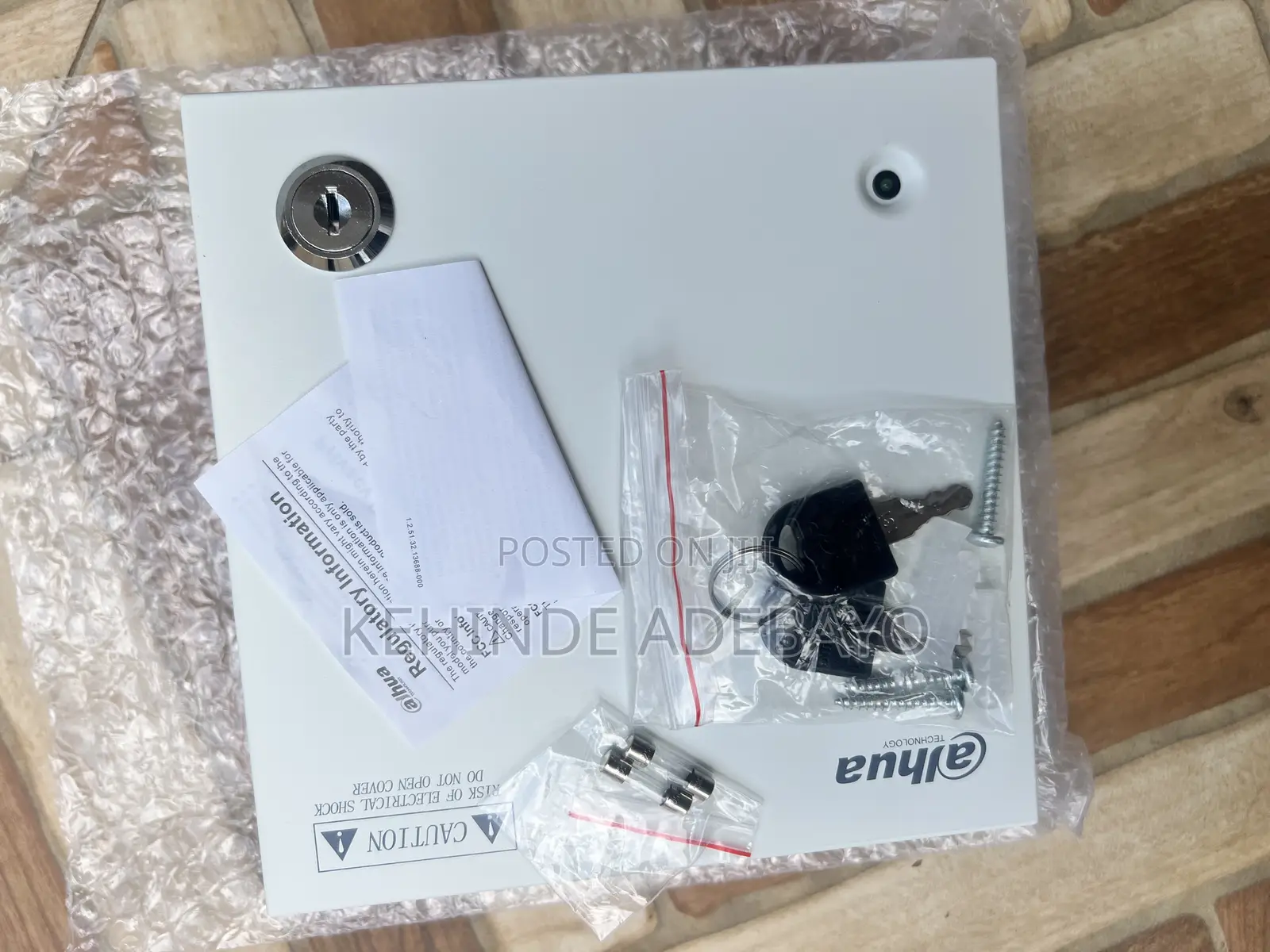

Dahua CCTV Centralized ( 9 Channels)power Supply Box
Specifications
electrical specification
model
dh-pfm341-9ch
input voltage range
ac90~264v
outputs
9 x 12vdc (-3%~+7%) outputs
max. output
5 a
output protection
9 replacement fuses, max. per output 2.5a
efficiency
84%
no load power consumption
<0.5w
internal on/off power switch
yes
individual led output indicator
yes
protection/environmental
surge protected
line to ground: 4000v
line to line: 2000v
esd
contact discharge: 6000v
air discharge: 8000v
working temperature
-20°c~+45°c(-4°f~+113°f)
working humidity
<90% rh
physical properties
weight
0.9kg(1.98lb)
dimension(lxwxh)
165mmx165mmx50mm(6.5”x6.5”x1.97”)
installation
wall mount
color
white
safety standards
certification
ce(en55032, en55020)
fcc(fcc part 15 class b, ised ices-003 issue 6)
₦ 70,000
Negotiable
