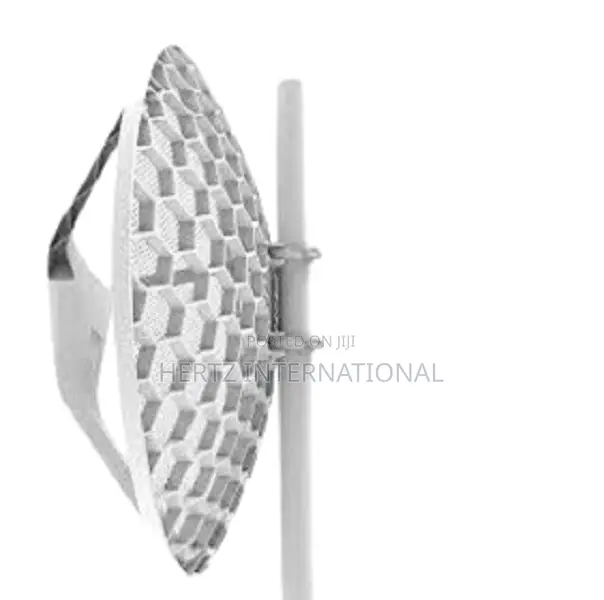

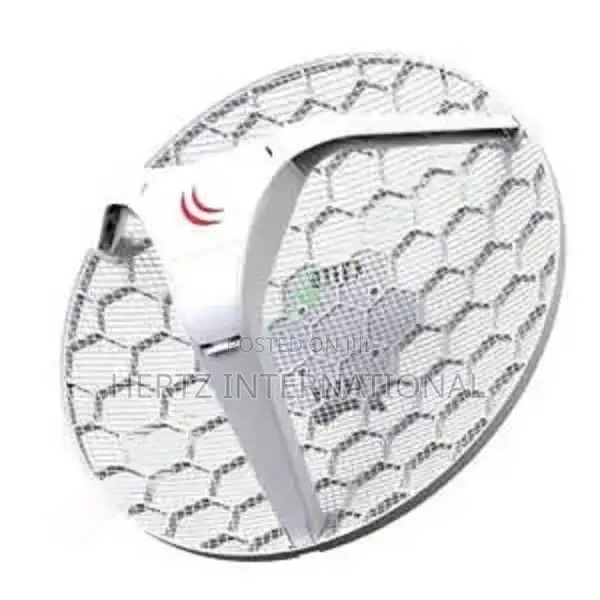

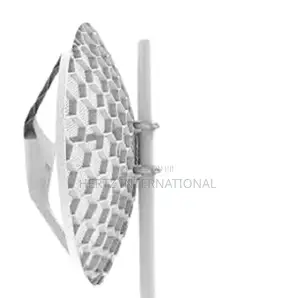

MIKROTIK LHG XL HP5 Series Extra Large High Power
Store address
Verified
Verified
4
Lagos State • Ikeja
20, Otigba Street, Computer Village , Ikeja /Medical Road
Closed now
• Mon - Sat, 08:00-18:00
The
LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual
polarization 27 dBi grid antenna and 630mW TX output power, designed to
reach up to 40km in point-to-point setups at full speed.
The grid design ensures protection against wind, and the fact that the
antenna element is built into the wireless unit means no loss on cables.
Specification:
Product
code: RBLHG-5HPnD-XL
CPU nominal frequency: 600 MHz
Size of RAM: 64 MB
Storage: 16 MB Flash
10/100 Ethernet ports: 1
Wireless: Built-in 5 GHz 802.11a/n, dual-chain
Wireless chip model: AR9344
Operating frequency: 5150 – 5875 MHz
Antenna gain: 27 +/- 0.5 dBi
Antenna beam width: 6.4°
Cross polar: 21 dBi
Port to port isolation: 18 dB
Front to back ratio: 35 dB
Return loss: 14 dB
VSWR: 1.5:1
PoE in: Yes
Supported input voltage: 10 V – 28 V (passive PoE)
Wind loading: 186N @ 20
