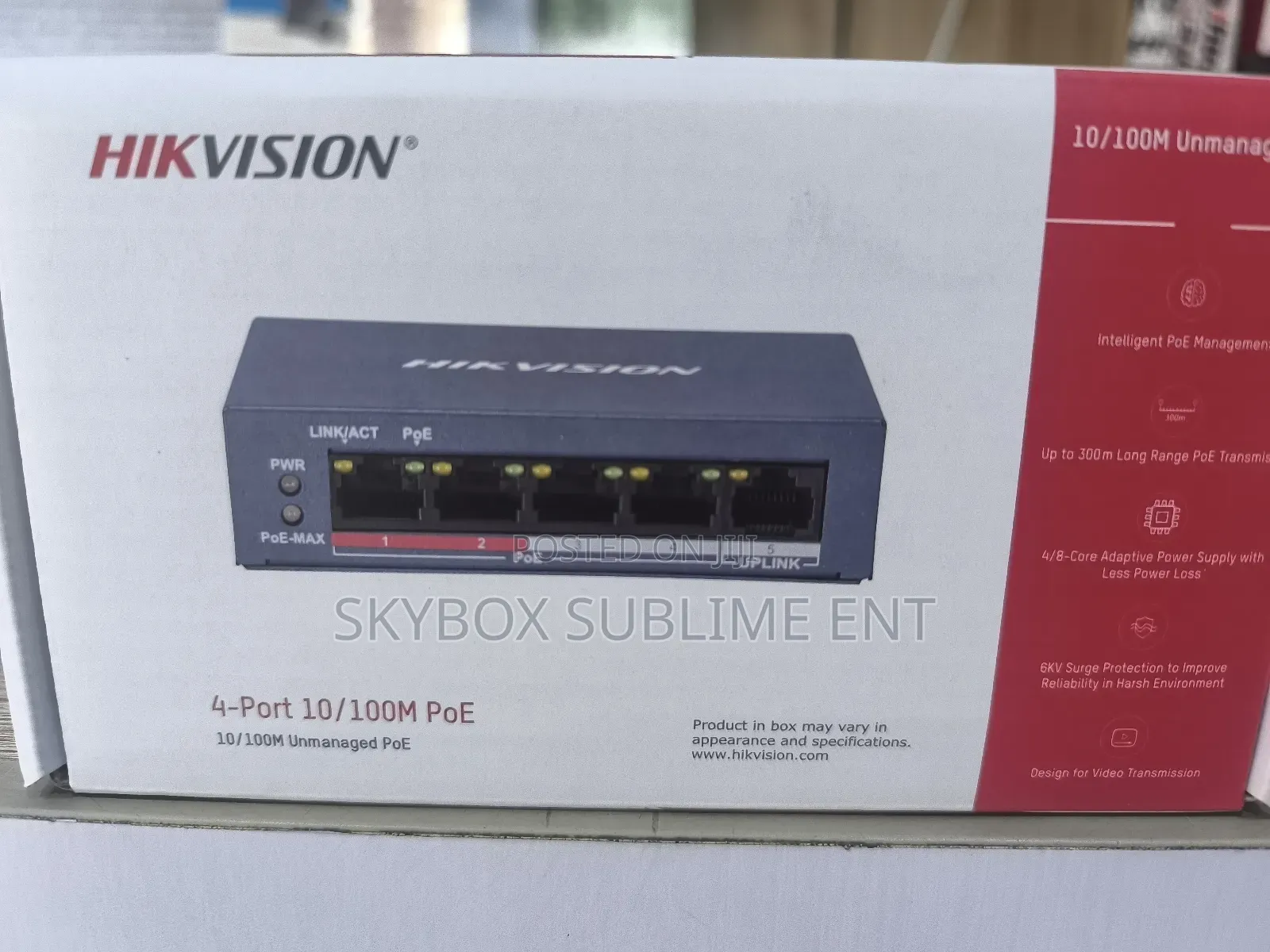

HIKVISION DS-3E0105P-E/M 4 Port PoE 10/100

+1

Switch

Type

Hikvision

Brand

DS-3E0105P-E/M

Model

100 Mbps

Max LAN Speed

5

Number of LAN Ports

Brand New

Condition

Store address

Lagos State • Ikeja

21/23, OBAFEMI AWOLOWO WAY, IKEJA CLUB PLAZA, LAGOS.

Open now

• Mon - Sun, 01:00-23:00

*Hikvision DS-3E0105P-E/M(B)* — 5-Port Unmanaged PoE Switch *Summary:* - *Ports:* 4x 10/100Mbps PoE ports + 1x 10/100Mbps RJ45 uplink (non-PoE) - *Type:* Layer 2, Unmanaged — plug-and-play, store-and-forward - *PoE Standard:* IEEE 802.3af / 802.3at (PoE+) - *PoE per port:* Up to 30W max - *PoE budget:* 35W total (M/B version) / 45W on M/C version — 38W max consumption - *Long Range Mode:* DIP switch — extends Ports 1-4 up to 250-300m @ 10Mbps (for IP cameras) - *Priority:* Ports 1-2 are high priority ports for video when congested - *Performance:* 1 Gbps switching capacity, 0.744 Mpps forwarding, 1K-2K MAC table, 448-768 Kbits cache - *Power pins:* 8-core power — 1/2(-), 3/6(+), 4/5(+), 7/8(-) simultaneously - *Protection:* 6kV surge protection per PoE port - *Design:* Metal shell, fanless silent, 0.2kg, 105 x 27.6 x 83.1mm — Desk / Wal
