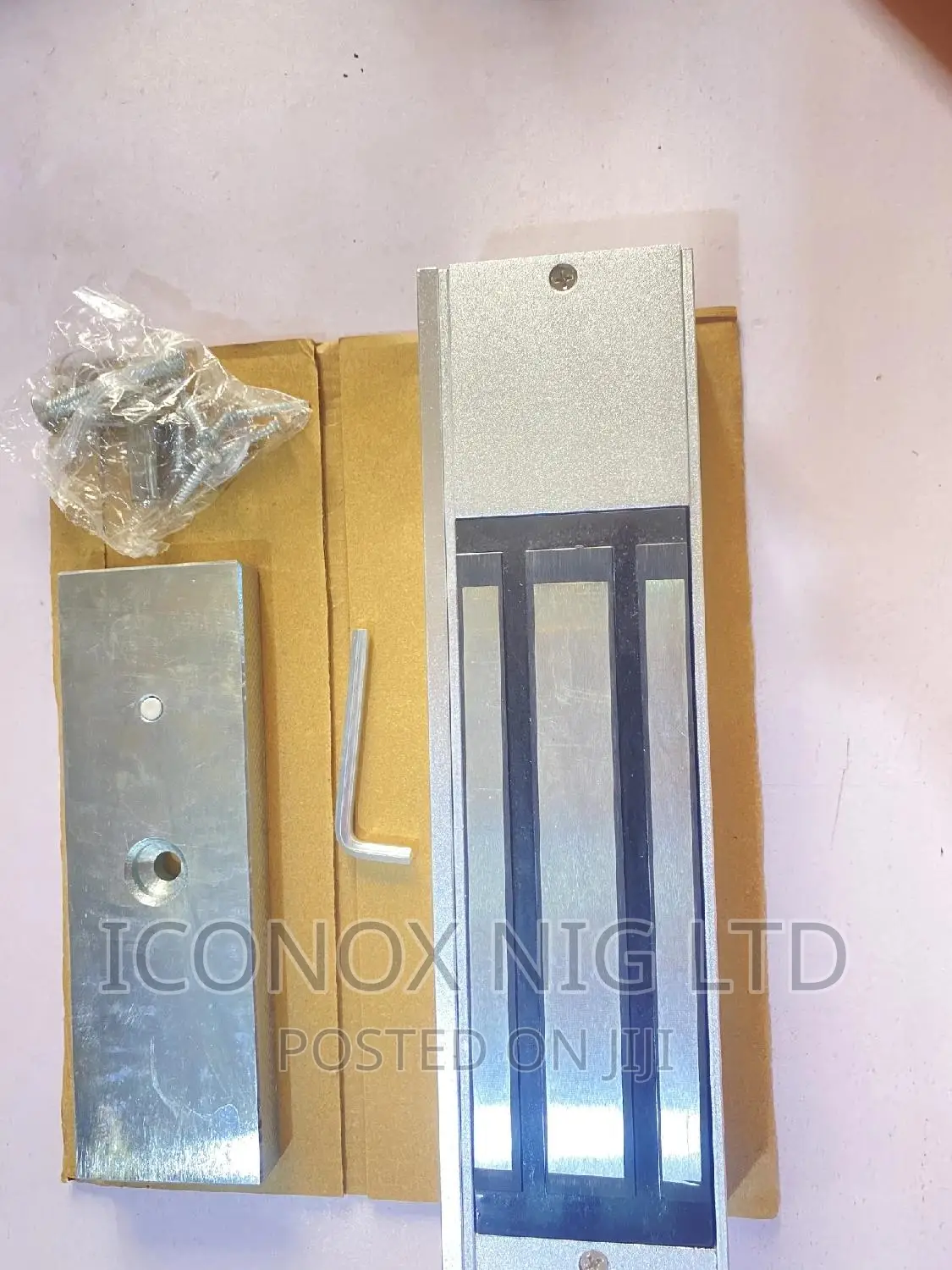

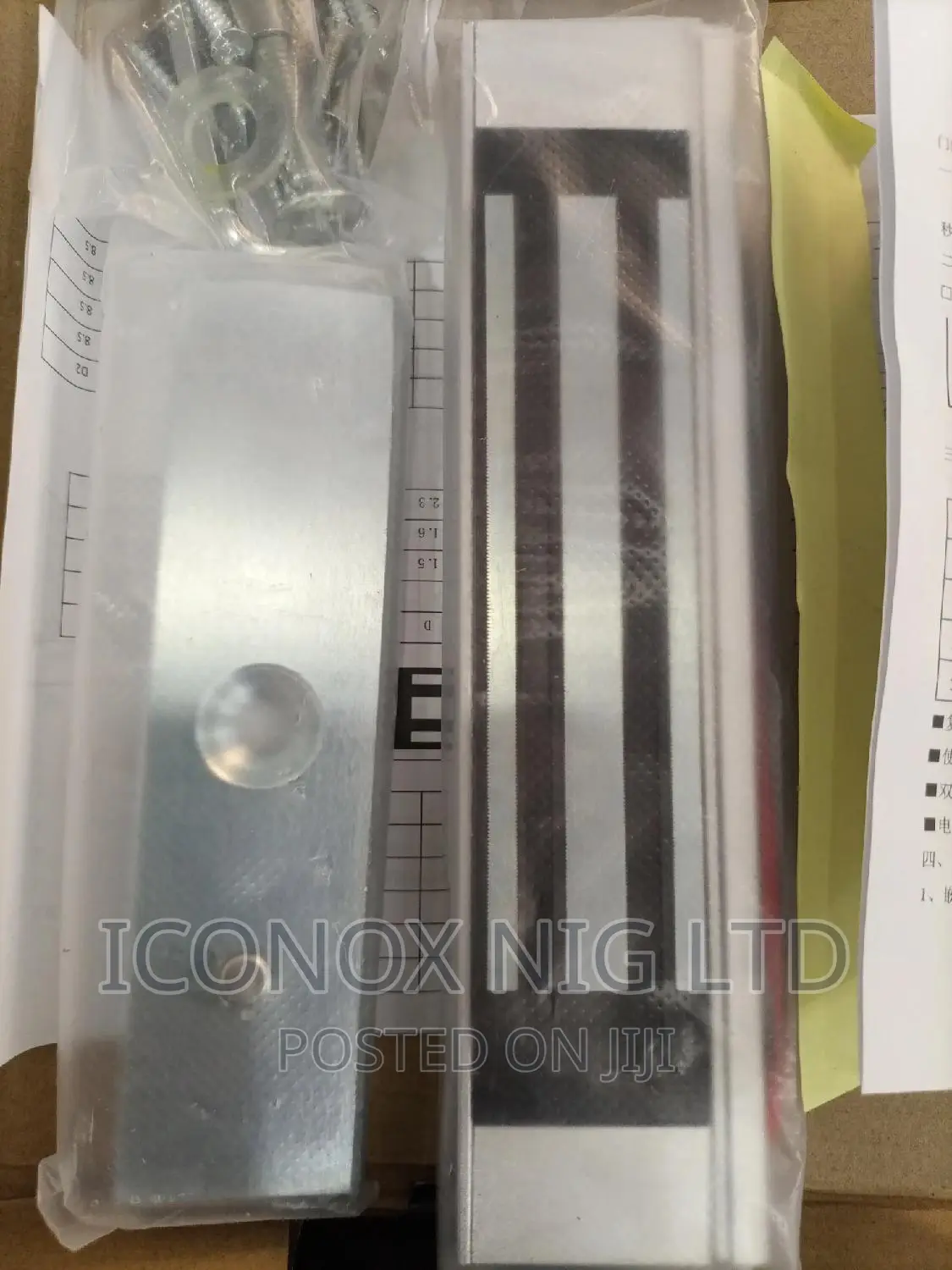

Magnetic Lock-electric Door Lock - 280KG

+1

2

Door Locks

Type

Silver

Color

Aluminium

Material

Brand New

Condition

Store address

Lagos State • Ikeja

shop 21, Toscanini Plaza, #26, Oriyomi street, off olowu street, ikeja

Closed now

• Mon - Sat, 08:00-18:00

Magnetic lock-electric door lock - 280kg 1.With led and door position detection output(no/nc) 2.With delay and with door position detection output(no/nc) 3.Lock size: 250lx48wx25h(mm) 4.Armature plate: 180lx38wx11h(mm) 5.Holding force: 280kg (600lbs) 6.Fail-safe (power to lock) electric lock suitable for fire exit 7.Voltage:dc12v or dc24v (adjustable) 8.Standard voltage is 12vdc when finished 9.Current draw: 12v/500ma 24v/250ma 10.Ne-280s(led),ne-280st(led):lock status sensor(no/nc/com) 11.Ne-280s(led),ne-280st(led):led indicates the door is unlock,green indicates the door is lock 12.Ne-280st(led):timer: 0/3/6/9sec 13.Suitable for: wooden door , glass door ,metal door , fireproof door 14.Surface temp: ≤+20°c
