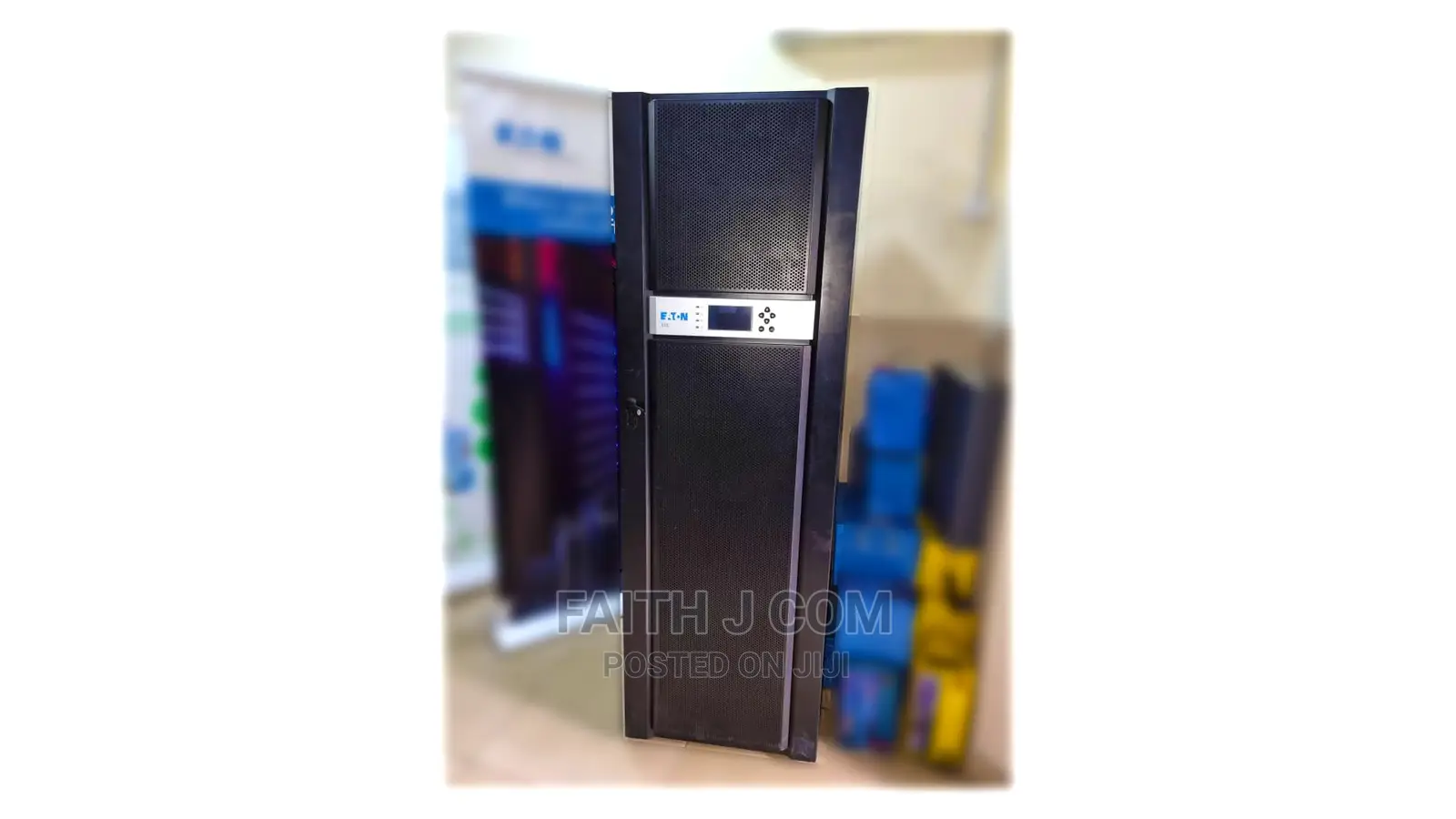

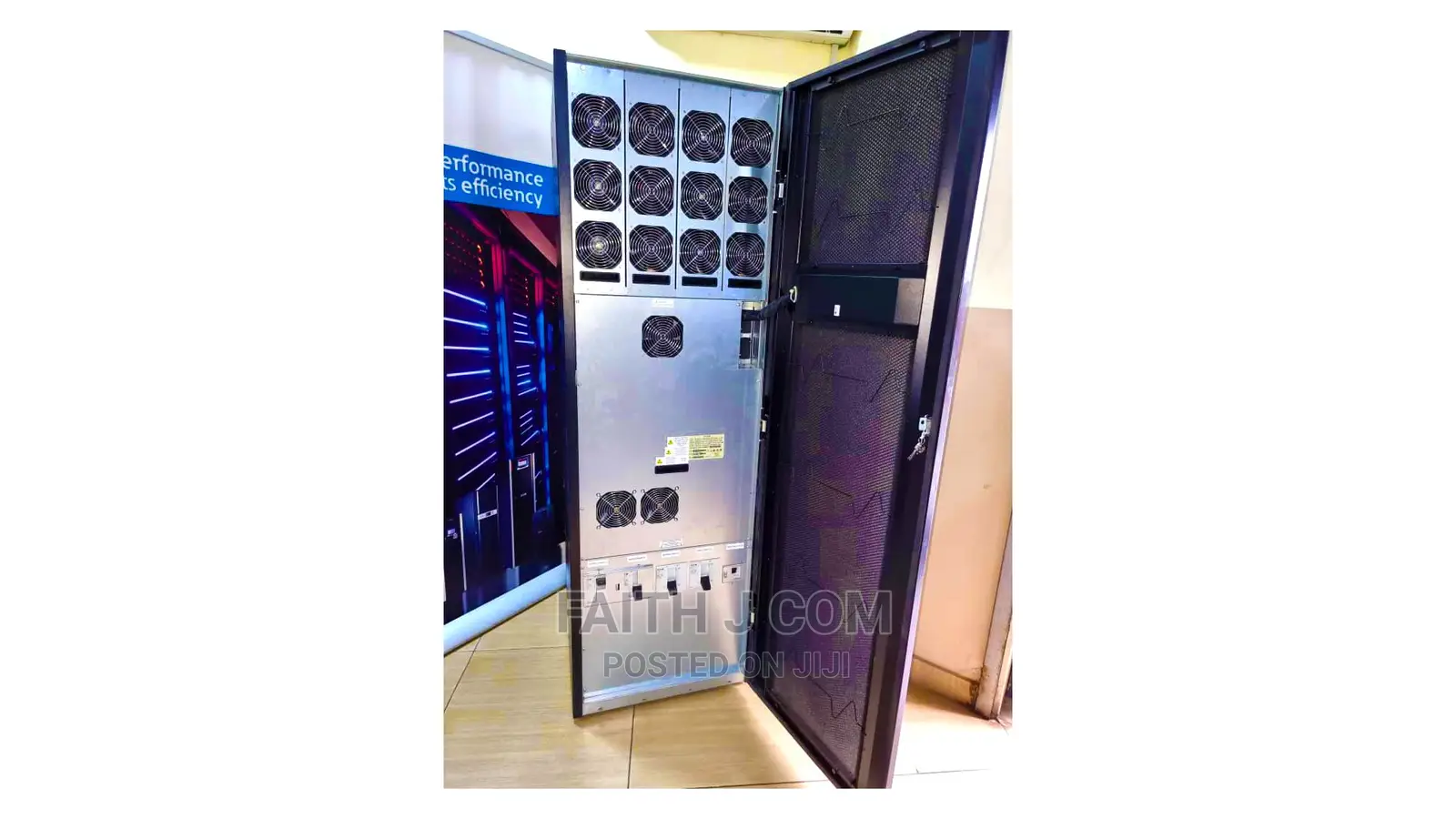

Eaton 93E 100kva UPS

+1

UPS (Uninterruptible Power Supply)

Type

Eaton

Brand

93E-100/100

Model

1

Number of Outlets

12Ah

Battery Capacity

90000watts

Wattage

100000VA

UPS Power

Brand New

Condition

Store address

Lagos State • Ikeja

No 10 Oshintelu Street Computer Village Ikeja Adjacent To Gt Bank

Open now

• Mon - Sat, 08:00-18:00

Model catalogue reference: 93E-100/100 UPS topology: Double conversion, IGBT converters UPS dimensions (width x depth x height) mm3: 600 x 800 x 1880 mm Weight (kg) without batteries: 283 Weight with internal batteries (kg): Bottom / rear UPS colour: Black, RAL 9005 Rated output power: 100kVA/90kW Battery technology: 12 V, VRLA Battery design life: 5 or 10 years Battery quantity: 36 blocks, 216 cells per battery string or 38 blocks, 228 cells per battery string or 40 blocks, 240 cells per battery string (default) Battery voltage: 432 V (216 Cells) or 456 V (228 Cells) or 480 V (240 Cells, Default) Recharge time to 90 % capacity: Maximum 10 hours recommended (dependent on battery size) Recharge profile: Advanced Battery Management (ABM) = 90% resting,10% floating/charging (typical) End of discharge voltage: 216 Cells = 1.8V/Cell, 228 Cells = 1.73V/Cell, 240 Cells = 1.67V/Cell Charging current (at full load): 40 A
