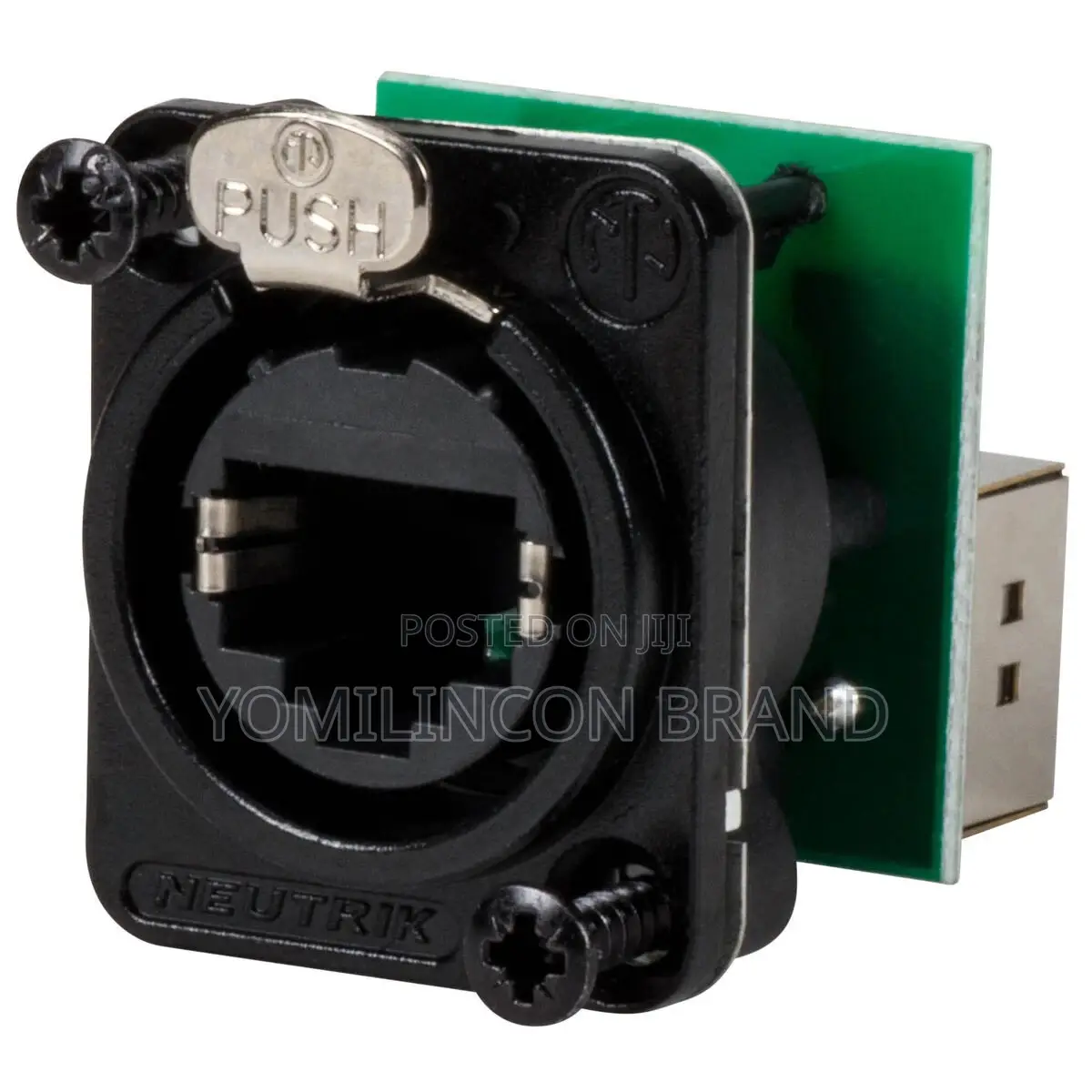

Neutrik Ne8fdp-Black
connector
Type
Brand New
Condition
Neutrik
Brand
Store address
Lagos State • Lagos Island (Eko)
4, Gods Power Street, Ikorodu
Title
ne8fdp-b
gender
female
electrical
contact resistance
< 10 mω
dielectric strength
1 kvdc
frequencyrange
1 - 100 mhz
insulation resistance
> 0.5 gω
rated current per contact
1,5 a
rated voltage
< 50 v
transmission performance
cat 5e
standard compliance
tia/eia 586b, iec11801
mechanical
insertion force
≤ 20 n
withdrawal force
≤ 20 n
lifetime
> 1000 mating cycles
panel thickness
max. 4 mm 0.16'
wiring
feedthrough
locking device
latch lock
chassis shape
d
material
contact plating
0.2 μm au over ni plating
contacts
bronze (cusn8)
insert
pbtp 15 % gr
shell
zinc diecast (znal4cu1)
shell plating
black chromium
environmental
flammability
ul 94 v-0
temperature range
-30 °c to +80 °c
