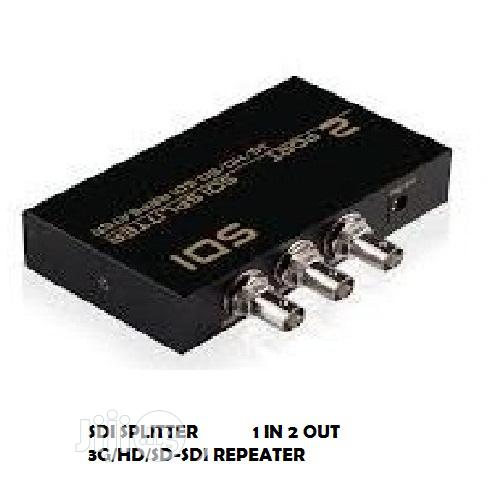

1.Sdi splitter function
after 3 installation is done,the splitter can start normal working.It can support sd-sdi(270mbps),hd-sdi(1.485gbps) and 3g-sdi(2.97gbps) and distribute to 2 simultanous sdi outputs.
2. Sdi repeaterfunction
this splitter provides equalized and re-cloked transmission,and supports signal input and output distances of up to 400meters for sd-sdi signal,200meters for hd-sdi signal and 100meters for 3g-sdi signal.
Note:tested by belden 1694a cable,the distance may vary if by cables of different specification.
3. Wide valtage design
sdi splitter applies wide votage inside design.It can support dc 5v~30v voltage input (lowest power is 5v) and is more suitable for projects.
4. Intelligent design
it is plug and play and can detect sdi signal automatically.
