Water Pump

+1

Grundfos

Kaya

Magudanar Ruwa

Nau'i

Sabo Fil

Yanayi

15kW

Karfin Fanfo

500L/min

Karfin aikin Fanfo

18bar

Karfi

20

Karfin na'ura

380V

Karfin wuta

Adireshin shago

2

Jiha Lagos • Orile

Coka market, after oduwade bridge

A rufe yanzu

• Lit - Asa, 08:00-18:00

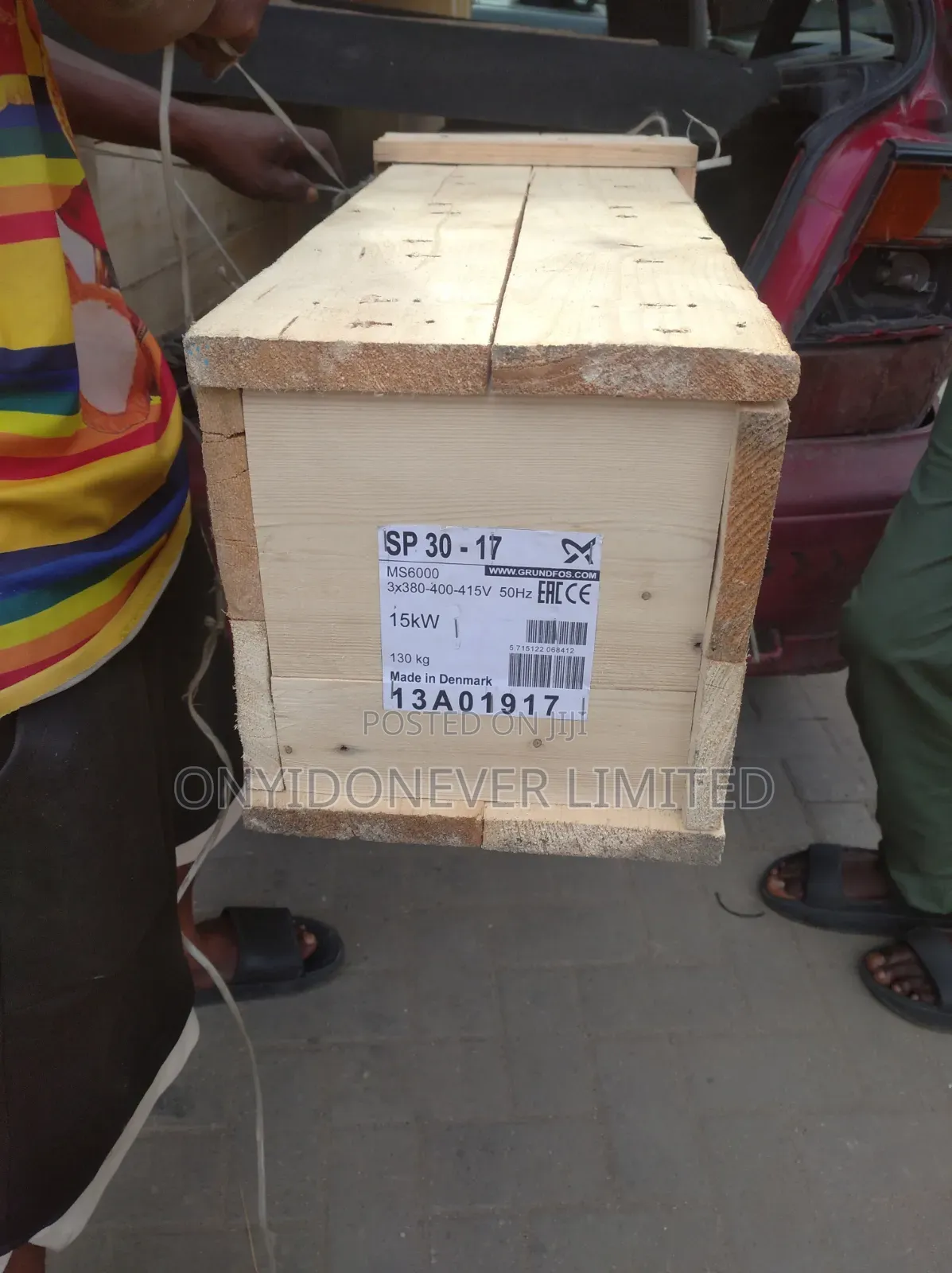

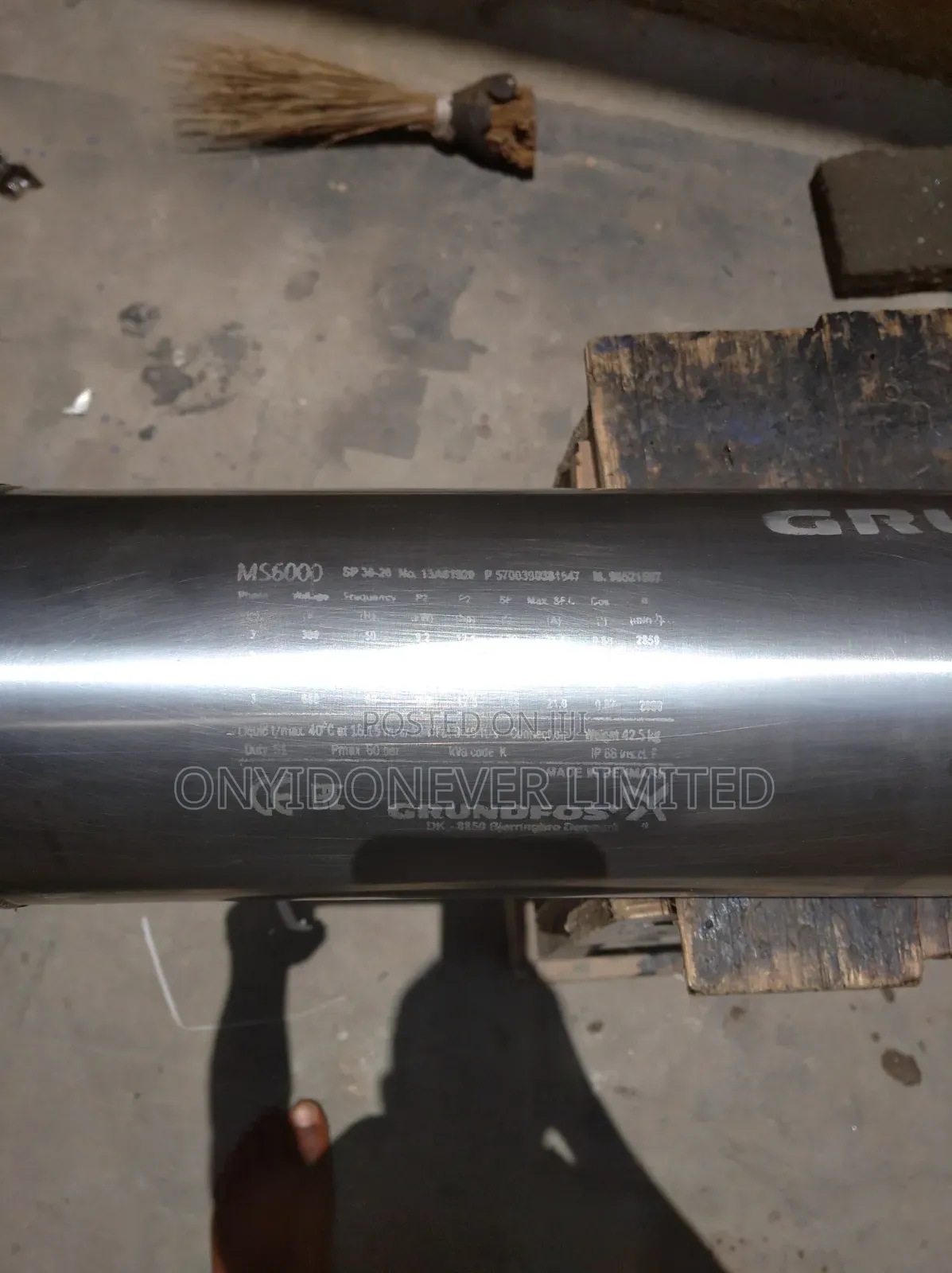

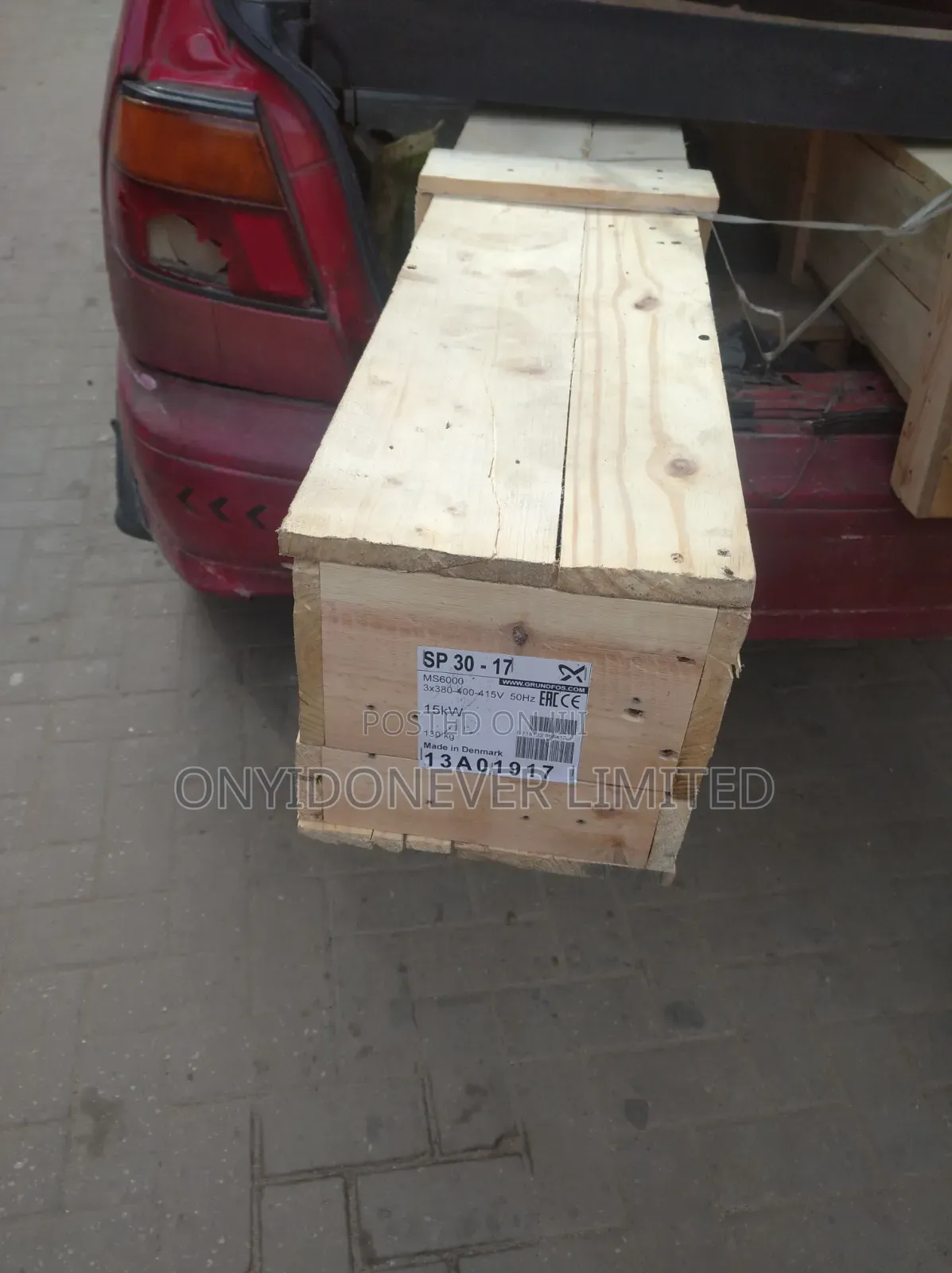

G *SP30-17* is a submersible borehole pump model code. *What it means:* - *SP* = *S*ubmersible *P*ump. It goes inside the borehole underwater. - *30* = Max flow of *30m3/hour* ≈ 500 Liters per minute. - *17* = *17 stages*. Each stage adds pressure. More stages = can pump deeper/higher. *Typical Specs:* - *Power*: 7.5HP to 11HP. Runs on *380V 3-phase* only. - *Watts*: ∼5600W to 8200W running. Needs 30kVA+ generator to start it. - *Head*: 140m to 180m max. Can pump from very deep boreholes. - *Pressure*: 14 to 18 bar. - *Borehole size*: Needs 6-inch or 8-inch casing. - *Body*: Stainless steel to resist rust. *Best For:* Big jobs. Estates with 50-100 flats, hotels, schools, hospitals, and farms. It can fill a 10,000L tank in about 20 minutes.
