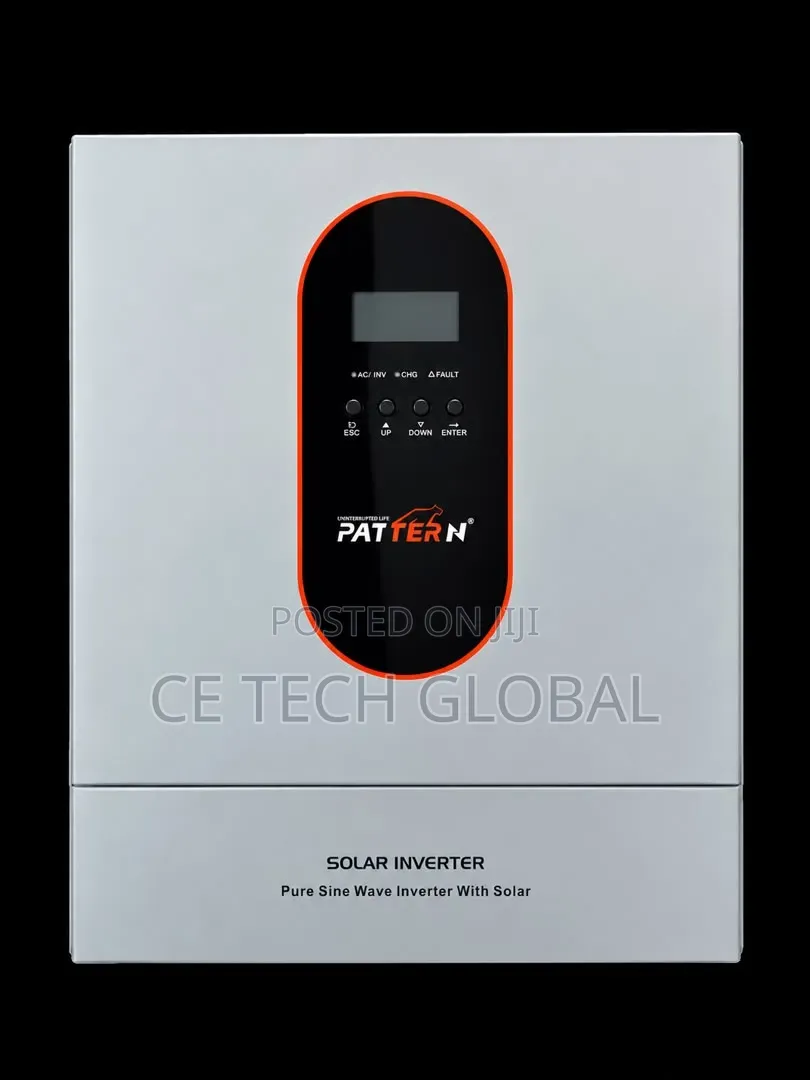

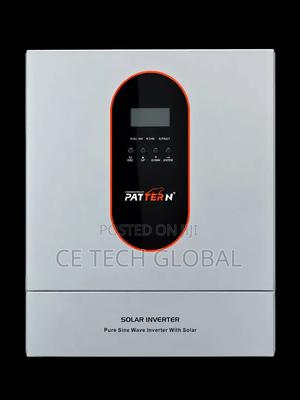

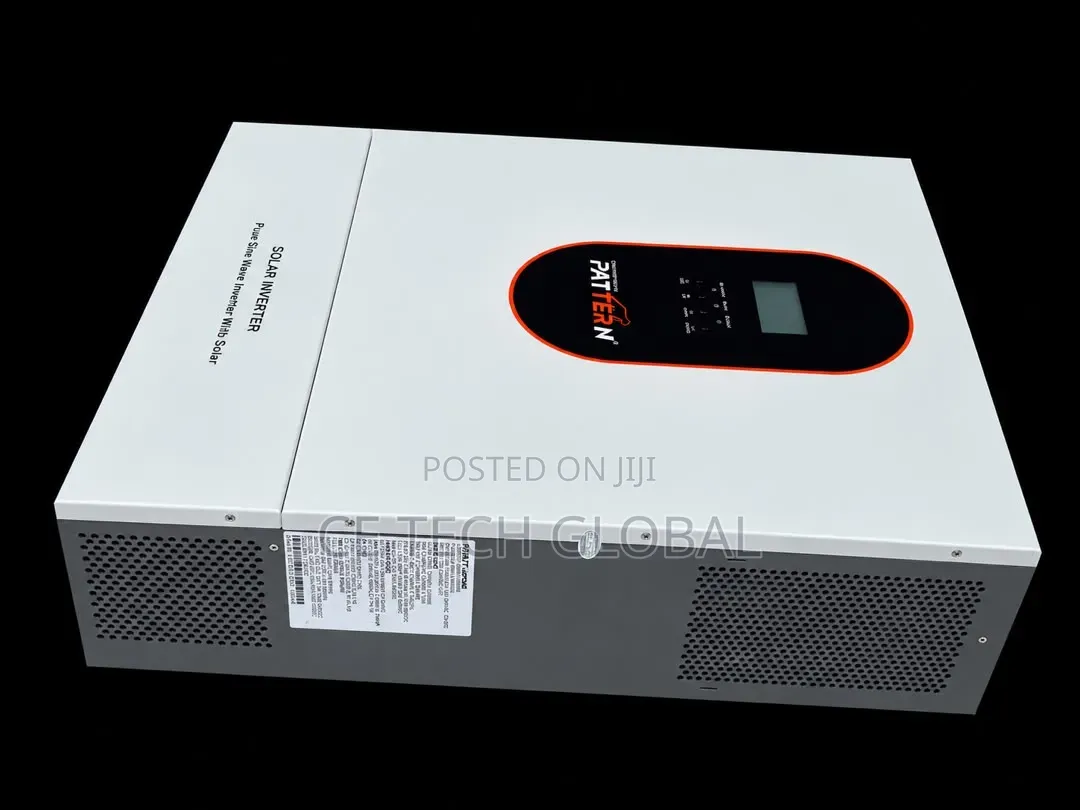

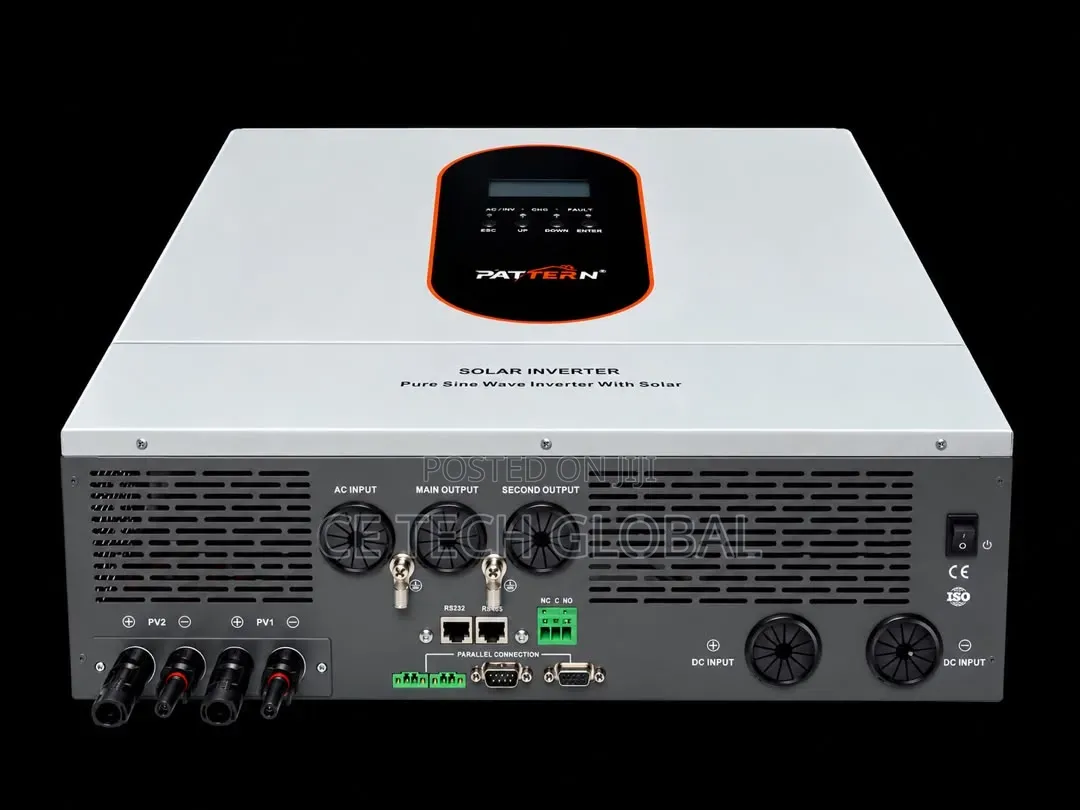

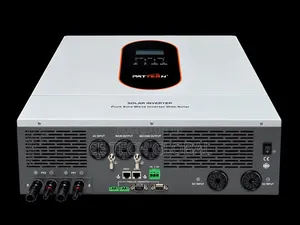

Pattern 12kw/12kva 48v Hybrid Inverter

+1

Pattern

Kaya

Inverters

Nau'i

Hybrid Inverter

Nau'in Inverter

50/60 Hz Auto, haz 60, haz 50

Yawa

Sabo Fil

Yanayi

12000watts

Ƙarfin Fitarwa da Aka Kimanta

24000watts

Ƙarfin Kololuwa

Adireshin dakin ajiya

Jiha Lagos • Ojo

Shop f1861 and shop 1533up f line section ojo alaba international market

A rufe yanzu

• Lit - Asa, 08:00-18:00

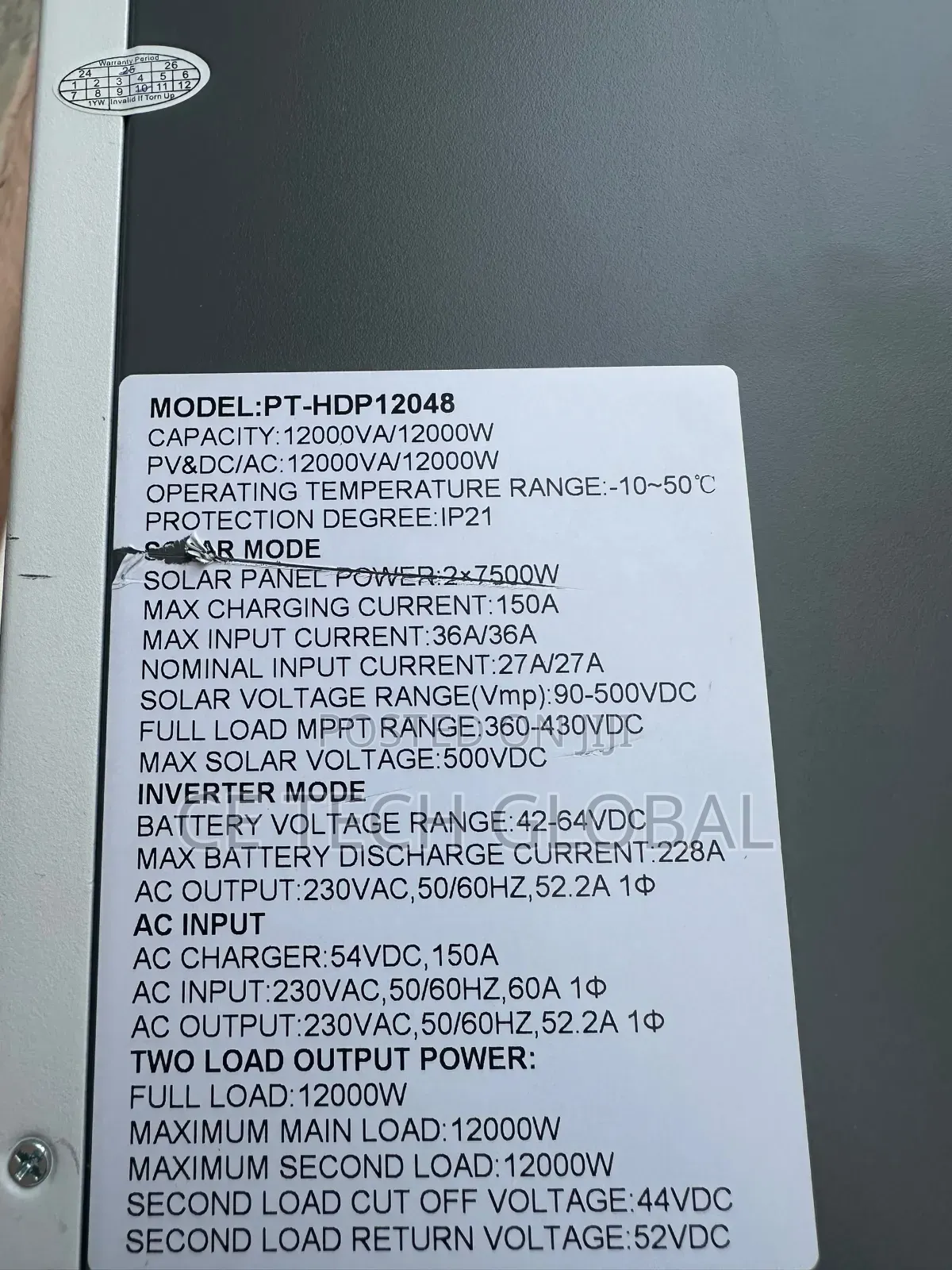

Attern pt-hdp12048 – 12kw 48v pure sine wave hybrid solar inverter category specification model pt-hdp12048 rated capacity 12000va / 12000w wave type pure sine wave battery system 48v (range 42-64 vdc) max battery discharge current 228a ac charger 54 vdc, 150a solar input (pv) 2 × 7500w* pv voltage range (vmp) 90-500 vdc (max 500 vdc) full-load mppt range 360-430 vdc pv input current 27a/27a nominal, 36a/36a max max solar charging current 150a ac input 230 vac, 50/60hz, 60a, single phase ac output 230 vac, 50/60hz, 52.2a, single phase load outputs two outputs, 12000w max each second load cut-off / return 44 vdc / 52 vdc operating temperature -10 to 50°c protection rating ip21 (indoor use) warranty 1 year (
