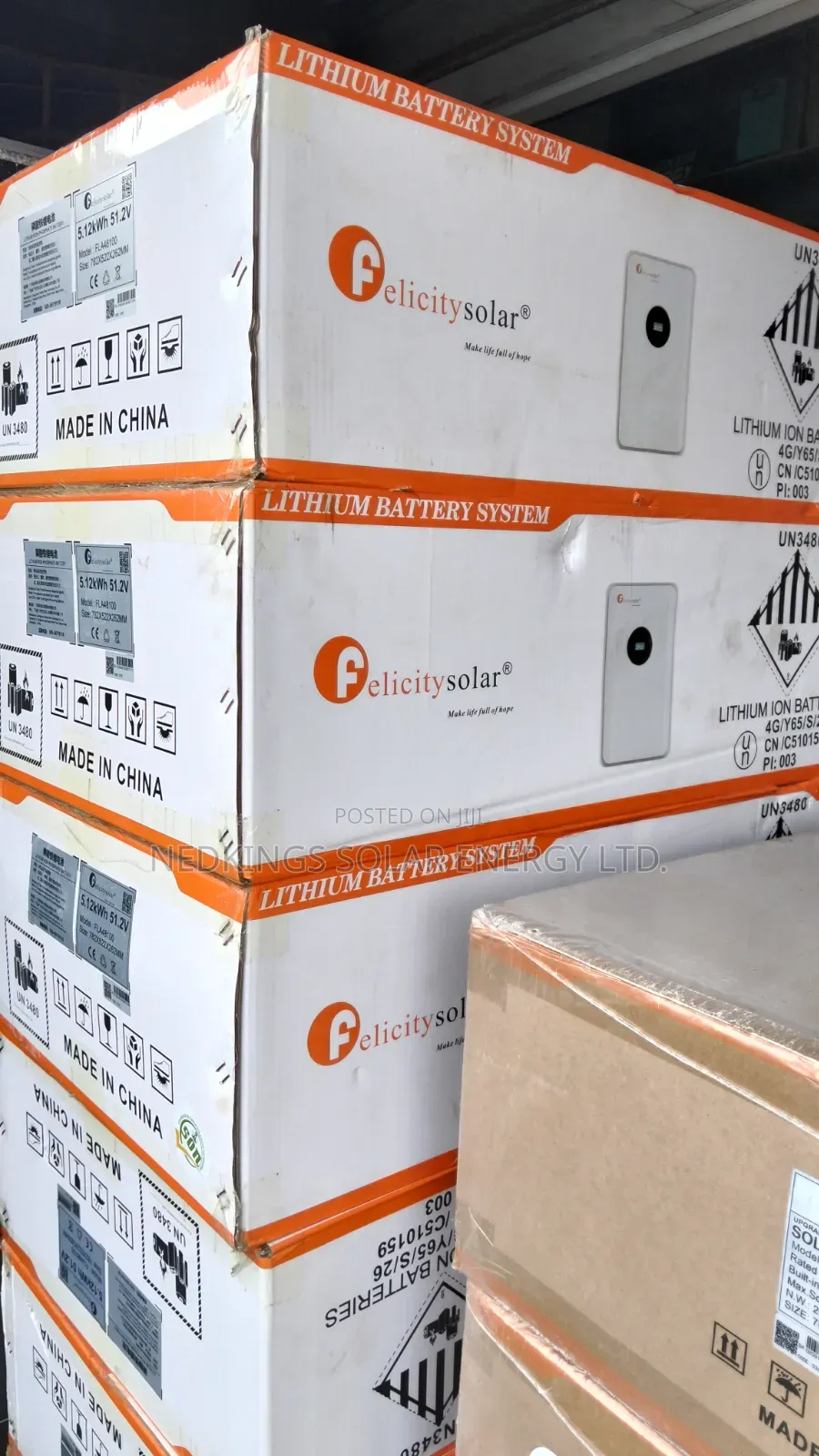

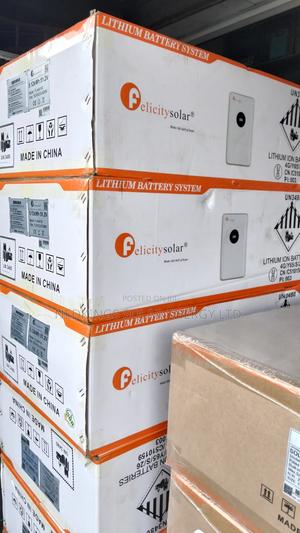

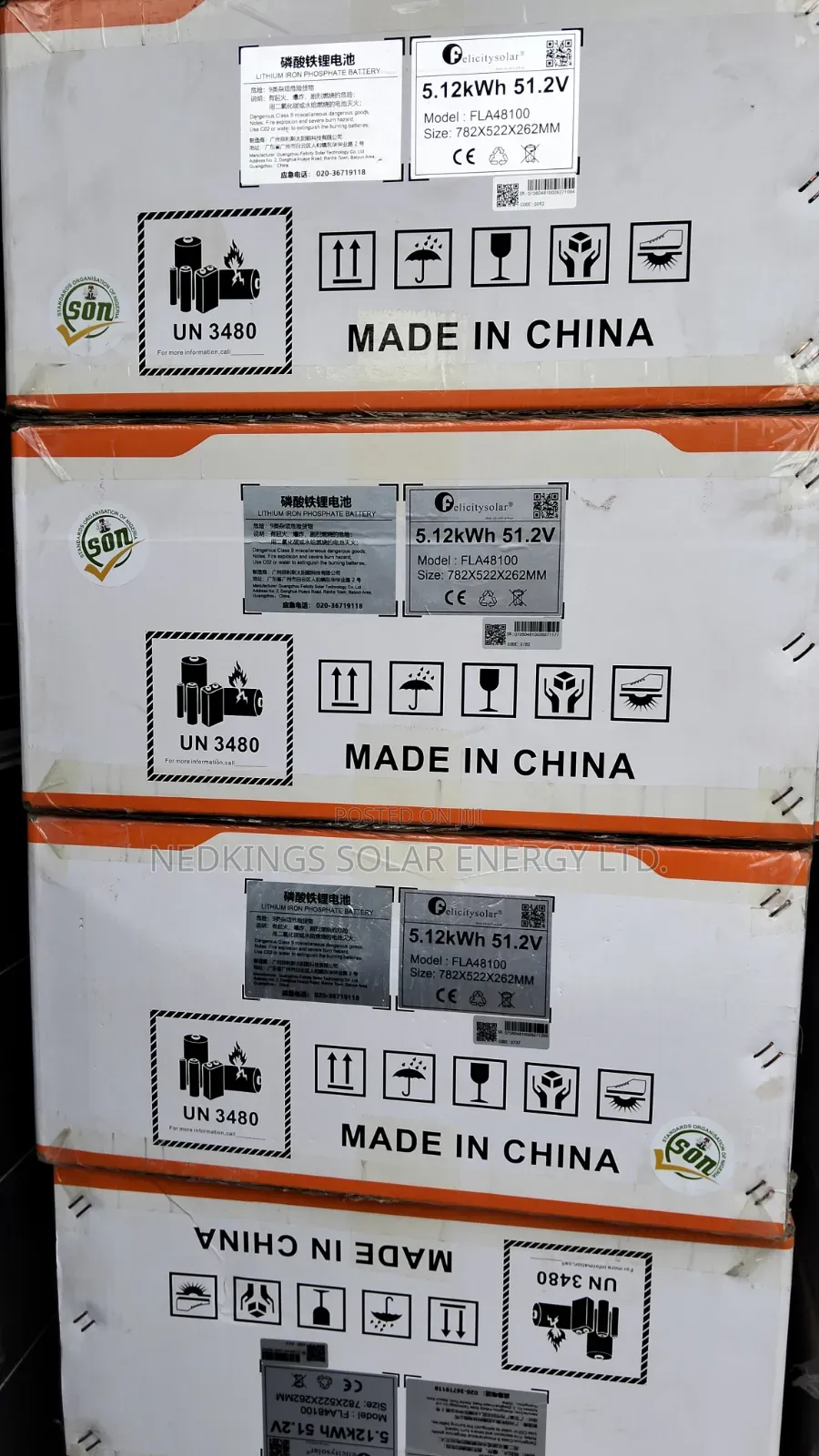

The felicity fla48100 5kwh 48v lithium battery is a high-performance felicity battery fla48100 5kw energy storage system built with safe lithium iron phosphate (lifepo4) chemistry.
key technical specifications
total energy capacity: 5 kwh (nominal capacity: 100ah)
nominal voltage: 51.2v
operating voltage range: 48v – 57.6v (charge voltage: 57.6v)
depth of discharge (dod): ≥ 95%cycle life: ≥ 6,000 cycles (at 25°c, 80% dod)
max charge/discharge current: 100a (recommended ≤ 50a)
max output power: 5,000w (recommended 2,500w)
scalability: up to 6 units in parallel (30 kwh total)
communication: can and rs485 for inverter integration
dimensions: 575 × 430 × 258 mmnet weight: 63 kg
