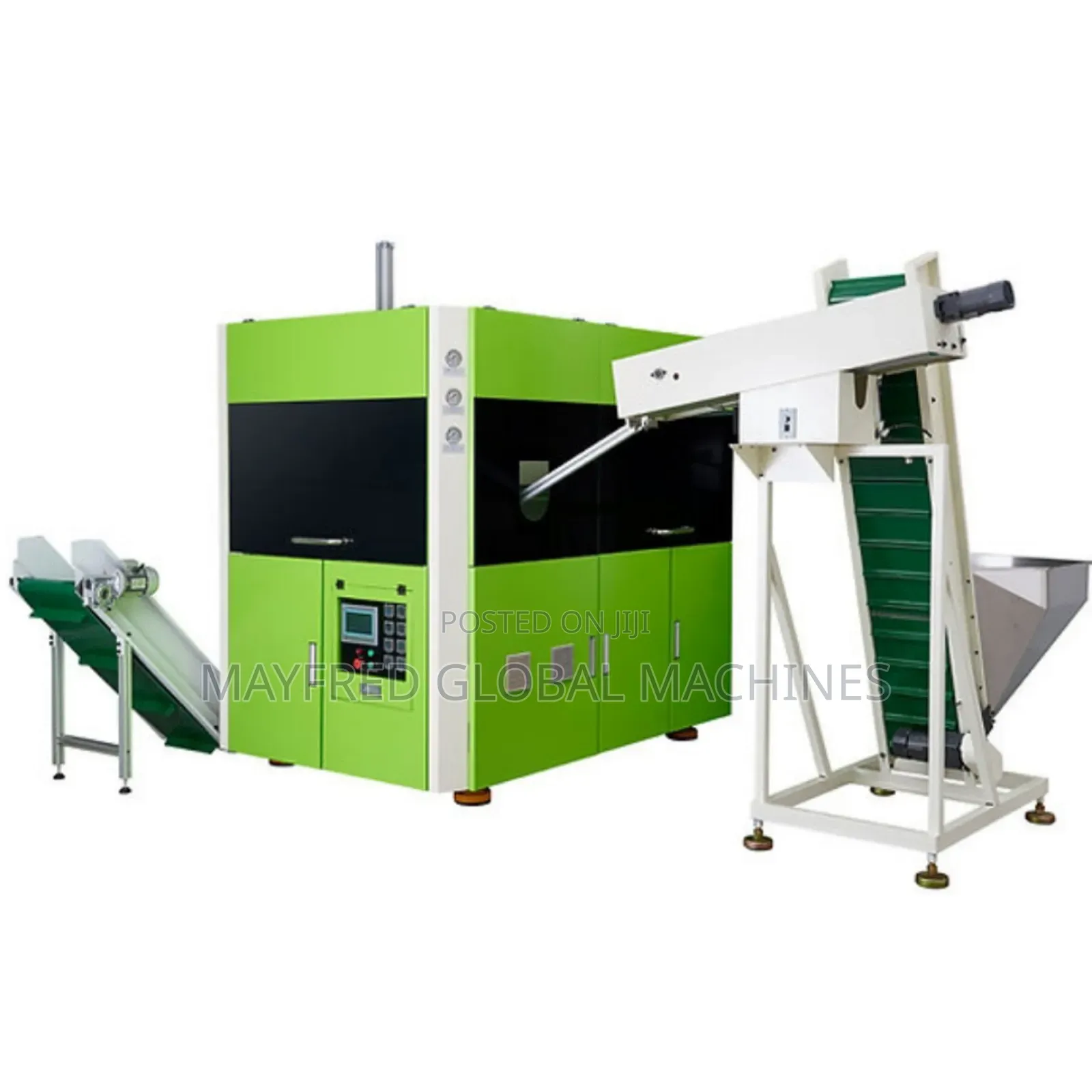

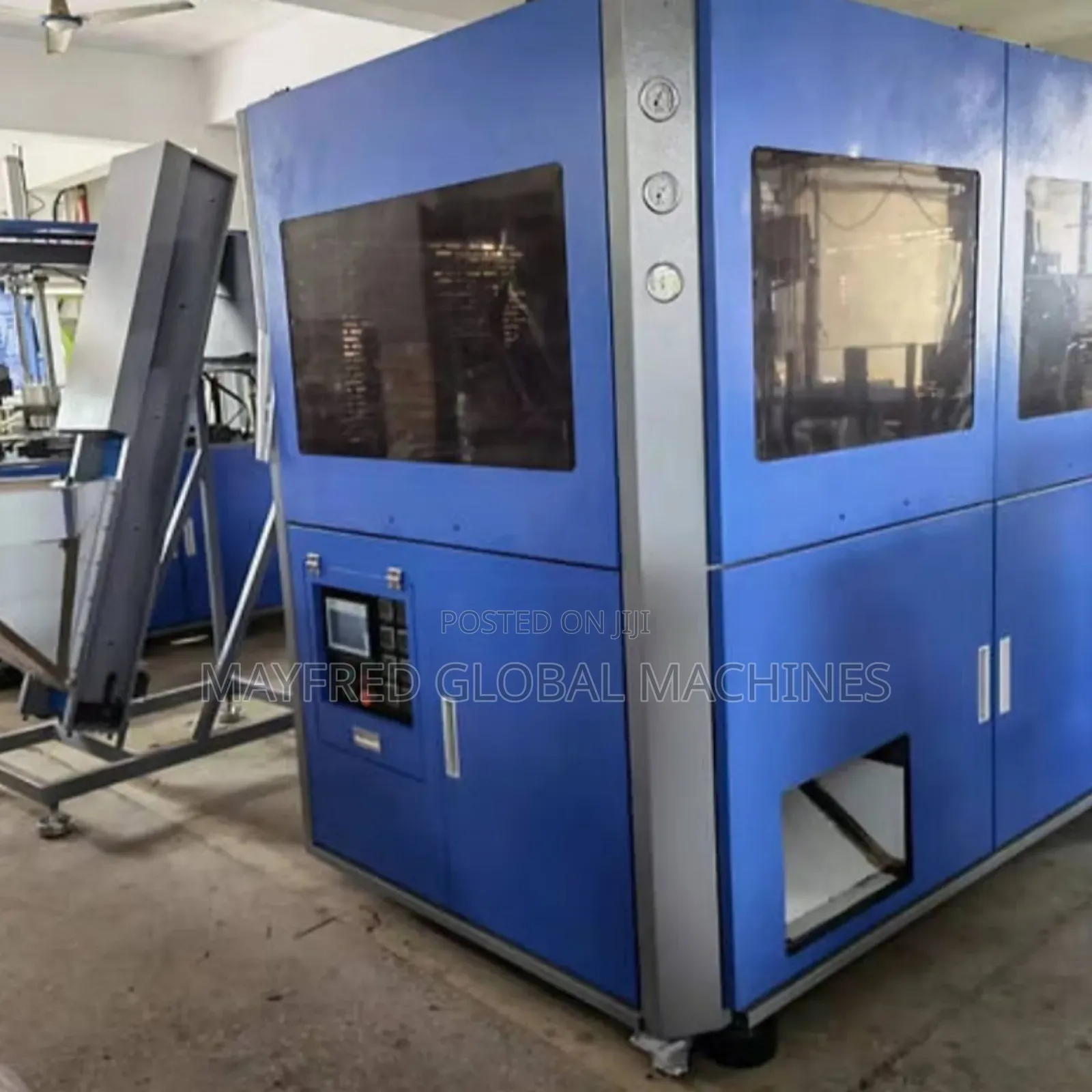

Automatic Plastic Bottle Making Machine
Injin hada kwalabe
Nau'i
Sabo Fil
Yanayi
Og-3 automatic 3 cavity bottle blowing machine
model : ogm-3
theoretical output pcs/h 2300
product :
max. volume l 1.5
max. height mm 360
max. diameter mm 105
mould :
number of cavities / 3
mould plate dimension (l*h) mm 490*490
mould thickness mm 280
mould opening stroke mm 220
electrical :
power - 220-380v/ 50-60hz
total power kw 18
heating power kw 15
air system :
operation pressure mpa 0.8-1.0
action air consuming m3/min ≥1.0
blowing pressure mpa 2.6-3.0
blowing air consuming m3/min ≥1.6
machine :
main body dimension (l*w*h) m 2.05*1.45*2.2
main body weight kg 1500
preform autoloader (l*w*h) m 1.6*0.85*2.2
preform autoloder weight kg 200
₦ 41,200,000
