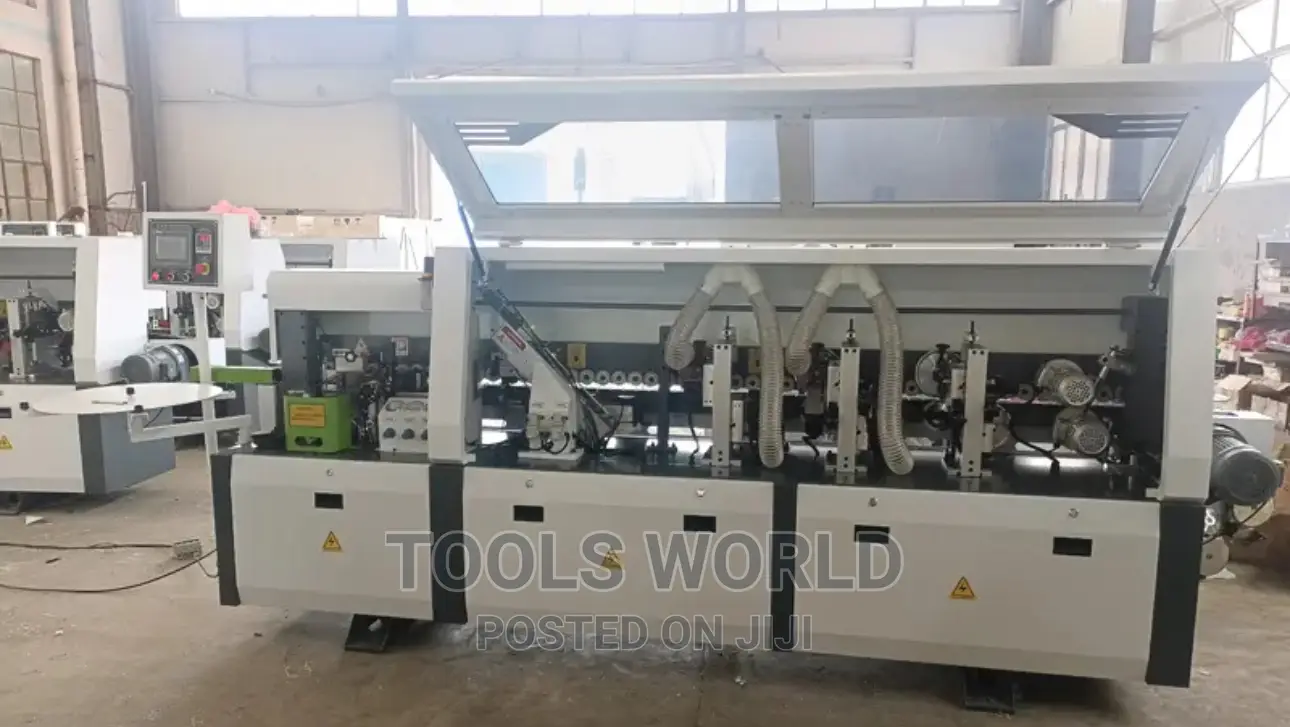

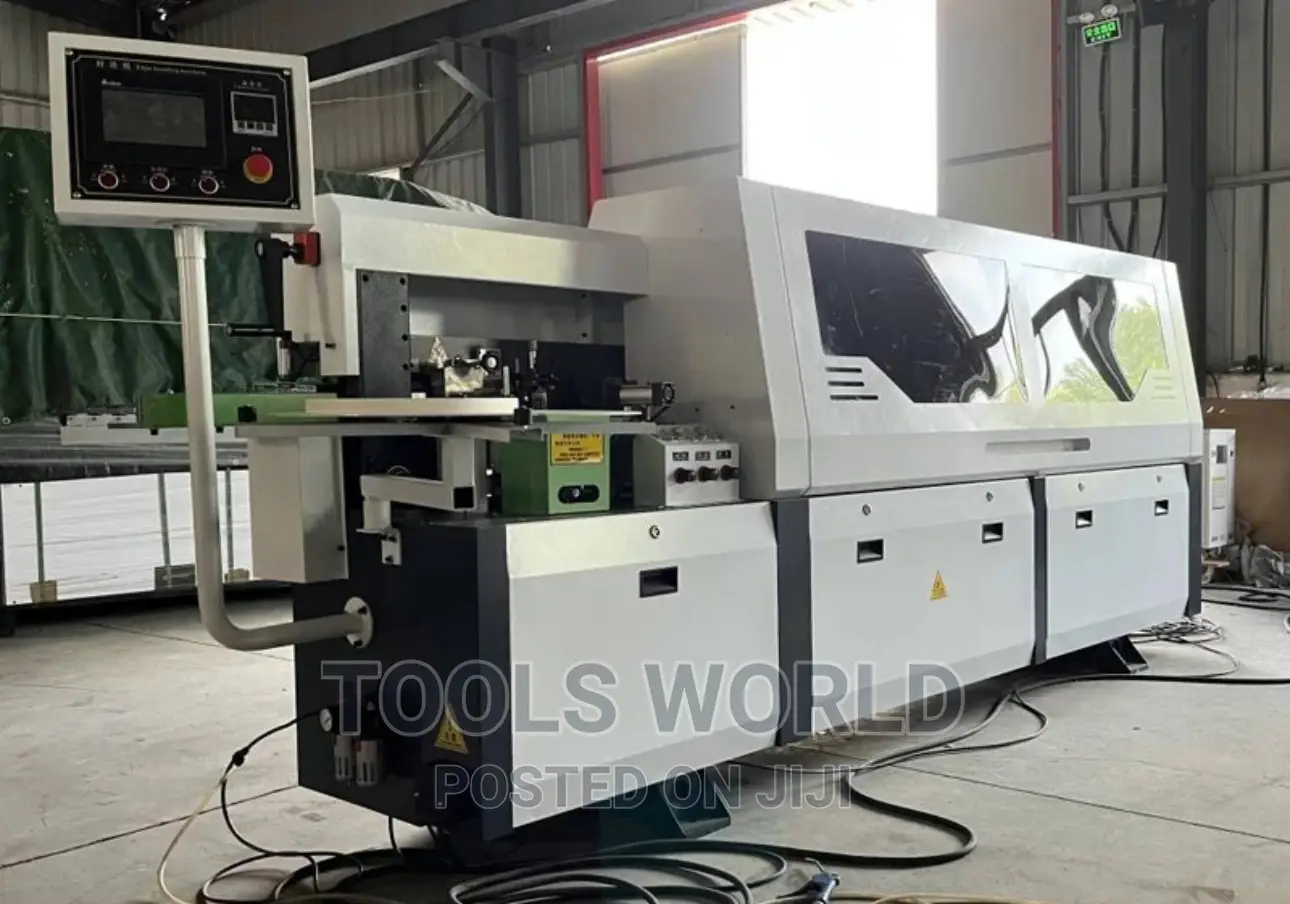

Fully Automatic Auto Linear Multifunction Edge Bander

+1

1

Other

Kaya

Sauran

Nau'i

Sabo Fil

Yanayi

Adireshin dakin ajiya

Jiha Lagos • Lagos Island (Eko)

16 Agarawu Street Lagos Island Idumota

A rufe yanzu

• Lit - Asa, 08:00-18:00

Automatic double repair edge sealing machine configuration Specific functions: preheating, gluing, edging, pressing, cutting, front and back, rough trimming, finishing, scraping, polishing. Dimensions: 3800*900*1500mm Weight: 1200Kg Width of sideband :12-60mm; Edge band thickness :0.4-3mm workpiece thickness: 10-55mm; Minimum length of workpiece: 80mm; Minimum width of workpiece: 80mm; Workpiece conveying speed :18m/min Total power :8.5Kw; Air pressure: 0.6MPa-0.8Mpa Rubber box heating power: 1.8Kw plate preheating power :0.3Kw Transmission power of rubber box :0.55Kw conveyor belt motor power 1.5Kw Head motor power: 0.37Kw*2 12000r/min.200Hz Rough repair motor power: 0.75Kw*2 18000r/min.300Hz Finishing motor power: 0.75Kw*2 18000r/min.300Hz Polishing motor power: 0.18Kw*2

Nuna lamba
