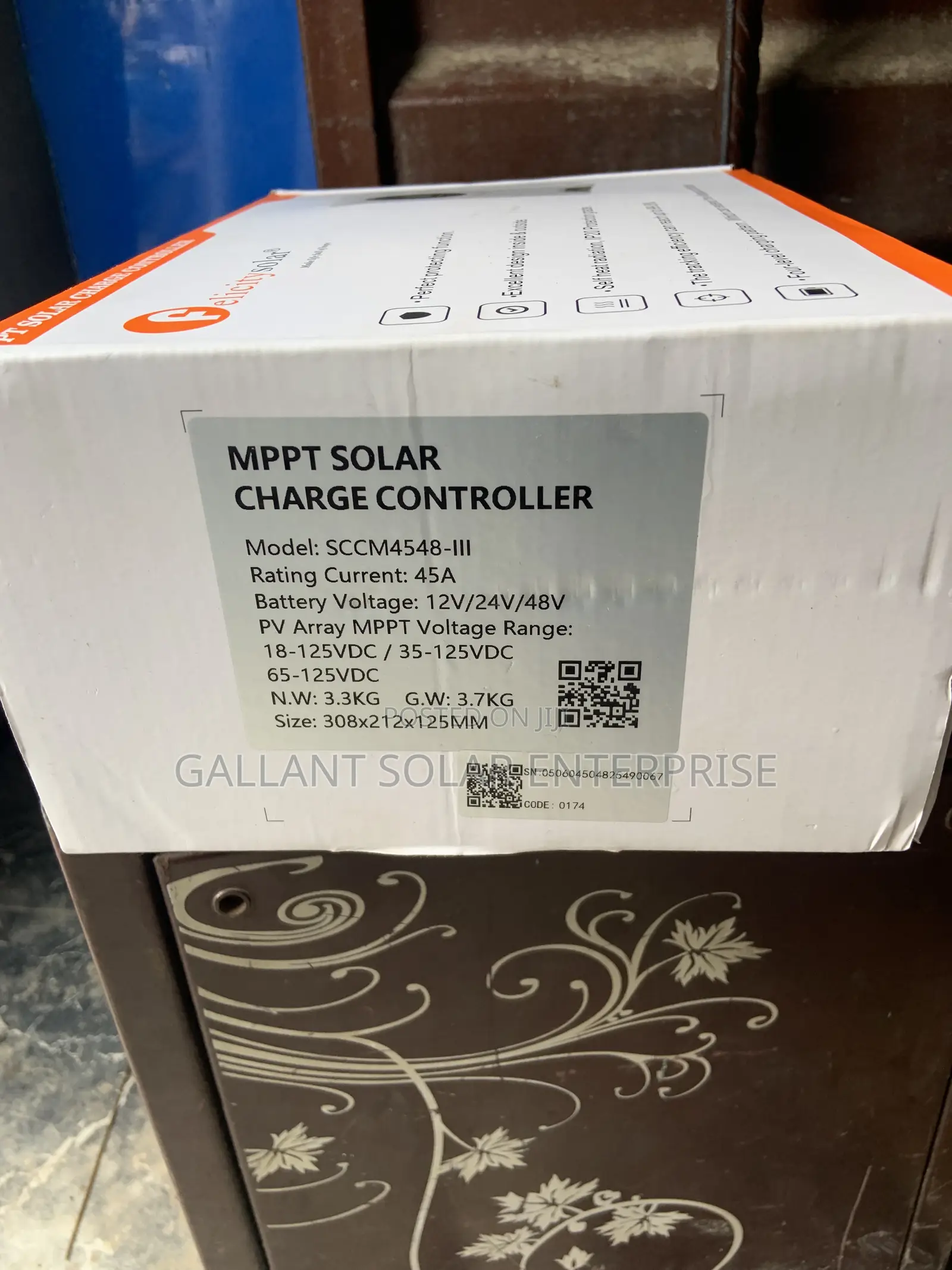

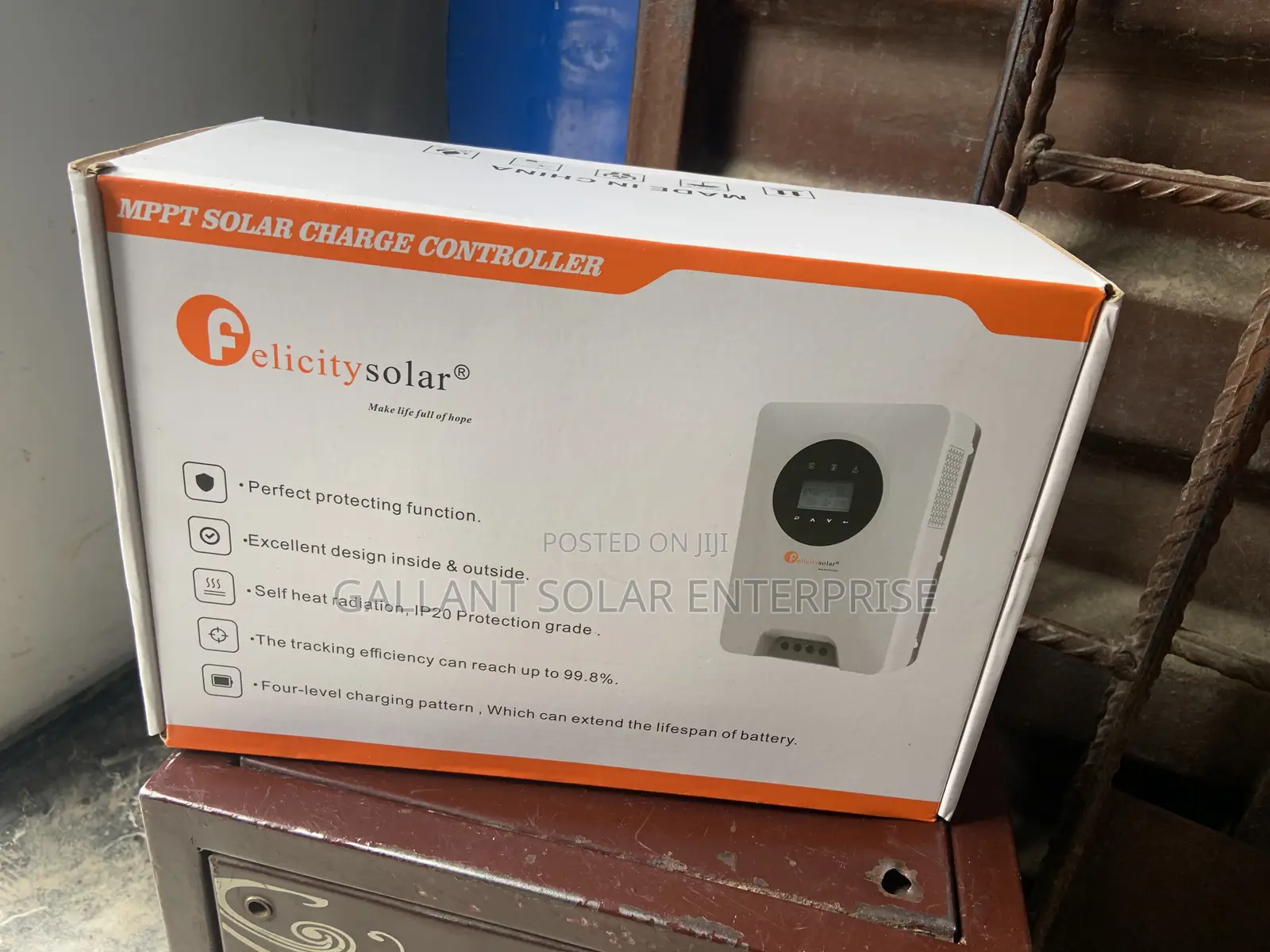

Felicity Solar Charge Controller 45Ah

+1

Felicitysolar

Kaya

Cajar Controller

Nau'i

Sabo Fil

Yanayi

12 V, 24 V, 48 V

Ƙarfin Wuta da Aka Kimanta

45A rated charge current. Supports 12V / 24V / 48V battery systems. Auto voltage detection. • Solar Input: Max PV input 6000W at 48V. Max PV Voc 500V. Dual MPPT inputs on most models so you can connect 2 different panel strings. • Efficiency: MPPT tracking efficiency up to 99%, conversion efficiency up to 98%. • Features: Color LCD touchscreen display, battery type selection for Lead-acid, Gel, AGM, LiFePO4, and Lithium. CAN/RS485/WiFi communication for monitoring via Felicity app. Built-in protections: overcharge, over-discharge, reverse polarity, short circuit, over-temp. • Design: Wall-mount metal casing with fan cooling. Operating temp -10°C to 50°C. Works standalone or with Felicity hybrid inverters. • Use: For medium solar systems. Good pair with Felicity 8kVA or 10kVA inverters + 48V battery bank.
