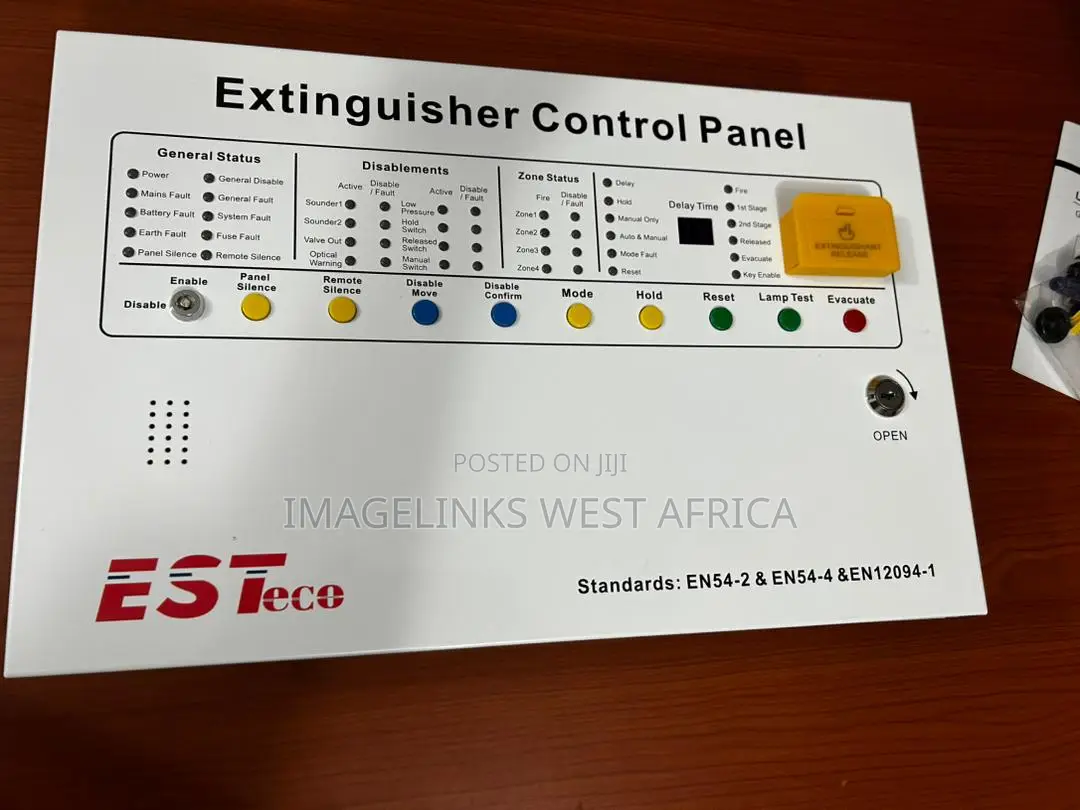

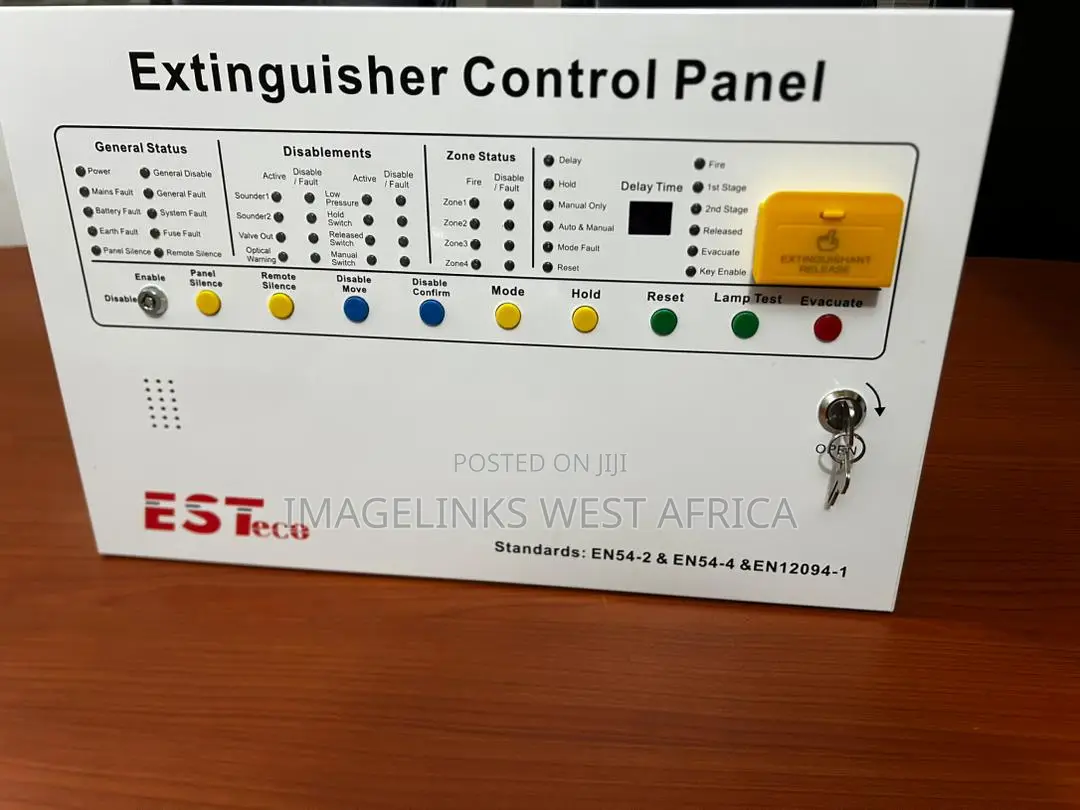

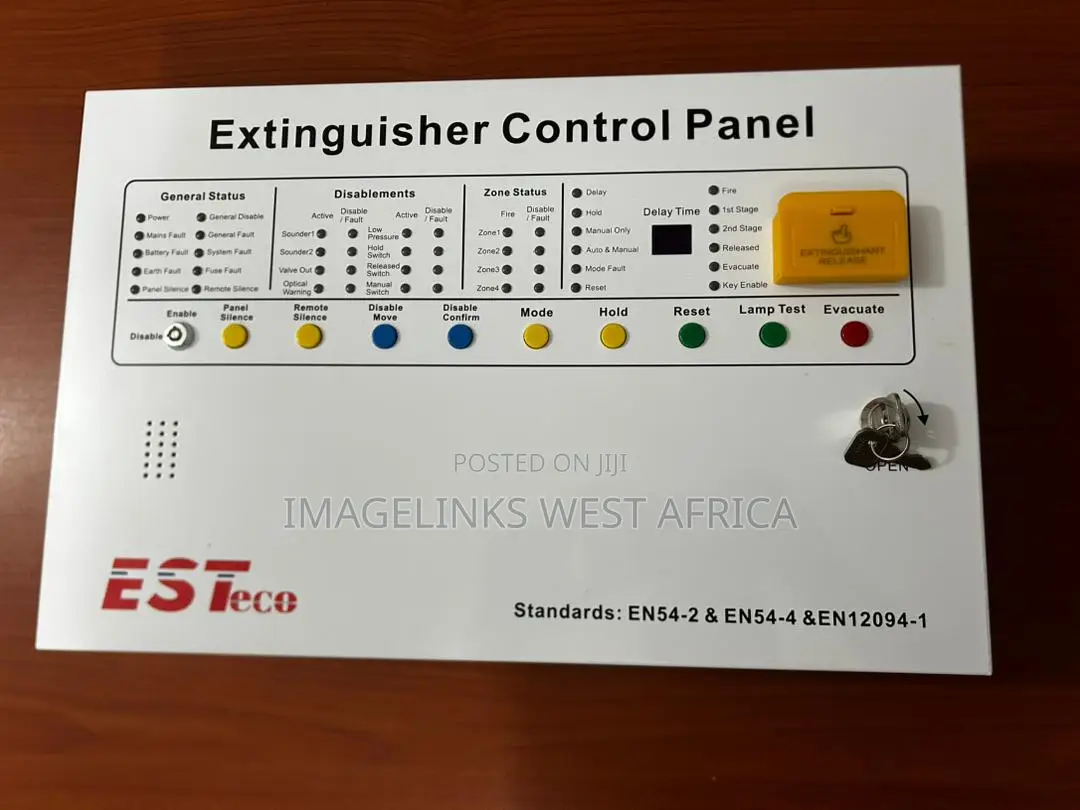

Fire Extinguishing Panel

+1

Na'urar Kararrawa

Nau'i

Sabo Fil

Yanayi

EST

Kaya

A ciki/ a waje

Wurin Daurawa

Hasken sandar wuta

Wurin samun Wuta

Tashar haduwar Sabis

Na'ura ta kunshi

Batirin Gudun Bacin Rana

Siffofin Na'urar Kararrawa

Adireshin dakin ajiya

Jiha Lagos • Maryland

334, IKORODU ROAD, IDIROKO BUSTOP, MARYLAND

YEMKEM BUILIDNG, ON THE SERVICE LANE FACING OJOTA ROAD BESIDE APTECH BUILDING

A rufe yanzu

• Lit - Jum, 08:00-17:00

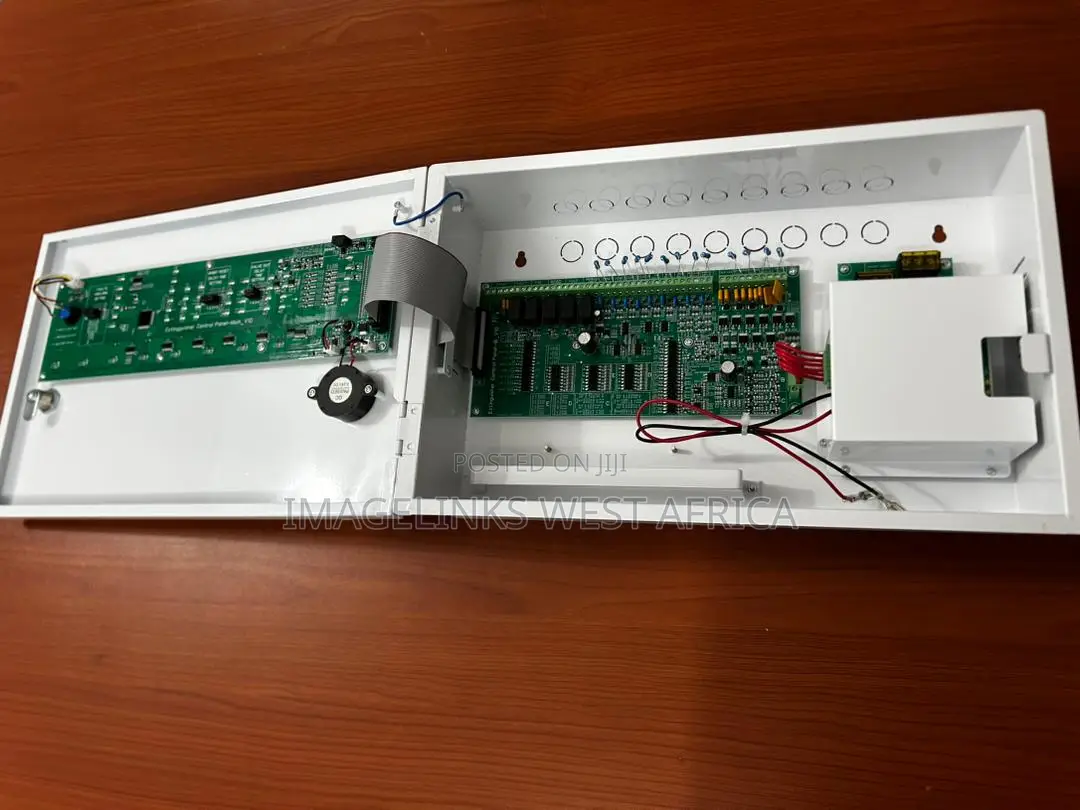

The panel shall be mounted on a dry, flat wall, maintained at sight height to ensure external chassis balance. The panel should be fixed by 3 pcs of M6mm screws properly. The panel should not be installed in a sealed environment or near an over heat source. Suitable insulated cables should be used in the corresponding position. If additional cable entry points are required, all chips and debris generated by drilling must be removed before the panel is energized. There are four alarm zones for the alarm signal input from external devices. Pay attention to the polarity of the terminal when wiring, and paralleled connect a 6.8 KΩ / 1W resistor in the end of input circuit. Each zone could be connected 10 detectors in maximum
