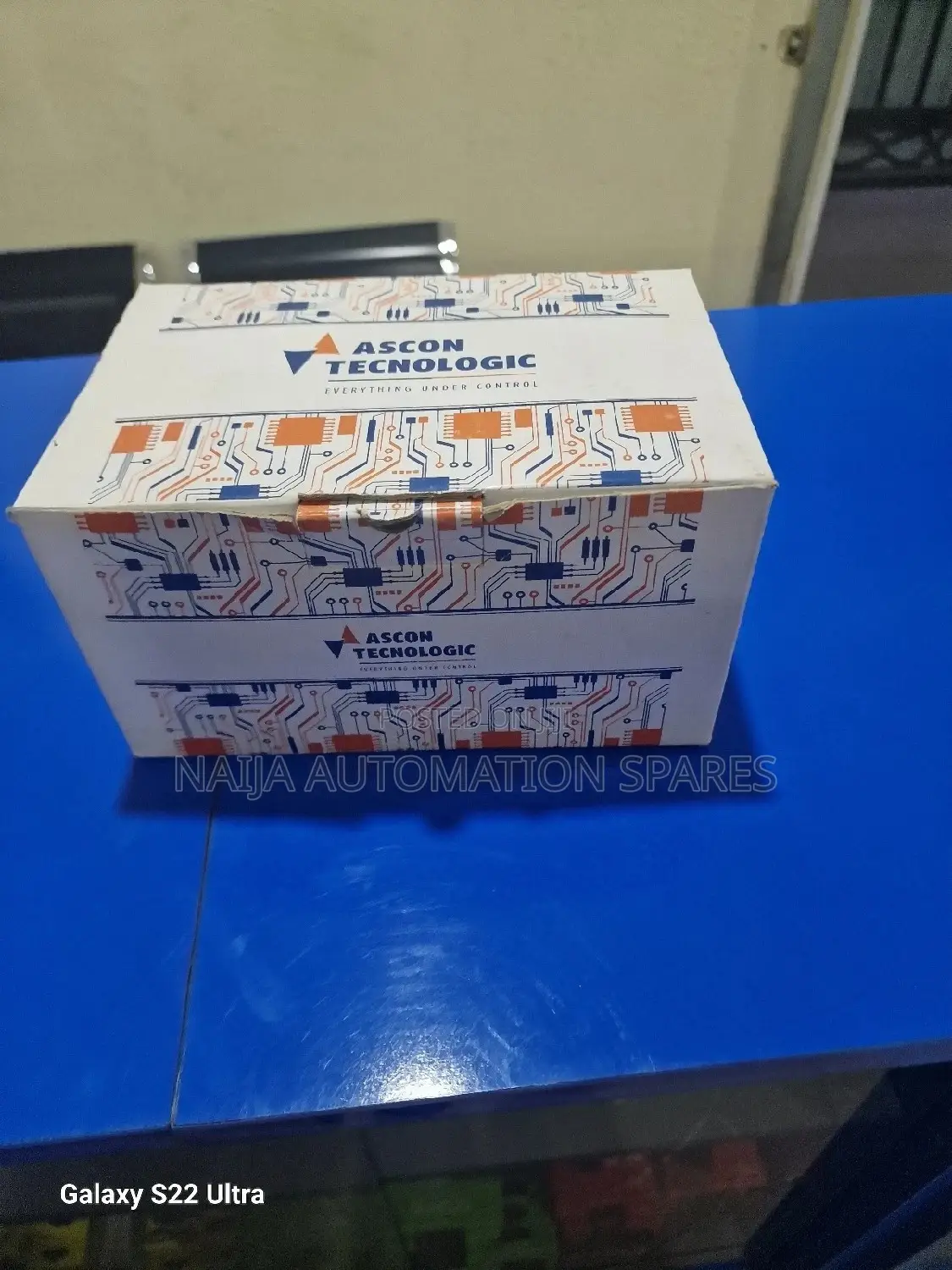

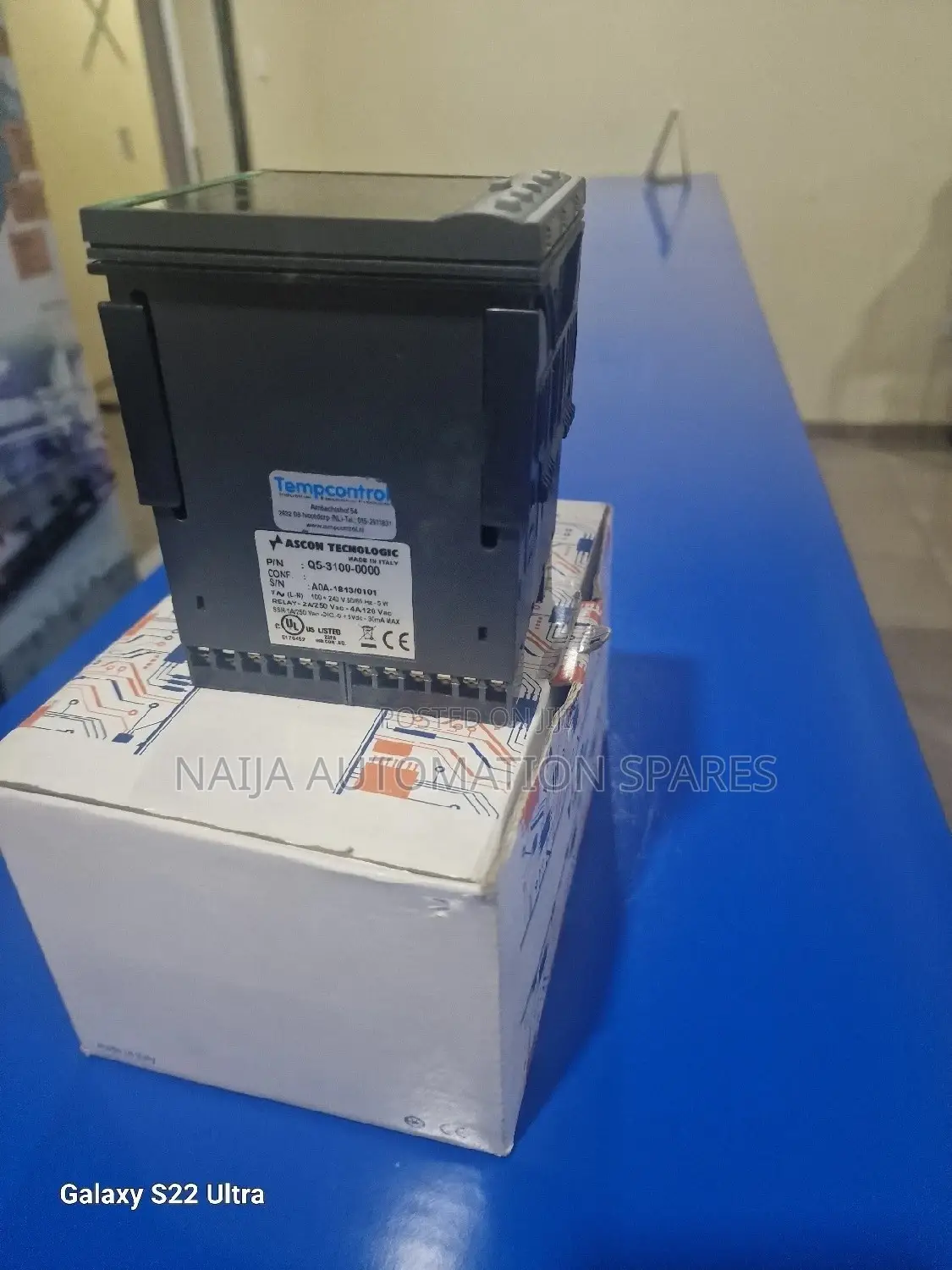

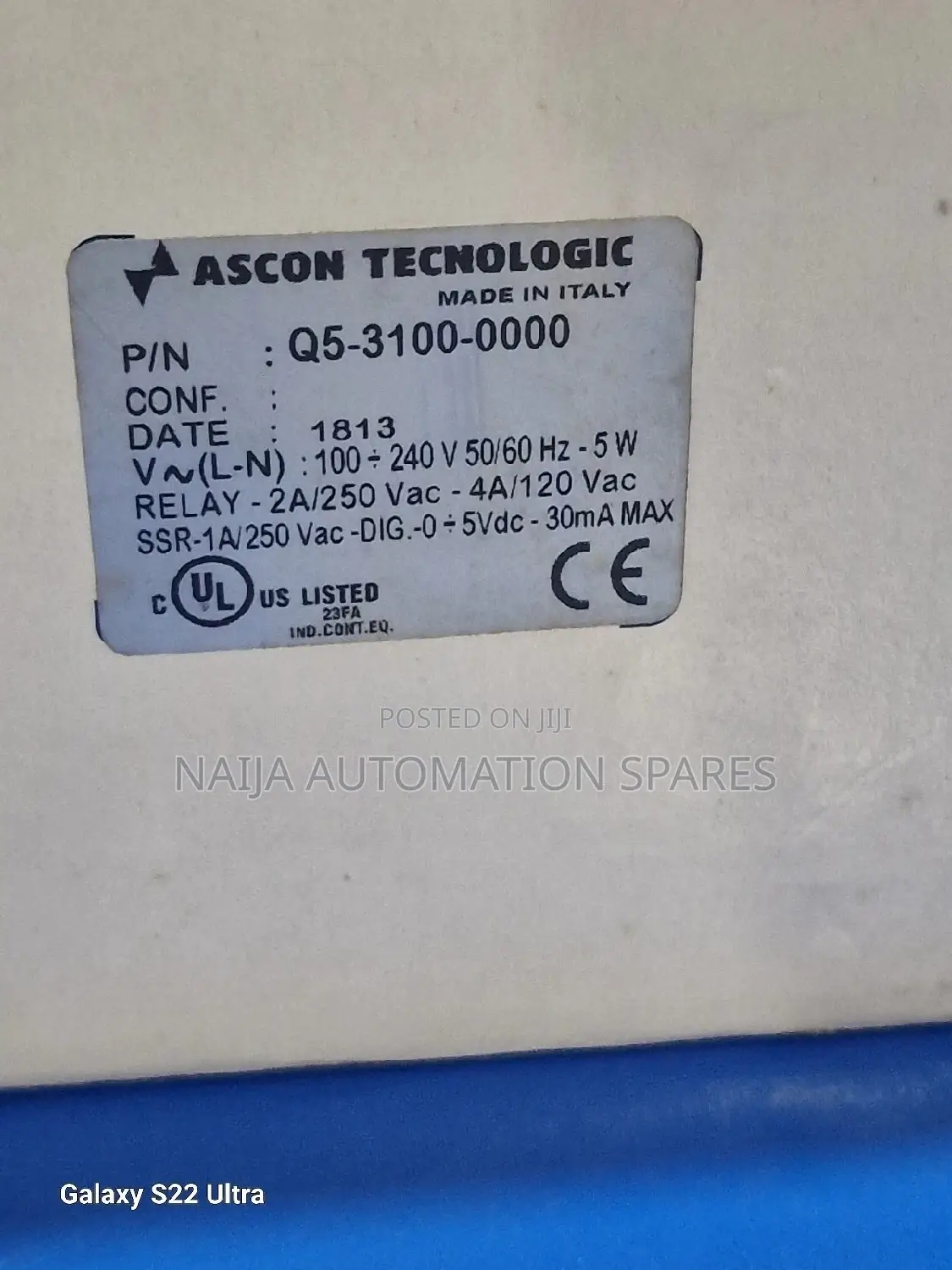

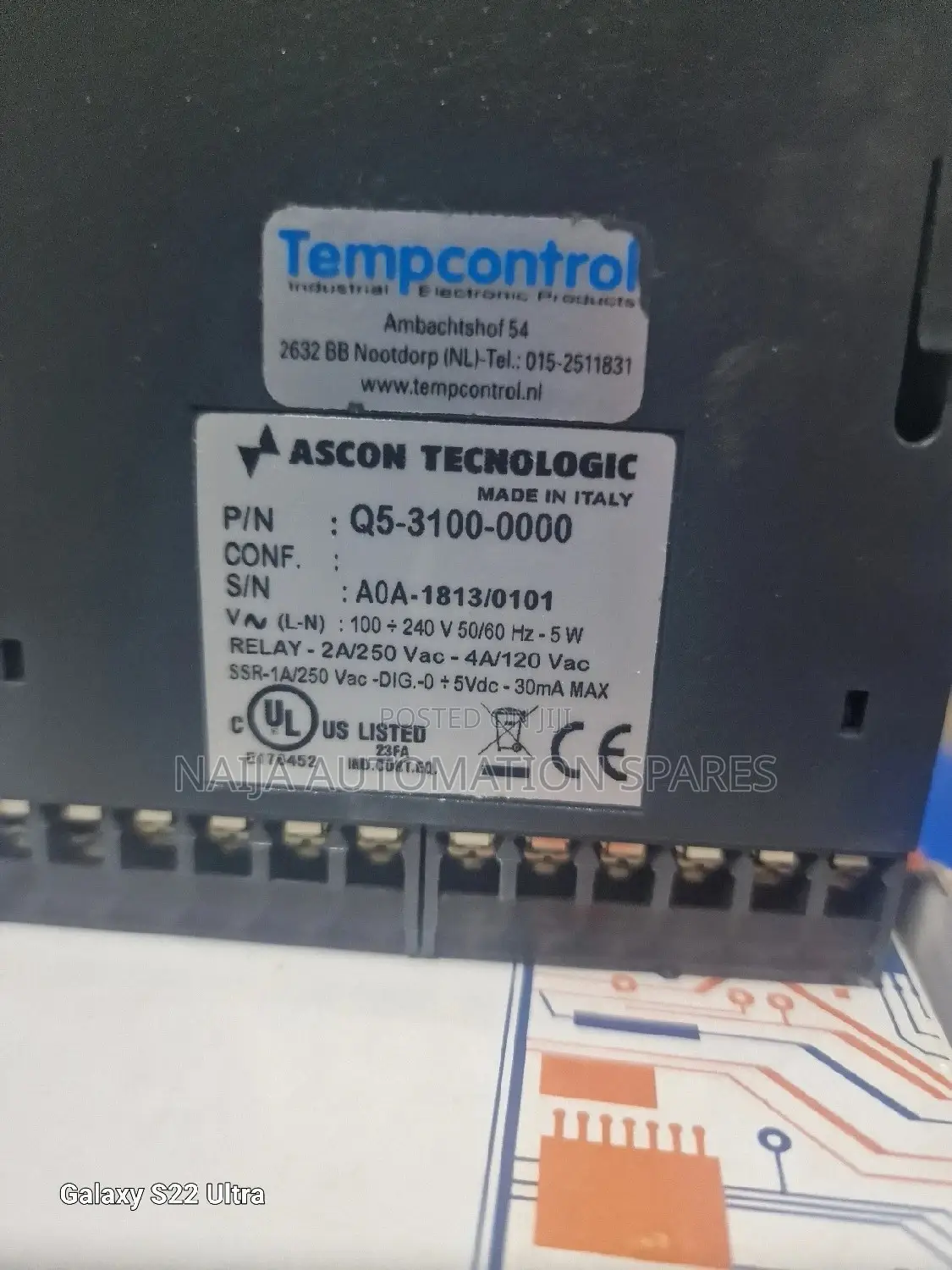

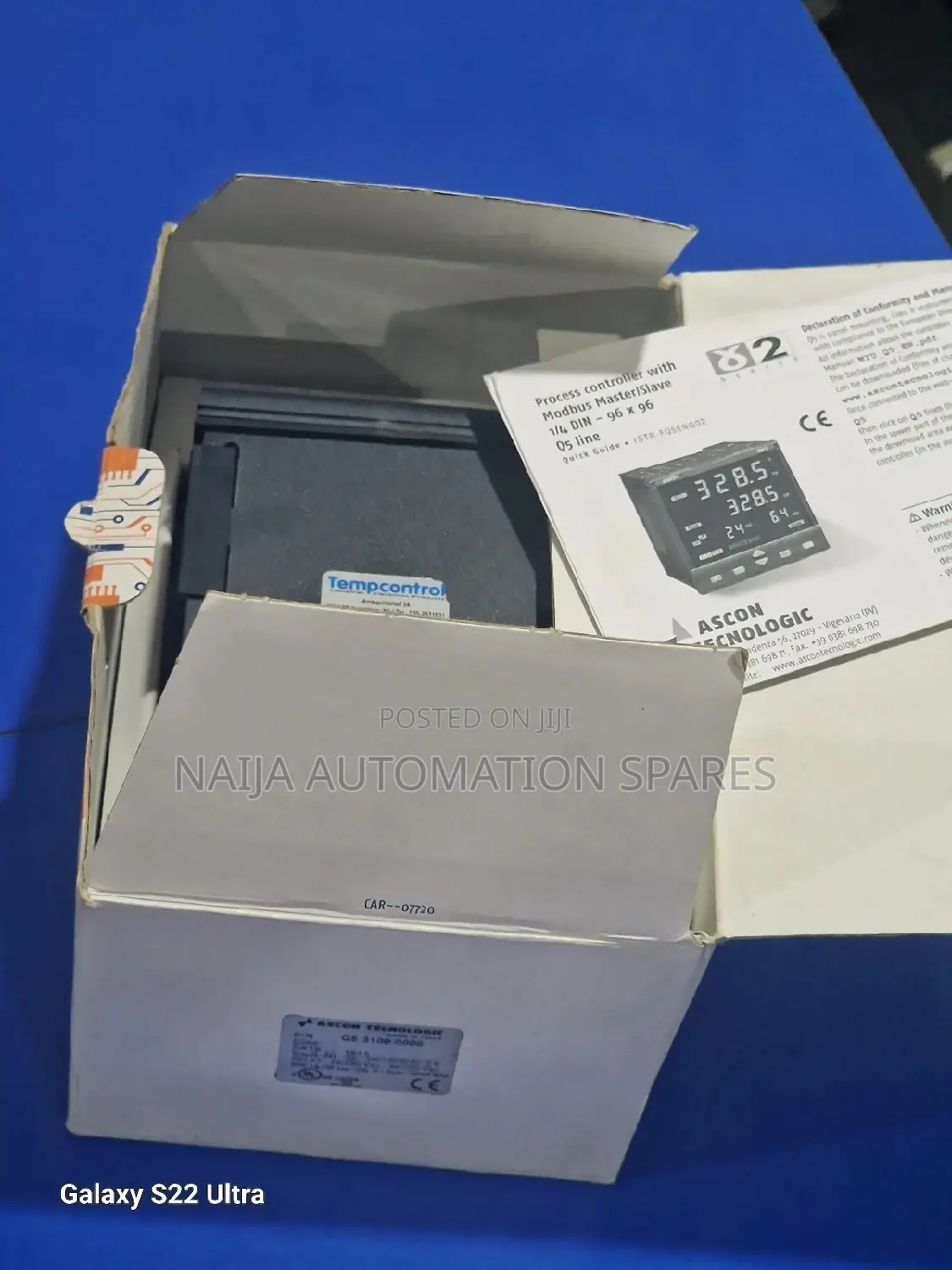

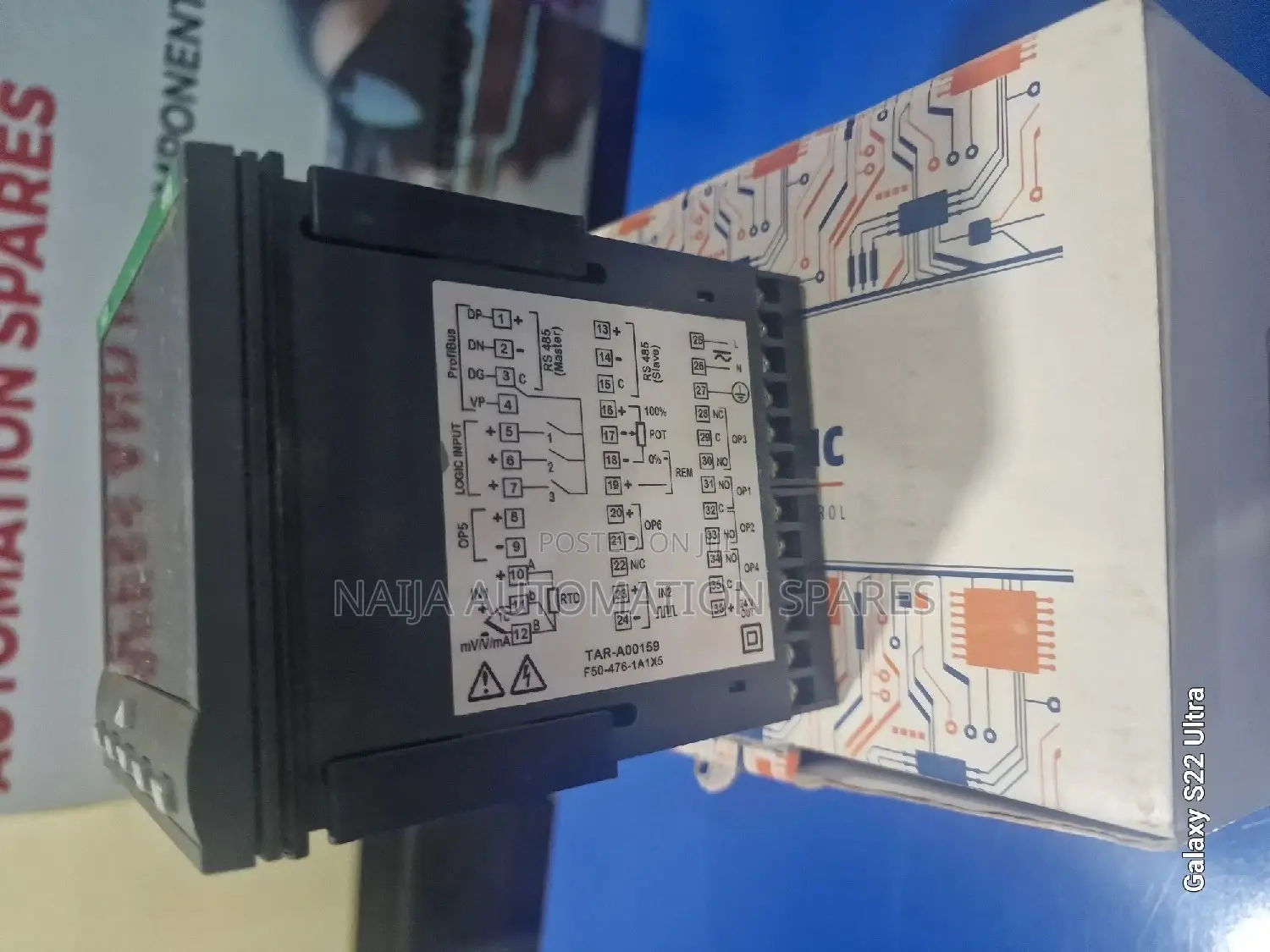

Ascon Process Controller Q5-3100-0000

+1

ASCON

Kaya

Injin rage zafi

Nau'i

Sabo Fil

Yanayi

Adireshin dakin ajiya

Jiha Kaduna • Kaduna / Jiha Kaduna

SHOP 024 JAY JAY SHOPPING MALL AT 3/4 ZAIRE ROAD BARNAWA, KADUNA.

BARNAWA COMPLEX NEAR CHIKEN REPUBLIC

Closed

• Lit - Asa, 09:00-18:00

Ascon - q5-3100-0000 1⁄4 din 3 display controller with 4 relay and analogue / ssr drive outputs, triple logic input, 85-264vac function; controller dimensions: 96 x 96 mm display : 3 displays power supply : 24 vac/vdc, 100... 240 vac inputs : 0/1... 5 v, 0/2... 10 v, 0/4... 20 ma, delta t pt100, pt100, thermocouple, universal number of outputs : 1, 2, 3, 4, 5, 6 outputs: 0/1... 5 v, 0/2... 10 v, 0/4... 20 ma, relay and/or ssr control, servomotor digital inputs : 1, 2, 3 number of programs / segments: 1 program with 16 segments, 1 program with 8 segments, 4 programs with 16 segments interface: profibus, rs 232 modbus slave, rs 485 modbus master, rs 485 modbus slave special functions: mathematical functions, soft start, transmitter power supply control: double action with 2 pid, on/off and pid single or double action, servomotor

Nuna lamba
