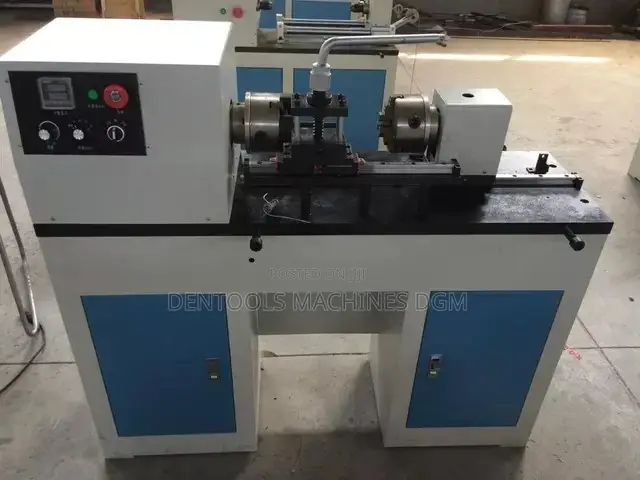

Torsion Testing Machine

+1

Sauran

Nau'i

Sabo Fil

Yanayi

Adireshin dakin ajiya

An tabbatar

4

+1

hotuna

Jiha Lagos • Surulere

Shop 17 Favour Plaza Tools and hardware center, Trade Fair Complex

Closed

• Lit - Asa, 08:00-17:00

Duba a taswira

Wire and Cable Torsion Testing Machine Functional purposes The torsion testing machine is mainly used for measuring diameter Φ20-Φ30mm metal wire in the one-way or two-way torsion under plastic deformation ability, can display the wire surface defects in the experiment. Main features Torsion testing machine has 2 kinds of rotation speed to choose from, choose through the speed button; Maximum length of clamping wire is 500mm;Axial force is added with pulley guide weight, the number of test cycles is displayed by LCD, and the value of test cycles is automatically locked after the specimen is broken. Technical parameters Low test range: Φ20-Φ30mm Parallelism within the full length of the moving guide: < 0.2mm Maximum distance between two chuck: 500mm Torsion speed: 6, 30 r/min Jaw hardness: 55-65hrc Test machine working noise: < 70dB Power supply: AC380V 10%, 50Hz

Nuna lamba
