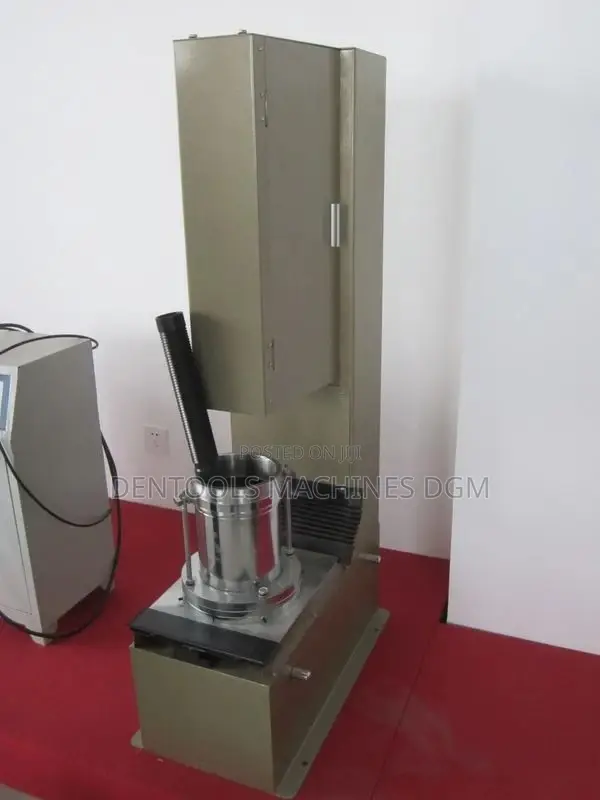

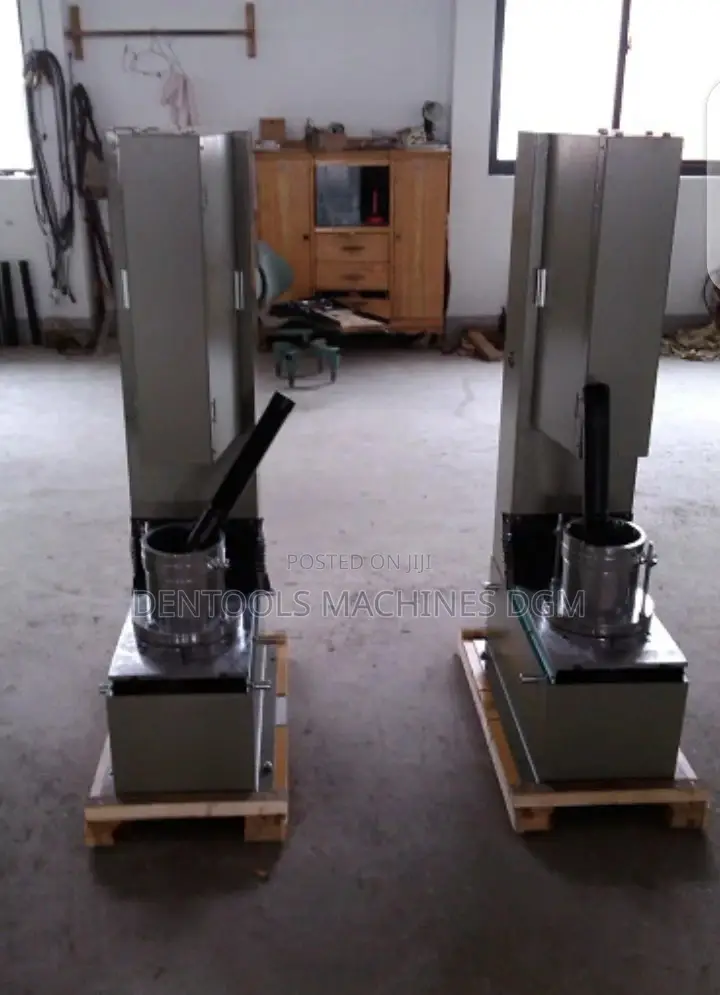

Automatic Proctor / CBR Compactor

+1

4

Sauran

Nau'i

Sabo Fil

Yanayi

Adireshin dakin ajiya

An tabbatar

4

+1

hotuna

Jiha Lagos • Surulere

Shop 17 Favour Plaza Tools and hardware center, Trade Fair Complex

Open

• Lit - Asa, 08:00-17:00

Duba a taswira

Standards complaince: jtg e40-2007/t0131-93, t0134-93, t0135-93 description the automatic proctor compactor is a specialized equipment to perform soil compaction test, it can do standard and modified compaction test. The soil compaction test is used to determine the max dry density and matched best moisture content of compacted road-base soil. Technical specifications 1. Heavy compaction test: hammer weight 4.5kg, drop height 450mm 2 light compaction test: hammer weight 2.5kg, drop height 300mm 3. Applicable test mould diameter: φ100mm, φ152mm 4 hammerhead diameter: φ50mm 5. Hammer frequency: 30 beats / min 6. Motor: 370w 380v 1400 rev / min 7. Overall dimensions: 650 x 400 x 1320mm (l x w x h) 8. Weight: 130kg note: each compactor is equipped φ152 and φ100 test mould each set, each one another φ152 and φ100 test mould.
